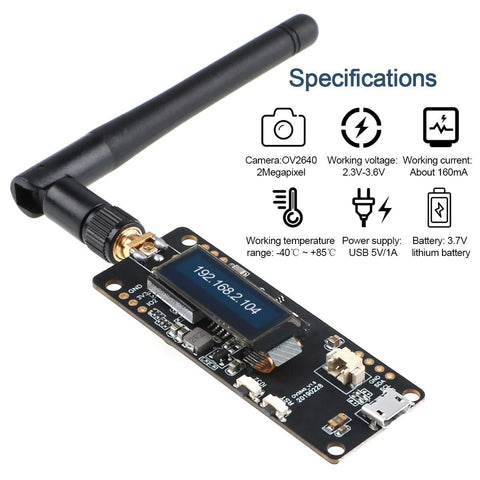

MakerFocus ESP32 Camera Fish-Eye Lens WiFi Bluetooth Camera Board OV2640 with 0.91 OLED for Arduino


  • $31.99
    Unit price per
Shipping calculated at checkout.

Chipset: ESPRESSIF-ESP32-PCIO-D4 240MHz X tensa single-/dual-core 32-bit LX6 microprocessor
FLASH: QSPI flash/SRAM, up to 4 x 16 MB
KEY: Reset, IO32
Display: 0.91 SSD1306
Power indicator lamp: Red
USB to TTL: CP2104
Camera: OV2640  2Megapixel
Steering engine: Analog servo
On-board clock: 40MHz crystal oscillator
Working voltage: 2.3V-3.6V
Working current: About 160mA
Working temperature range: -40℃ ~ +85℃
Size: 64.57mm*23.98mm
Power supply: USB 5V/1A
Charging current: 1A
Battery: 3.7V lithium battery

WIFI Description:
Protocol: 802.11 b/g/n/e/i (802.11n, speed up to150Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval
Frequency range: 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit power: 22dBm
Communication distance: 300m
Bluetooth Description:
Protocol: meet bluetooth v4.2BR/EDR and BLE standard
radio frequency: with -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
audio frequency: CVSD&SBC audio frequency
Software Description:
Wifi Mode: Station/SoftAP/SoftAP+Station/P2P
Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type: AES/RSA/ECC/SHA
Firmware upgrade: UART download/OTA (Through network/host to download and write firmware)
Software Development: Support cloud server development /SDK for user firmware development
Networking protocol: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
User Configuration: AT + Instruction set, cloud server, android/iOSapp


Packing List:

1 * ESP32 Camera Module
1 * Wi-Fi Antenna
1 * Power Line
