3pcs NRF24L01+PA+LNA Wireless Transceiver RF Transceiver Module

MakerFocus

  • $17.99
    Unit price per
Shipping calculated at checkout.


3pcs NRF24L01+PA+LNA Wireless Transceiver RF Transceiver Module

3pcs NRF24L01+PA+LNA Wireless Transceiver RF Transceiver Module 2.4G 1100m with Antenna and 3pcs NRF24L01+ Breakout Adapter with 3.3V Regulator on-board for Ar duino

Description:
This is an easy-to-use combination product for customers.

Specification:

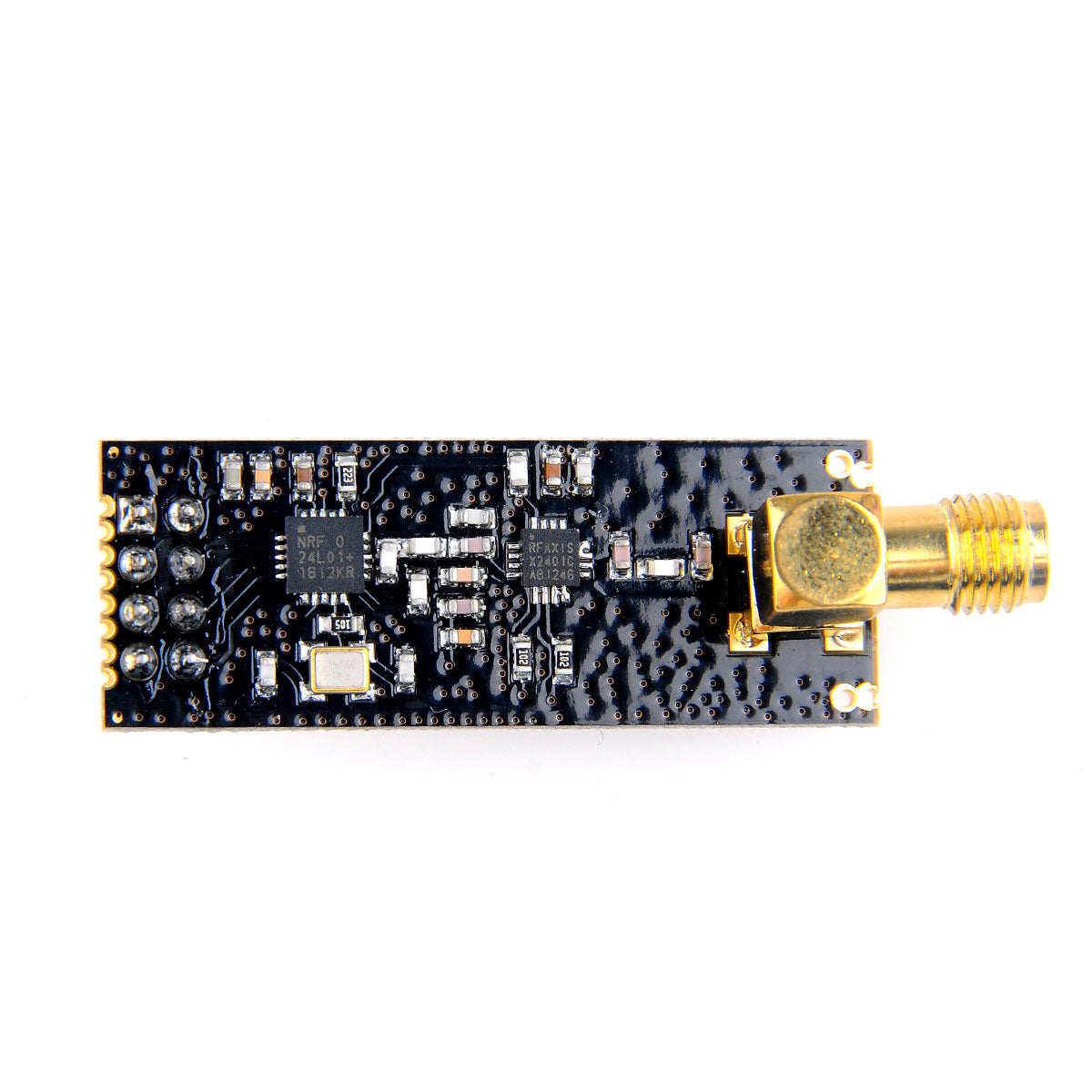

NRF24L01+PA+LNA Wireless Transceiver RF Transceiver Module:
PA Gain:20dB
LNA Gain:10dB
Frequence: 2.4GHz~2.5GHz
Range: 800+ meters line of sight
Multi-frequency: 125 frequency
Transmit Operating Current(Max):115mA
Receiving Operating Current(Max):45mA
Board dimensions: 40.7mm x 15.5mm x 12.2mm
Operating Voltage: 3 ~ 3.6V (Recommended 3.3V)

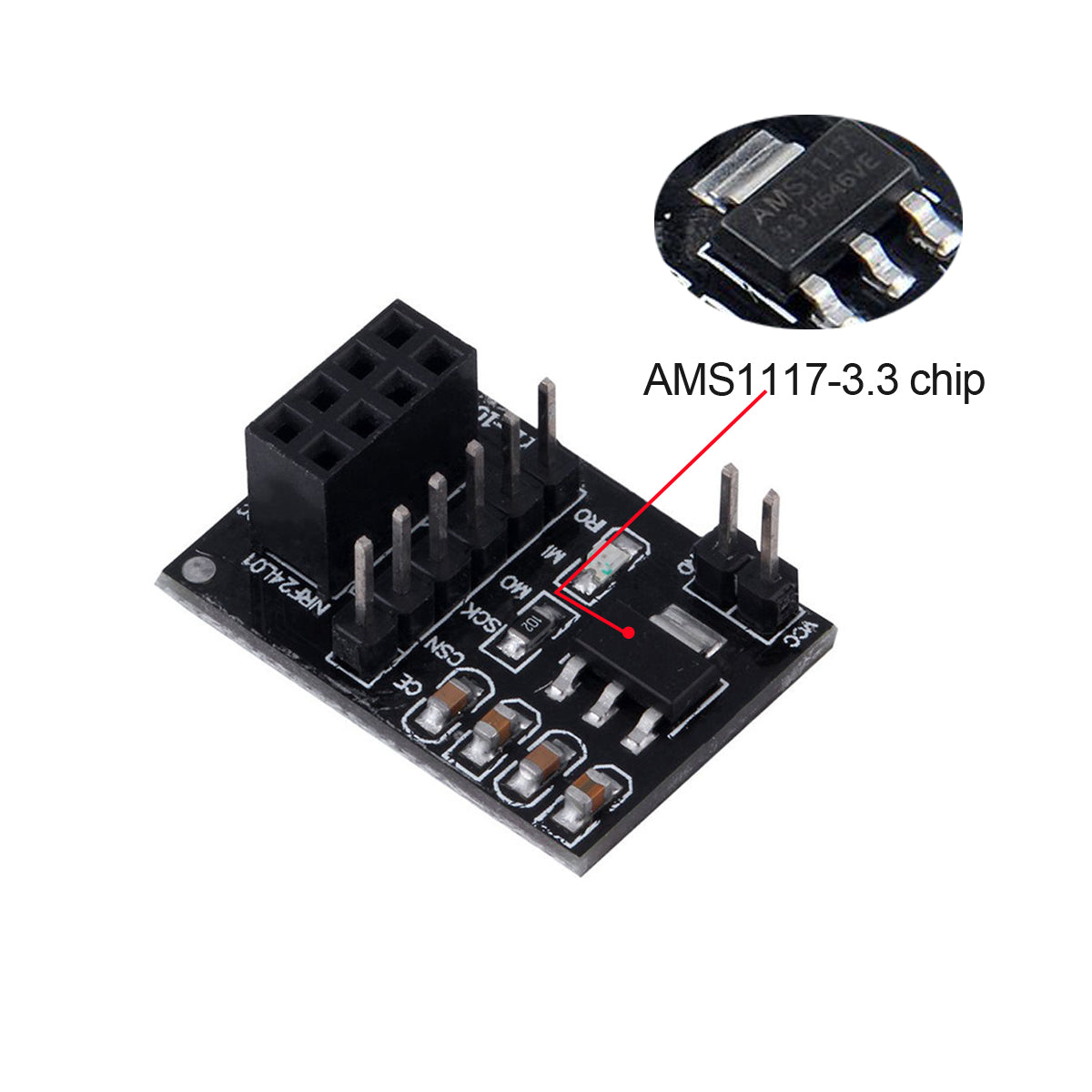

NRF24L01+ Breakout Adapter:
This is a simple socket board which is for NRF24L01 Wireless module.
Small power on SMD LED indicator
Voltage Regulator Input Voltage (connected to VCC): 4.8V to 12V
Voltage Regulator Input Voltage Max: 15V (we recommend staying below 12V)
Pin Quantity: 8Pin
On-board: AMS1117-3.3 chip.
Compatible: Ar duino and Raspberry Pi

Tips: Wireless module operating voltage is generally 3.3v, while the ordinary 51 microcontroller 5v, this module is easy to shop wireless module with 51 single system board used in conjunction.

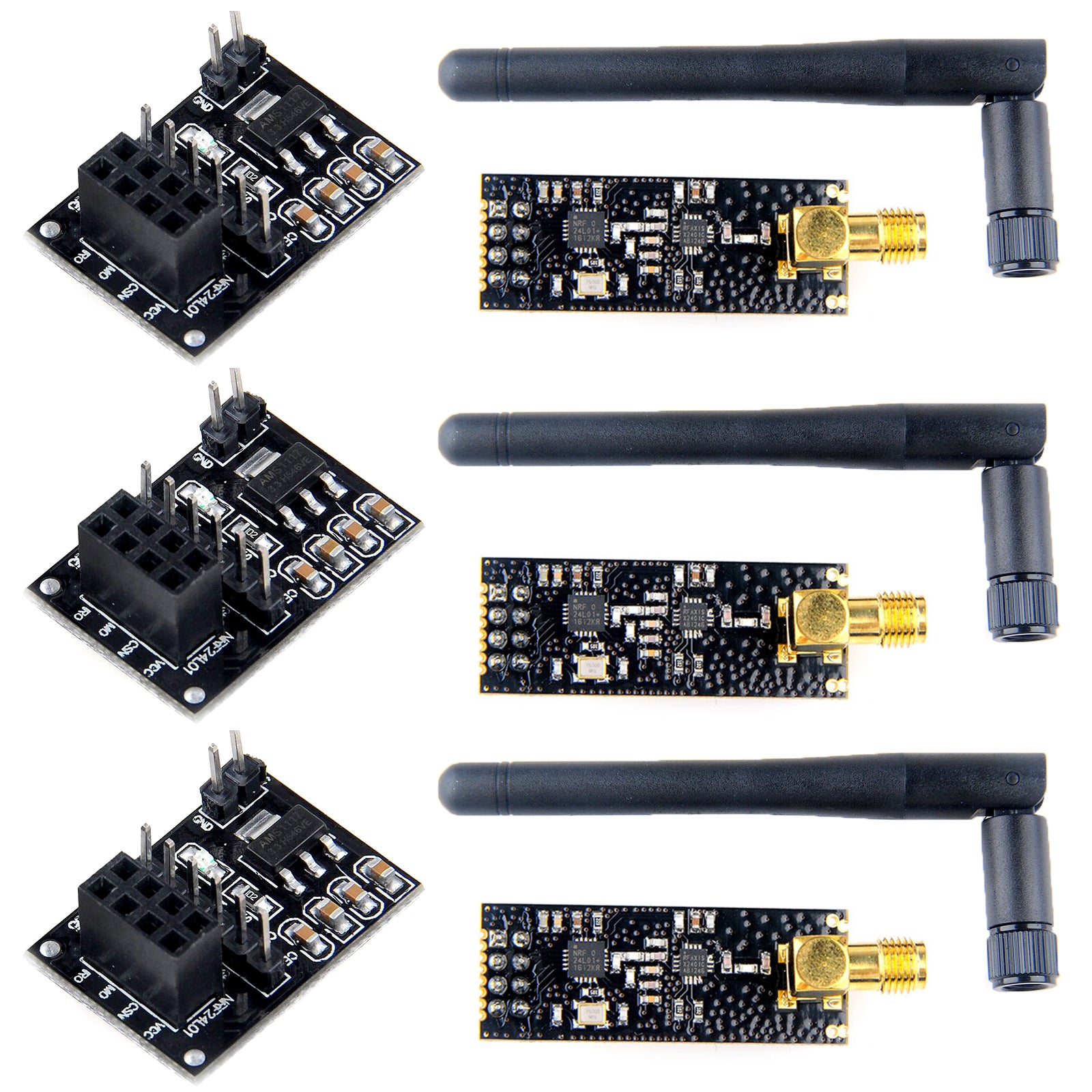

Package Included:
3 * NRF24L01+PA+LNA Wireless Transceiver RF Transceiver Module

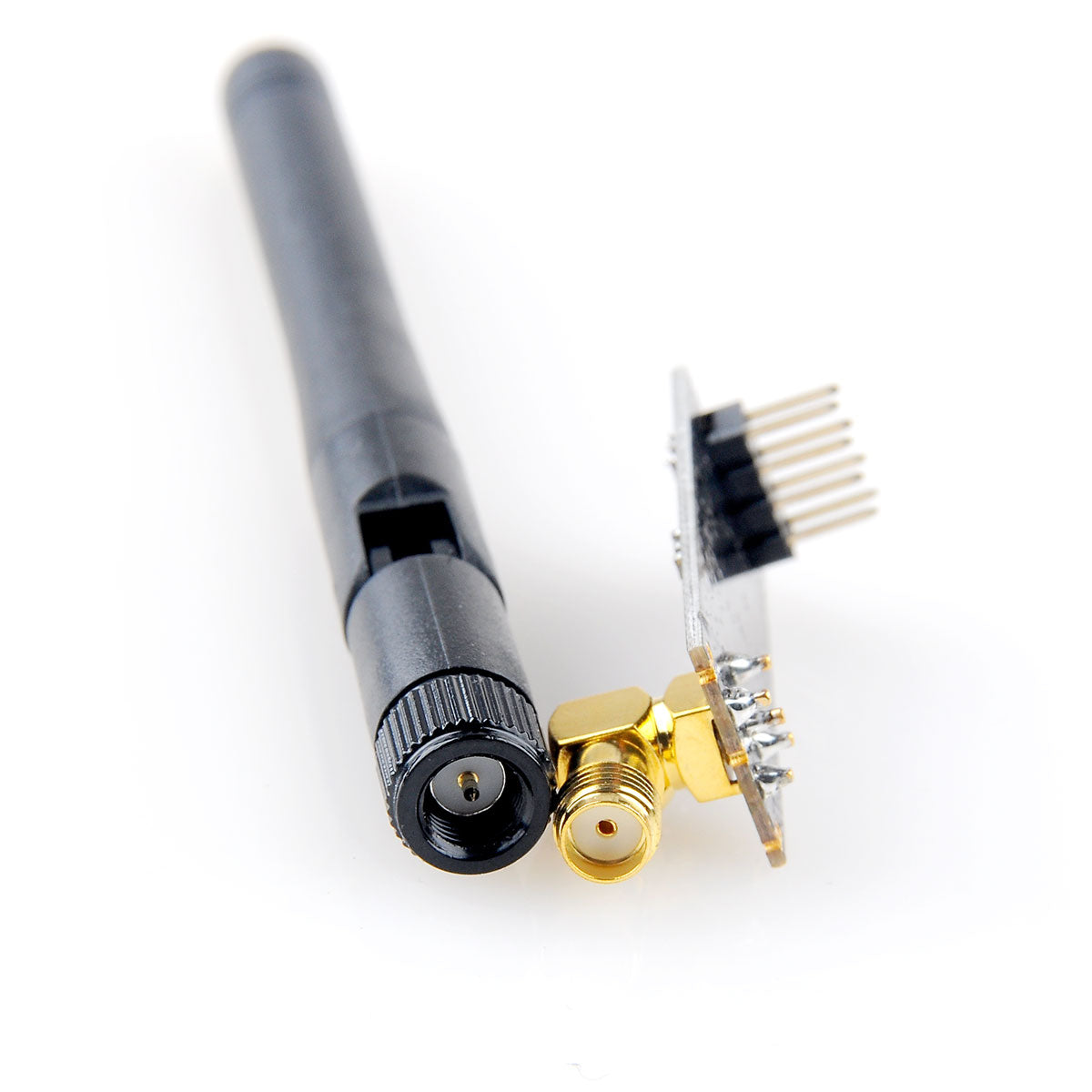

3 * SMA Antenna 2.4G 1100m
3 * NRF24L01+ Breakout Adapter
