Regular price $10.65 now $10.15 Unit price  per

Description:
M5Stack Servo Module is made to implement the bestest, easiest way to drive Servo motors. This M5 module will make quick work of your next Servo project! It is able to drive mutiple Servo motors, up to 12 channals. We also added an DC input for power supplement. Through M-BUS the DC in can automatically power the M5 core at top.

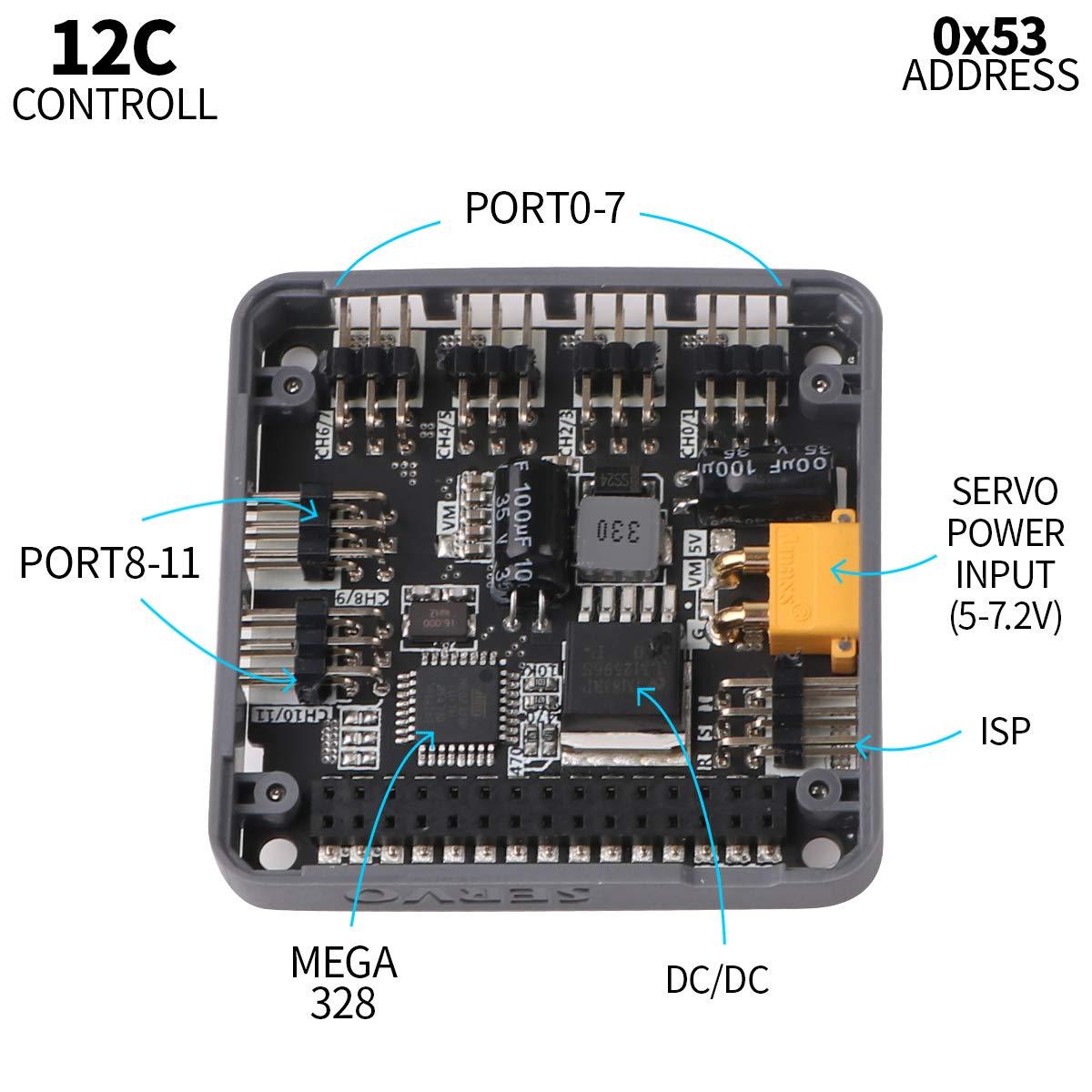

Servo is powered by MEGA328 communicate via IIC(0x53).

Features:
12x servo ports

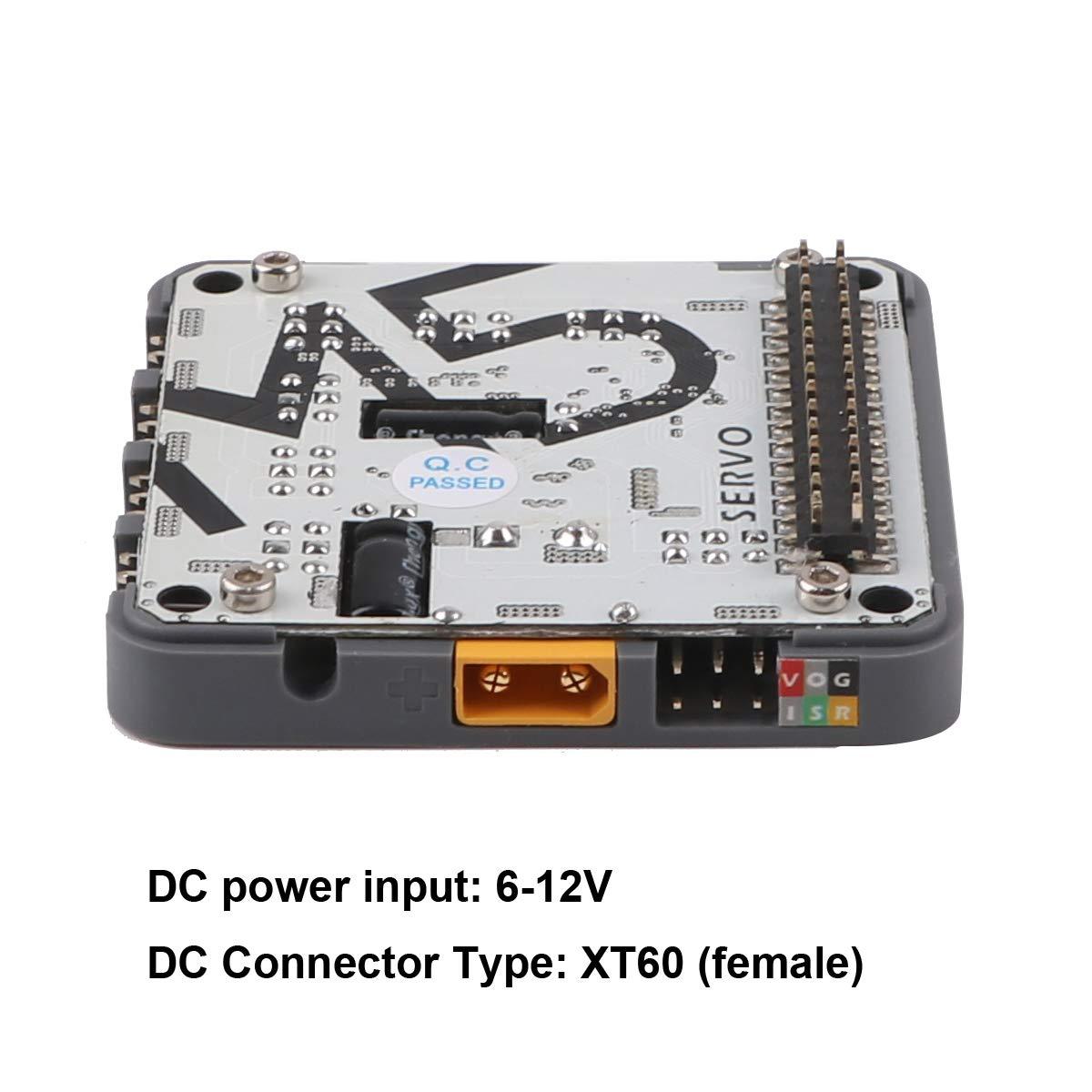

DC power input: 6-12V
DC Connector Type: XT60 (female)

Applications:
Humanoid robot
Bionic multi-joint robot
Triaxial Camera Cradle



Packing List:

1 * M5Stack Servo Module
1 * Common Male to XT60 Male DC convertor
