M5Stack M5StickC ESP32 Mini IoT Development Board Official with Color 0.96 inch TFT Color Screen

  • $14.94
    Unit price per
  • Save $5.05


Description:

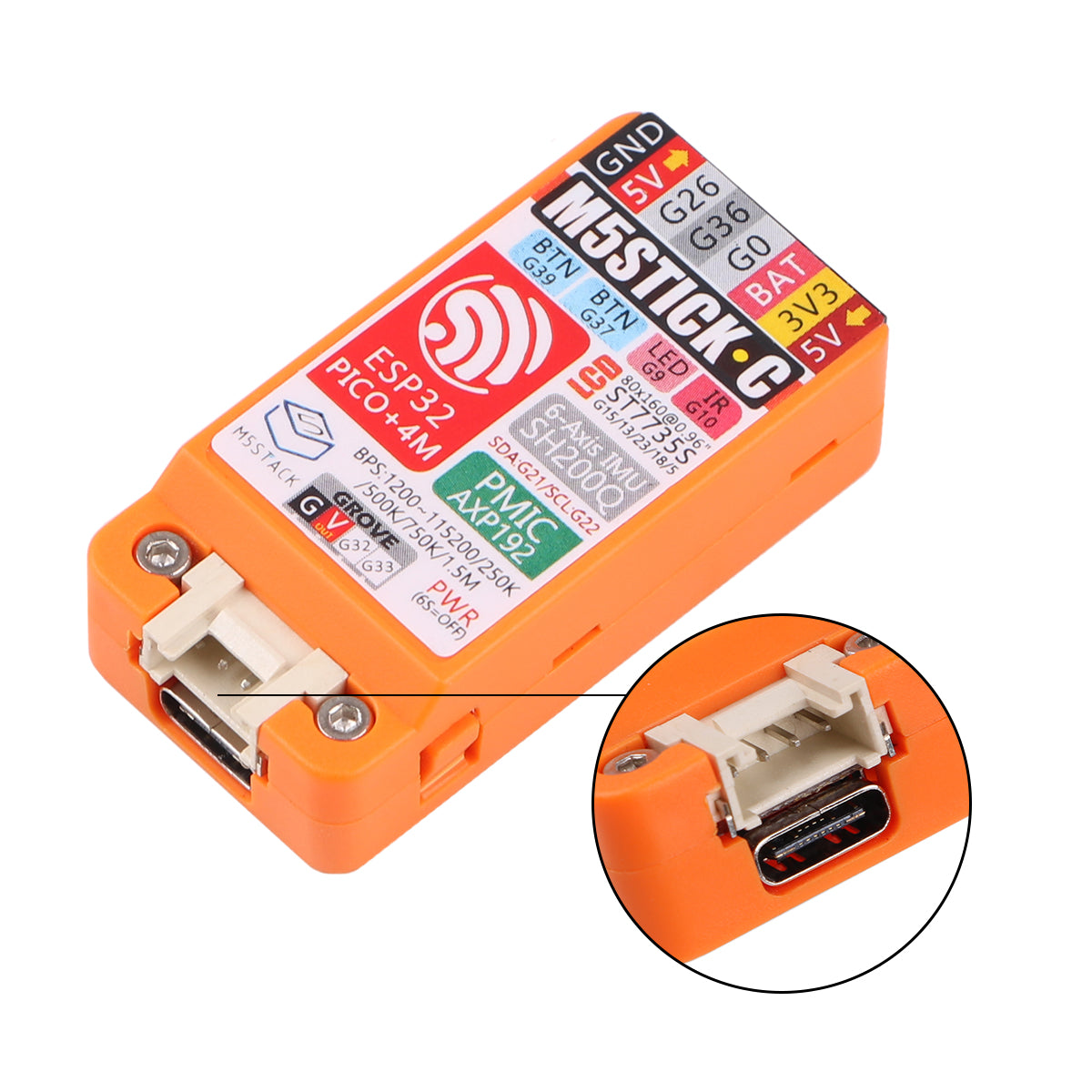

M5StickC is a ESP32 development board with 0.96 inch TFT color screen (80 * 160 resolution), Red LED, button, Microphone, IR transmitter, 6-axis IMU (SH200Q) and 80mAH battery. The ESP32 module ESP32-Pico in M5StickC also has a built-in 4MB flash. If the M5StickC is equipped with watch-base and watch-belt, you can wear it on your wrist.



  • ★User Guide: https://docs.m5stack.com//en/quick_start/m5stickc/m5stickc_quick_start; ★Video: https://www.youtube.com/channel/UCozgFVglWYQXbvTmGyS739w; ★Example: https://docs.m5stack.com//en/core/m5stickc?id=example; ★Arduino Routine: https://github.com/m5stack/M5StickC/tree/master/examples/Basics/FactoryTest.
  • Datasheet: ★ESP32-PICO: https://github.com/m5stack/M5-Schematic/blob/master/Core/esp32-pico-d4_datasheet_en.pdf; ★ST7735S: https://github.com/m5stack/M5-Schematic/blob/master/Core/ST7735S_v1.1.pdf; ★BM8563: http://www.belling.com.cn/media/file_object/bel_product/BM8563/datasheet/BM8563_V1.1_cn.pdf
  • Datasheet: ★SH200Q: https://github.com/m5stack/M5-Schematic/blob/master/Core/SH200Q.pdf; ★AXP192: https://github.com/m5stack/M5-Schematic/blob/master/Core/AXP192%20Datasheet%20v1.13_cn.pdf; ★SPM1423: https://pdf1.alldatasheet.com/datasheet-pdf/view/546596/KNOWLES/SPM1423HM4H-B.html
  • Blockly Module for DIY: If the M5StickC is equipped with watch-base and watch-belt, you can wear it on your wrist. ★If you need to buy a strap accessory, please buy from here: https://www.amazon.com/dp/B07STVP29Y/
  • Download EasyLoader: ★https://m5stack.oss-cn-shenzhen.aliyuncs.com/EasyLoader/M5Core/M5StickC/EasyLoader_M5StickC_FactoryTest.exe. 1.EasyLoader is a simple and fast program burner, and each product page has a product-related case program for EasyLoader.2.After downloading the software, double-click to run the application, connect the M5 device to the computer via the data cable, select the port parameters, and click “Burn” to start burning.

Power on / off:
Power on: Press the reset button for at least 2 seconds
Shutdown: Press the reset button for at least 6 seconds

Note:
Baudrate supported by M5StickC: 1200 ~115200, 250K, 500K, 750K, 1500K
Only orange case of M5StickC for sale.

Feature:
Programming Support: Arduino, UIFlow(Blocky, MicroPython)

Datasheet:
ESP32-PICO: https://github.com/m5stack/M5-Schematic/blob/master/Core/esp32-pico-d4_datasheet_en.pdf;
ST7735S: https://github.com/m5stack/M5-Schematic/blob/master/Core/ST7735S_v1.1.pdf;
BM8563: http://www.belling.com.cn/media/file_object/bel_product/BM8563/datasheet/BM8563_V1.1_cn.pdf;
SH200Q: https://github.com/m5stack/M5-Schematic/blob/master/Core/SH200Q.pdf;
AXP192:
https://github.com/m5stack/M5-Schematic/blob/master/Core/AXP192%20Datasheet%20v1.13_cn.pdf;
SPM1423: https://pdf1.alldatasheet.com/datasheet-pdf/view/546596/KNOWLES/SPM1423HM4H-B.html



Packing List:

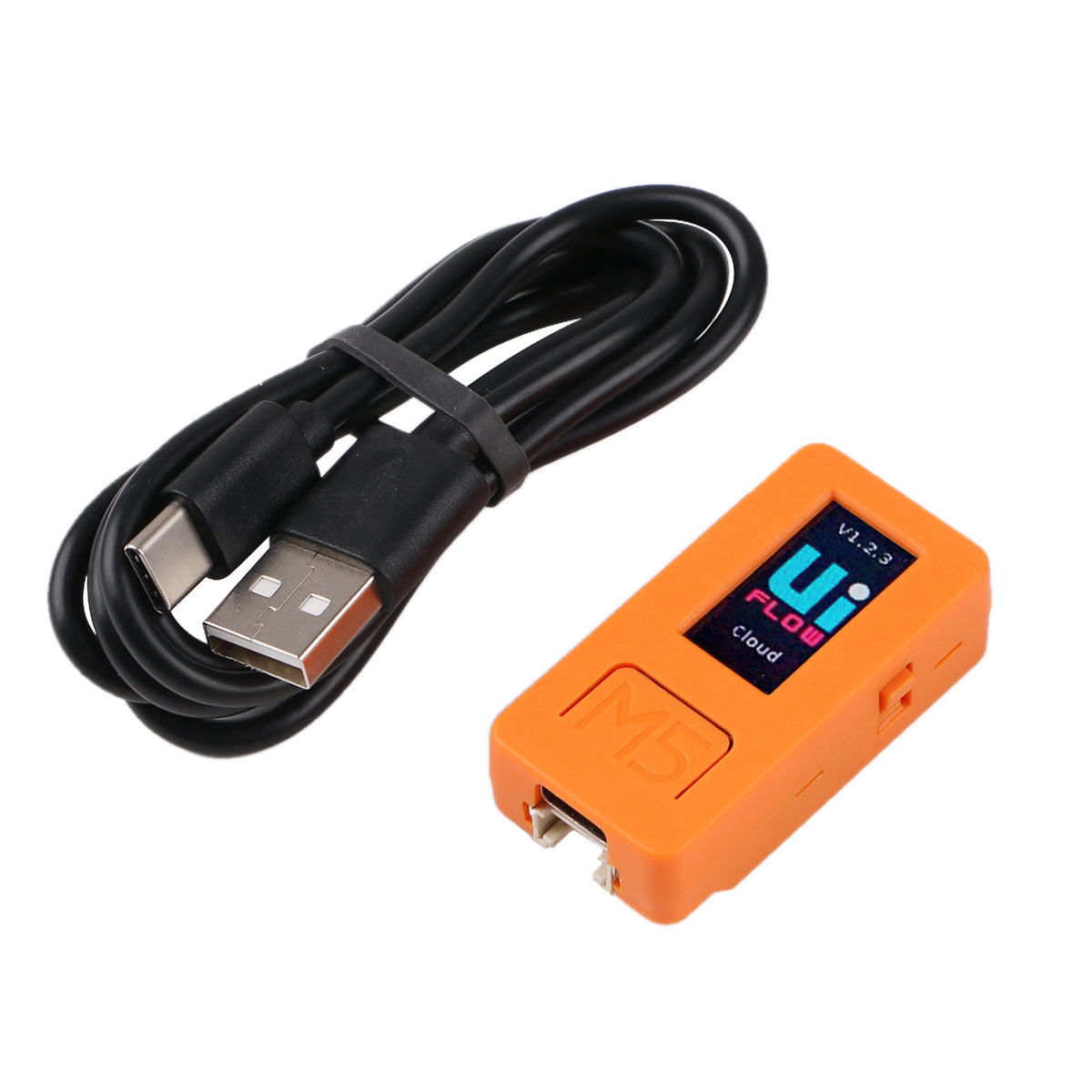

1 * M5Stack ESP32 Mini IoT Development Board M5StickC (Built in 80mAh Battery)
1 * USB cable
