[ Portable Power ] - TailBat is an external battery accessory designed for ATOM Echo. If the TailBat module is inserted into the M5ATOM, it can directly supply power to the ATOM Echo, enabling the ATOM Echo to be used in mobile applications.
[ Easy to Use ] - Plug and play, Click to turn on the power, double-click to turn off the power. Operation Video: https://drive.google.com/file/d/17He5vOwMRca9_KqFKNIjxNjJCHoFdmRe/view?usp=sharing
[ LED Indicator ] - The TailBat contains a 190mah battery and features a physical button. It is controlled by the power management chip IP5303. When the power is turned on, the red led will turn on, the led flashes when charging, and is always on when fully charged.
[ Application ] - Compatible with ATOM Echo, M5Stick, M5StickC, M5StickV, M5Camera
[ Operation Notice ] - This built-in battery can only be charged through the USB typeC interface, not through the grove interface.

Product description

M5Stack ATOM TailBat

What is this?

TailBat is an external battery accessory designed for ATOM Echo. If the TailBat module is inserted into the M5ATOM, it can directly supply power to the ATOM Echo, enabling the ATOM Echo to be used in mobile applications.

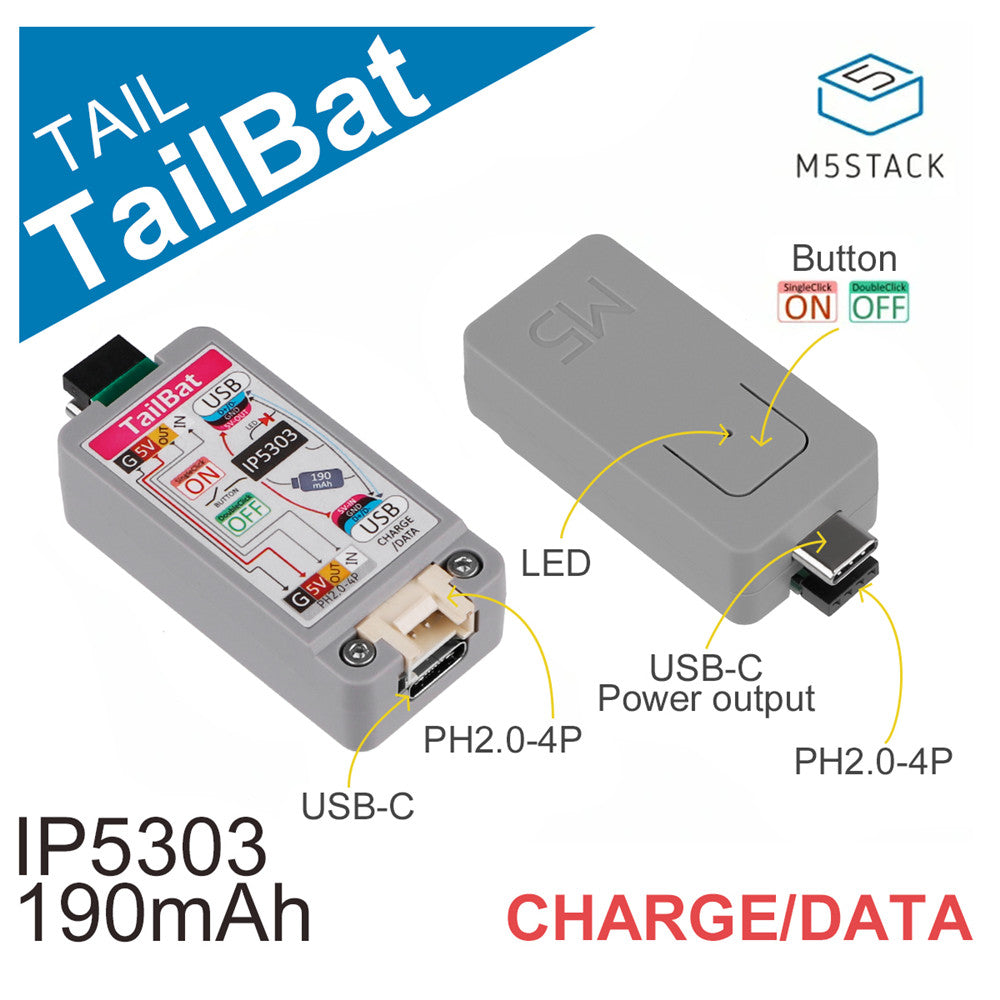

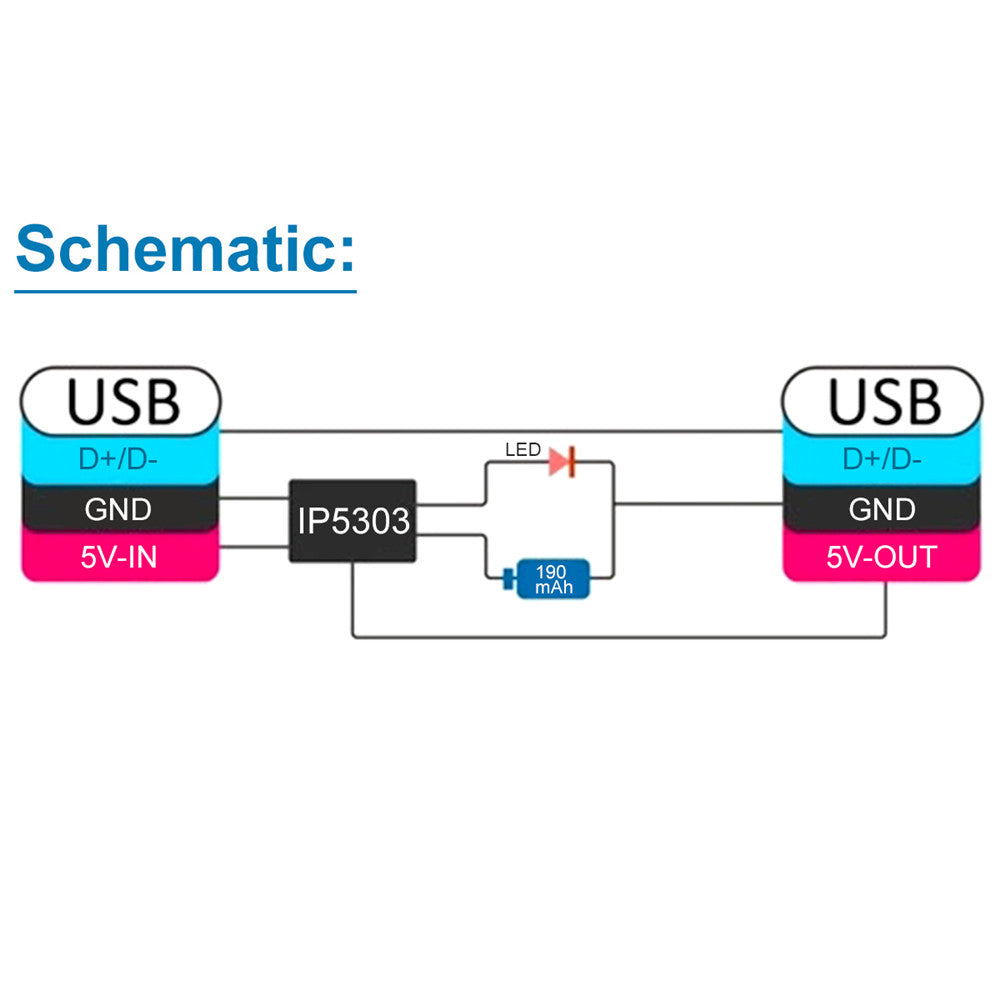

The TailBat contains a 190mah battery and features a physical button. It is controlled by the power management chip IP5303. When the power is turned on, the red led will turn on, the led flashes when charging, and is always on when fully charged.

Features:

Adapted for ATOM Matrix/ATOM Lite form factor
Plug and play
Built in rechargeable lithium battery
LED indicator

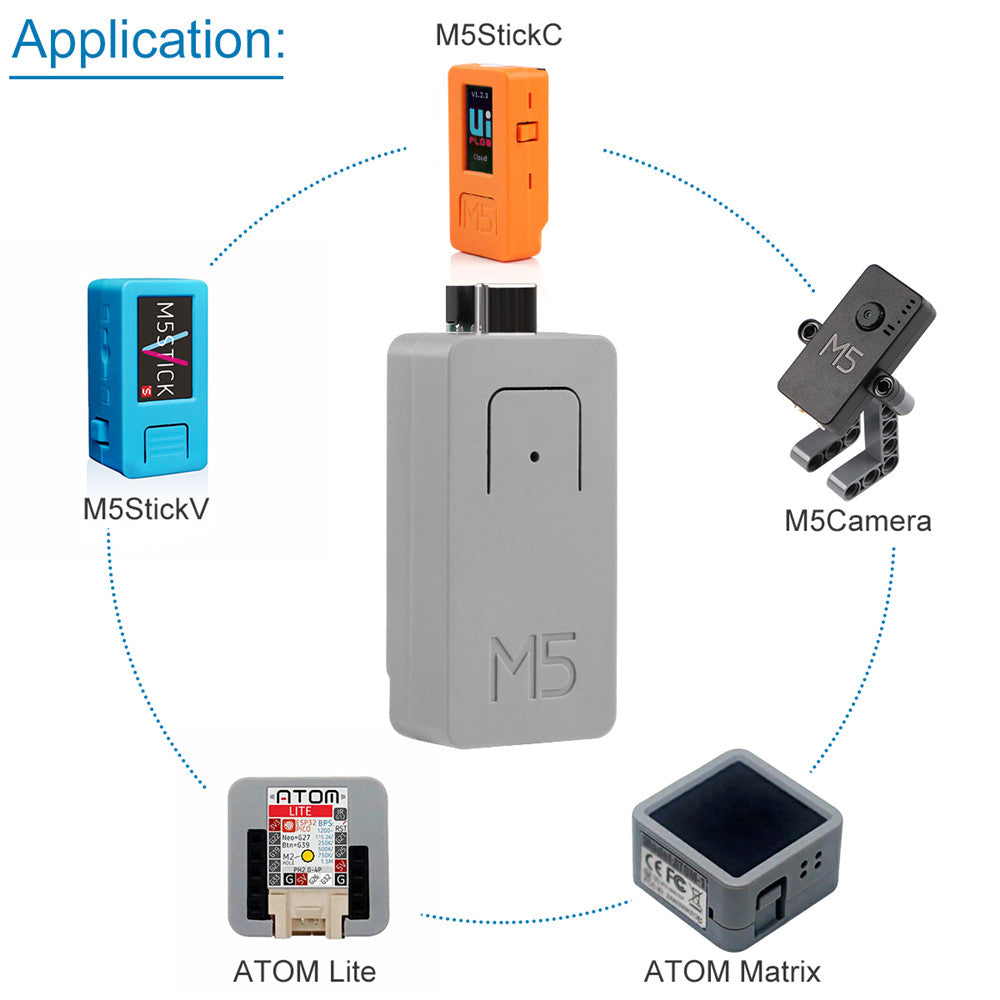

Compatible with M5Stick/M5StickC/M5StickV/M5Camera

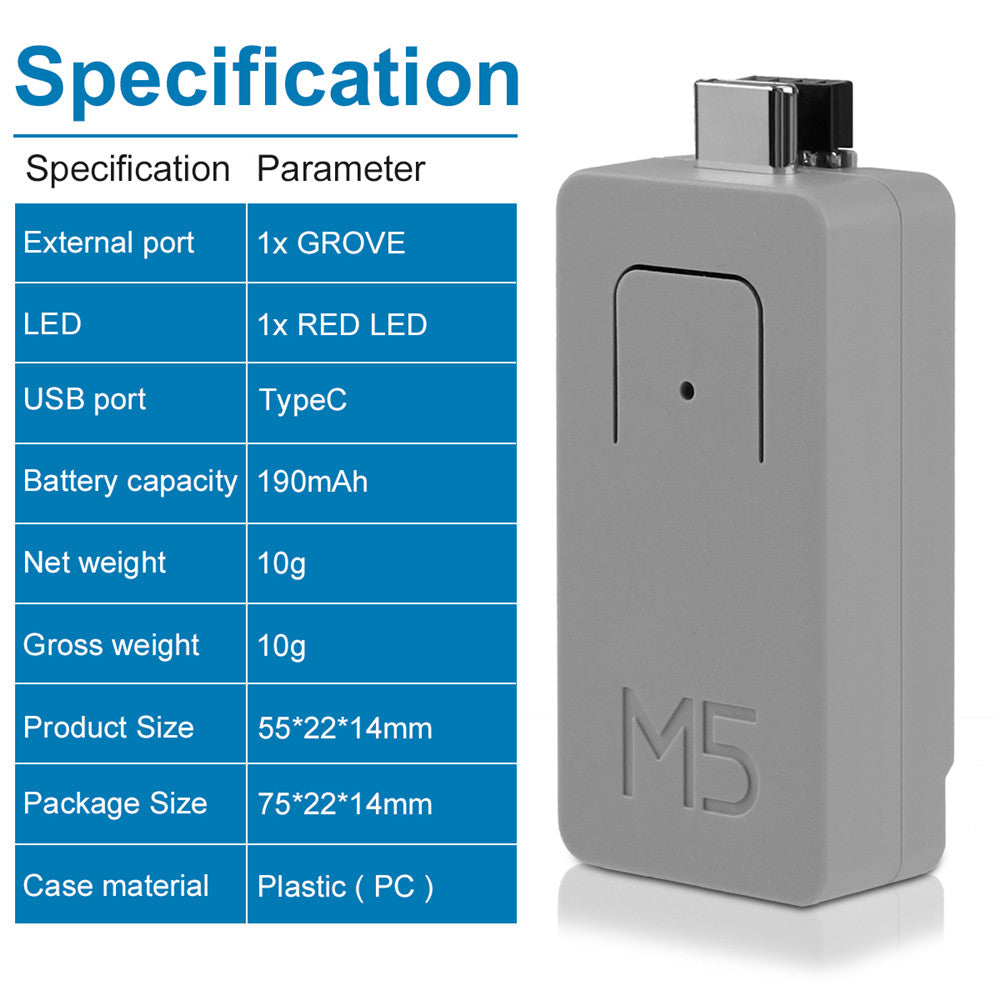

Specification:

External port: 1x GROVE
LED: 1x RED LED
USB port: TypeC
Battery capacity: 190mAh

Input Voltage: 5V
Input Current: 500mA
Operation Method:

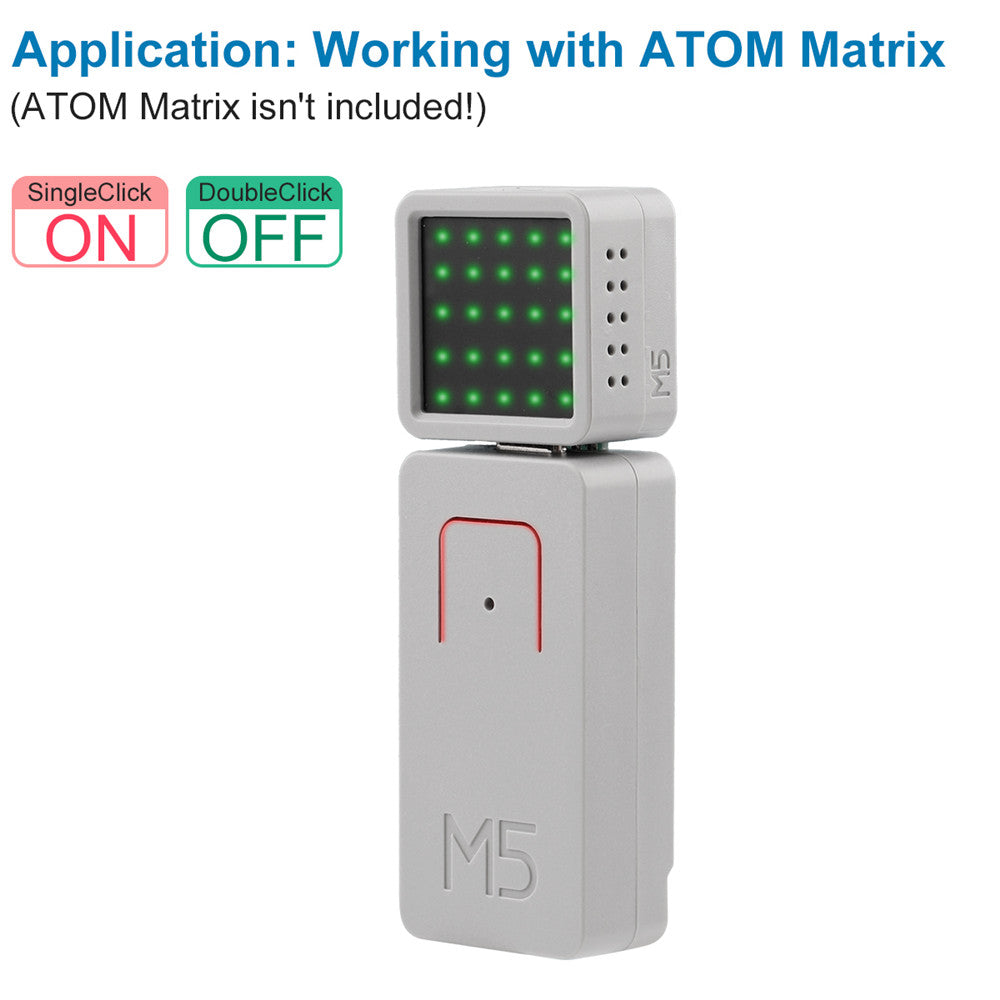

Same as that of M5Stack Core: Click to turn on the power, double-click to turn off the power. Since the TailBat has been designed simply to add battery power, it will not affect the original GROVE Connection mode and USB functionality. This built-in battery can only be charged through the USB typeC interface, not through the grove interface.

Application: ATOM Echo portable power
Package Including:
1 * ATOM TailBat External Rechargeable Lithium Battery
