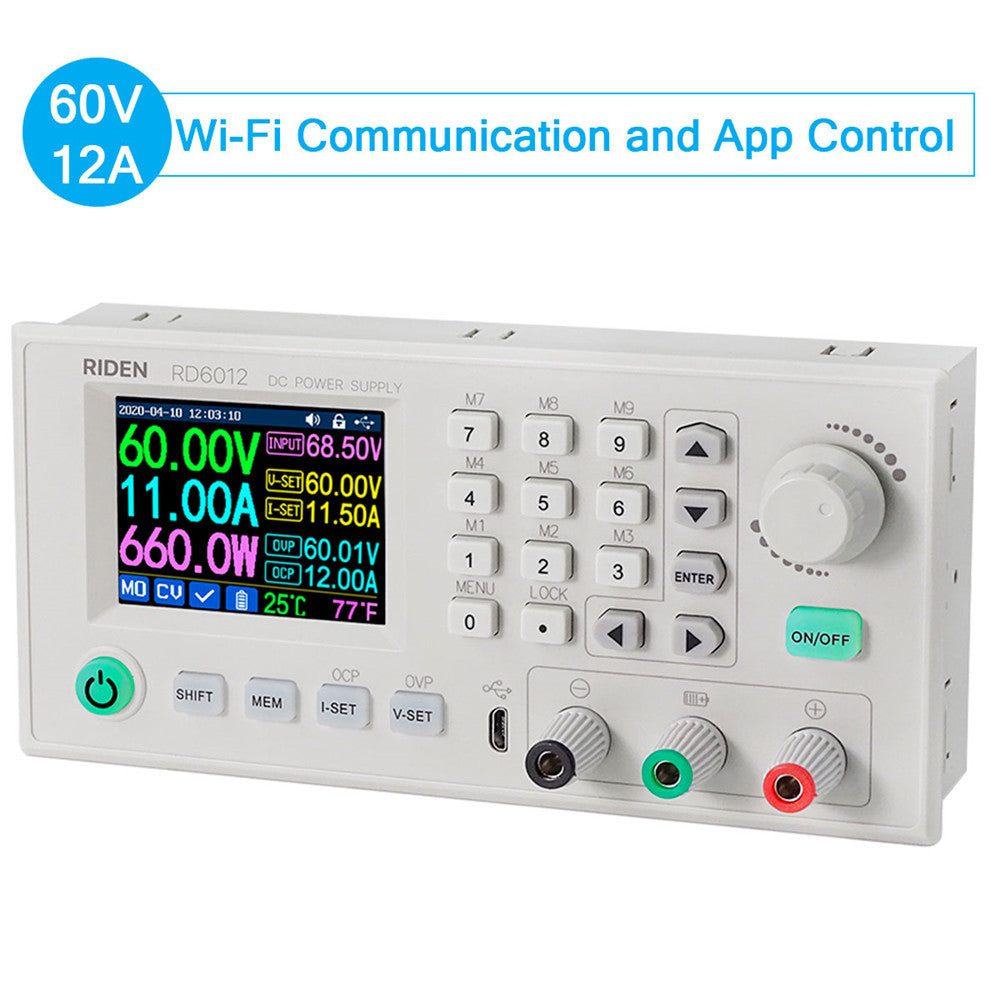

DC Power Supply Variable Adjustable Lab Bench Power Supply Buck 4-Digital LCD Display 30V 60V 12A

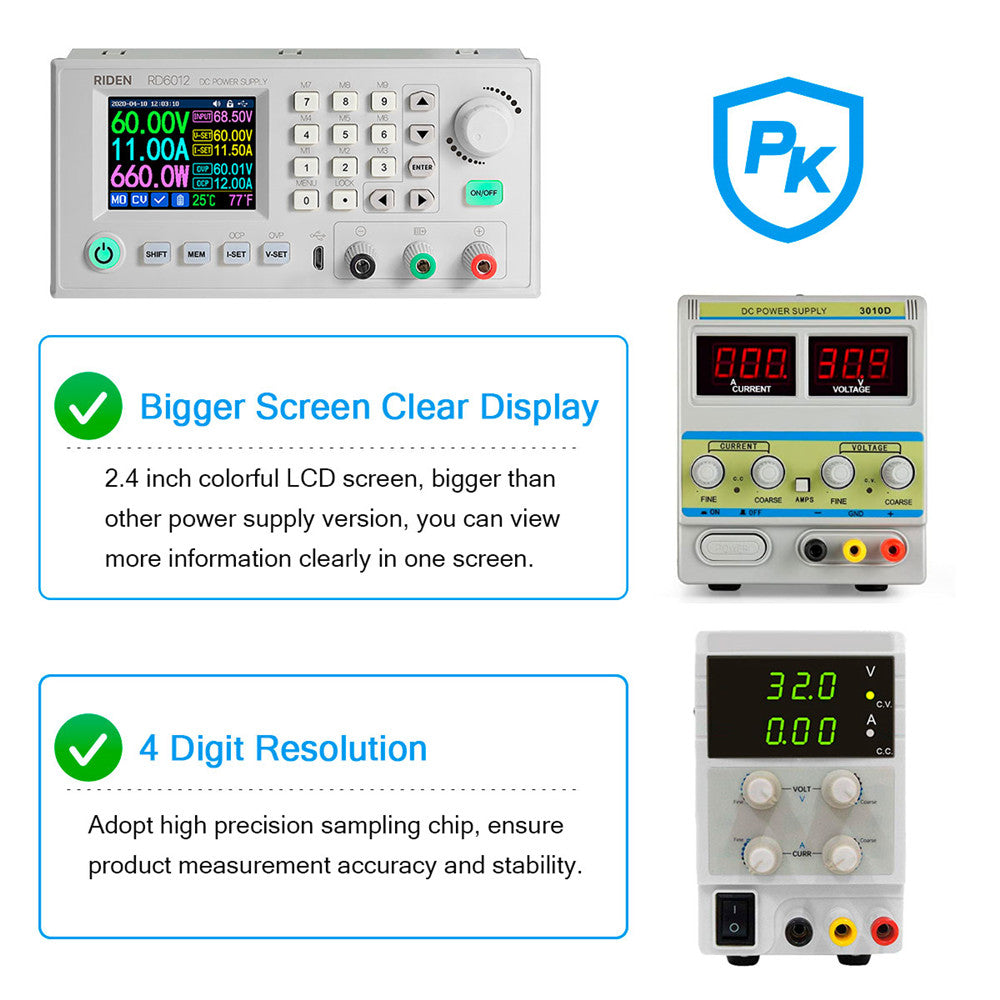

[Bigger Screen Clearer Display]: 2.4 inch colorful LCD screen, bigger than other power supply version, you can view more information clearly in one screen. Widely used in home, labs, and schools, communication equipments maintenance etc.

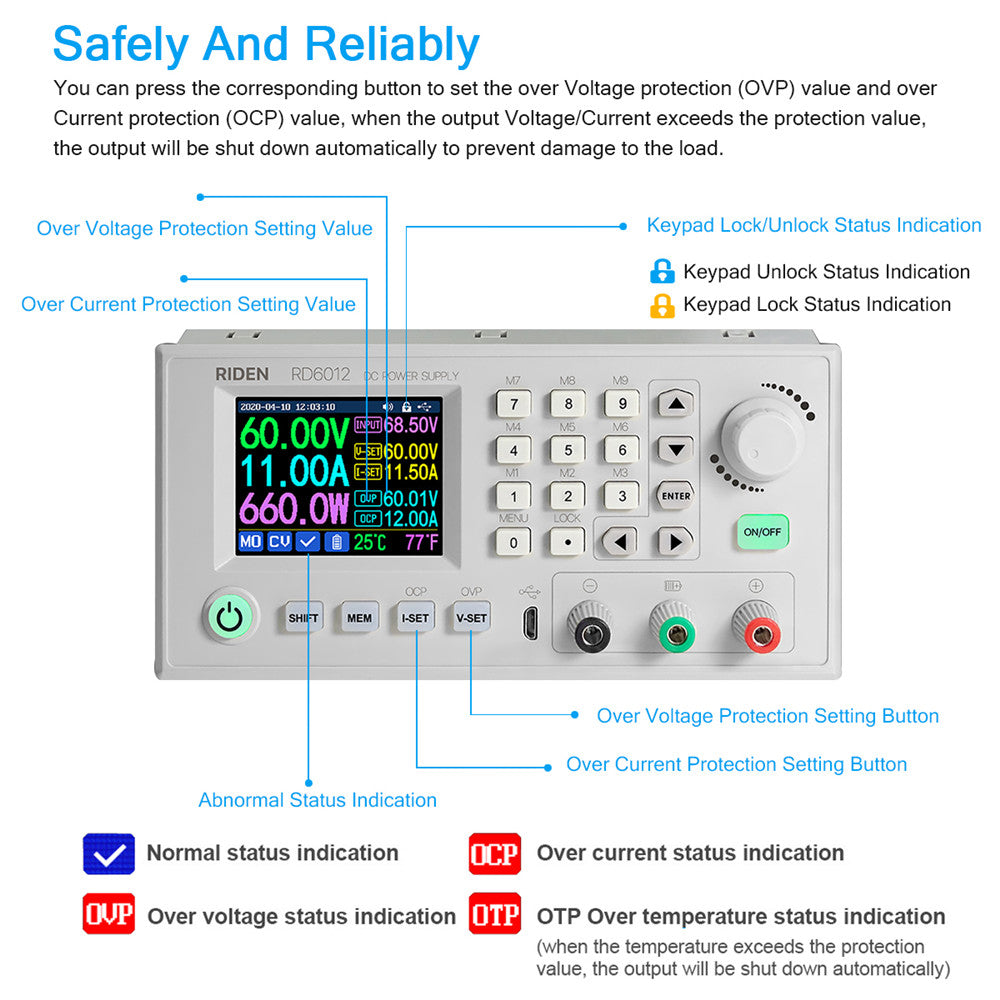

[Multiple Protections]: Featuring a high accuracy, reliability and perfect limit current protection, thermal protection, voltage overload protection. When the output voltage or current exceeds the protection value, the output will be shut down automatically to prevent damage to the load.

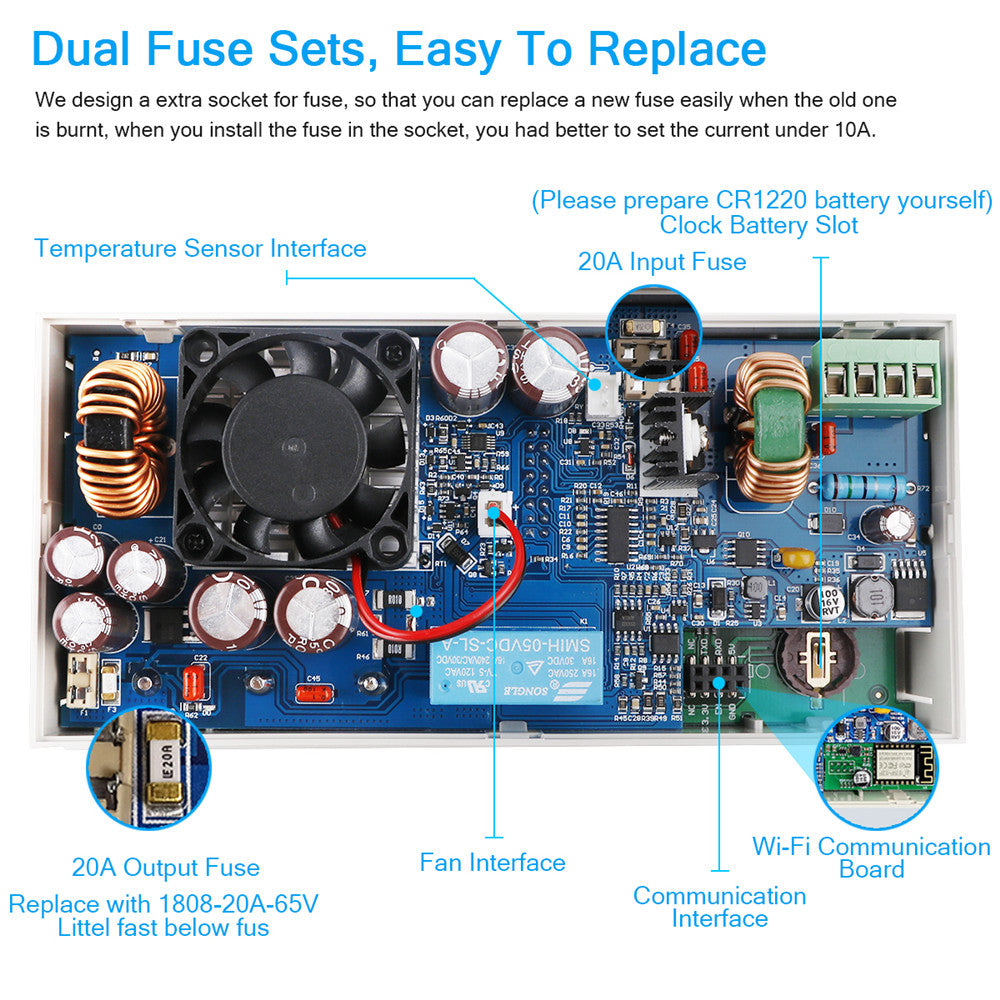

[Intelligent Temperature Control]: Its built-in cooling fan with thermo-sensor will keep the power supply cool, noise reduced and life prolonged. Adopts removable snap type fuse, convenient to replace a new fuse, make it easy to repair.

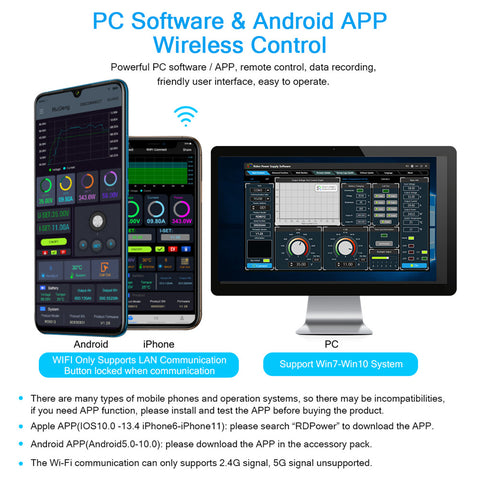

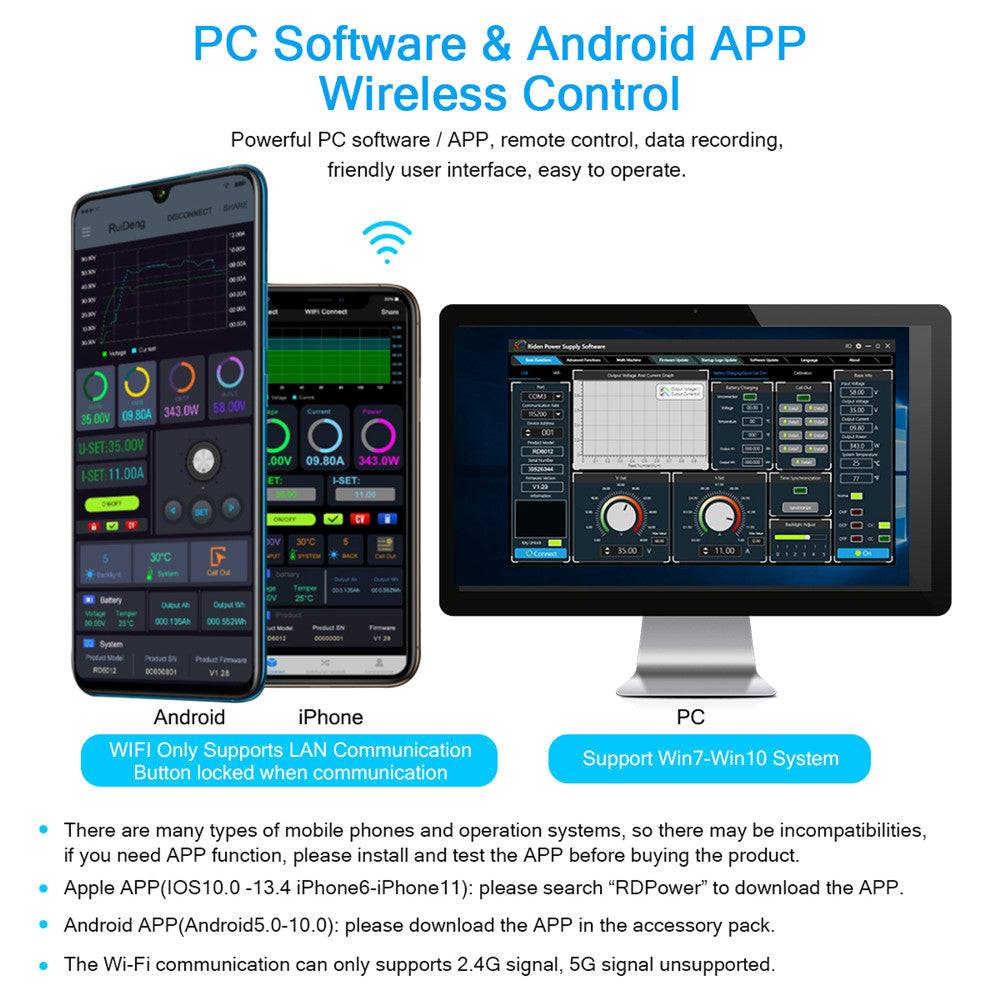

[PC Software and Android/IOS APP Wireless Control]: You can connect to APP through Wi-Fi, also use USB micro cable to connect PC software, then remotely monitor and set the digital power supply on your computer or your phone. Note: for APP and PC software, please download first to check before buying , if you can download and install, you can make order.
[What You Get]: 1*Linear programmable switch power supply controller; Accessories as shown. Note: The item is only a controller, without shell, and you need a seperate power-unit(not in delivery).
4 digit resolution, Adopt high precision sampling chip, ensure product measurement accuracy and stability.
Keypad, encoder potentiometer and multifunction button combination, convenient to adjust at big or small range.
Support data storage function, can store or call out the setting parameters immediately.
Support button lock funtion, can prevent operation by mistake.

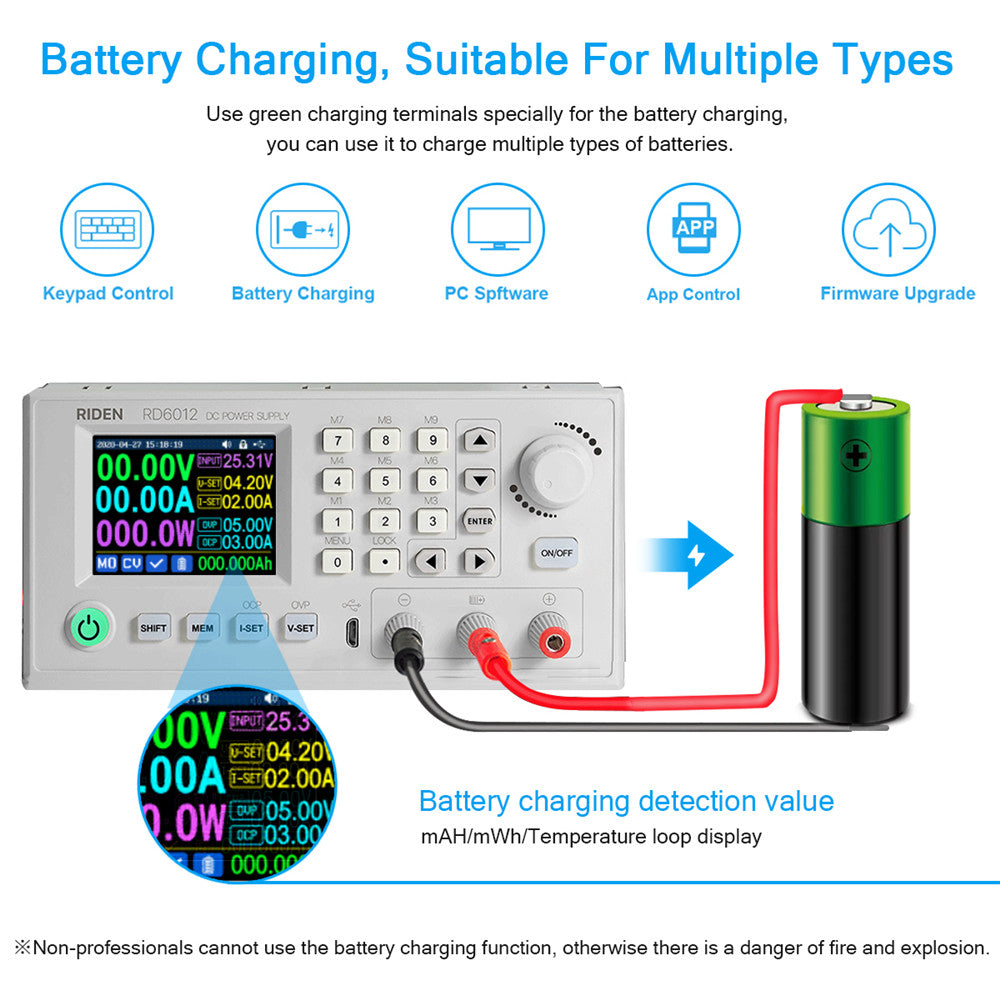

Green and black charging terminals specially for the battery charging, don't worry about connecting reversely, you can use it to charge multiple types of batteries.
Input voltage: 6-70.00V
Output voltage: 0-60.00V
Output current: 0-12.00A
Output power: 0-720W
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99Wh
External sensor Temperature detection range: -10Â°~100Â°C
1. Operation instructon, PC software instruction, APP instruction, Android APP and PC software download link: https://drive.google.com/file/d/1tpdKoS2Kauk3IFiPvB3oZV5vCEX_KkYI/view?usp=sharing
2. IOS APP download: Search RdPower in App Store
1. For PC software, it only support win 7 and above for now. For APP, it only support android 5.0 and above. for APP and PC software, please download first to check before buying , if you can download and install, you can make order.
1 * Switch power supply controller
1 * Accessories as shown
