2inch LCD Module IPS Screen 240×320 for Raspberry Pi/Arduino/STM32

  • $14.15
    Unit price per
  • Save $2.83


Product introduction:
This product is a 2-inch IPS display module with a resolution of 240*320, using SPI interface for communication, LCD with internal control
Product introduction:

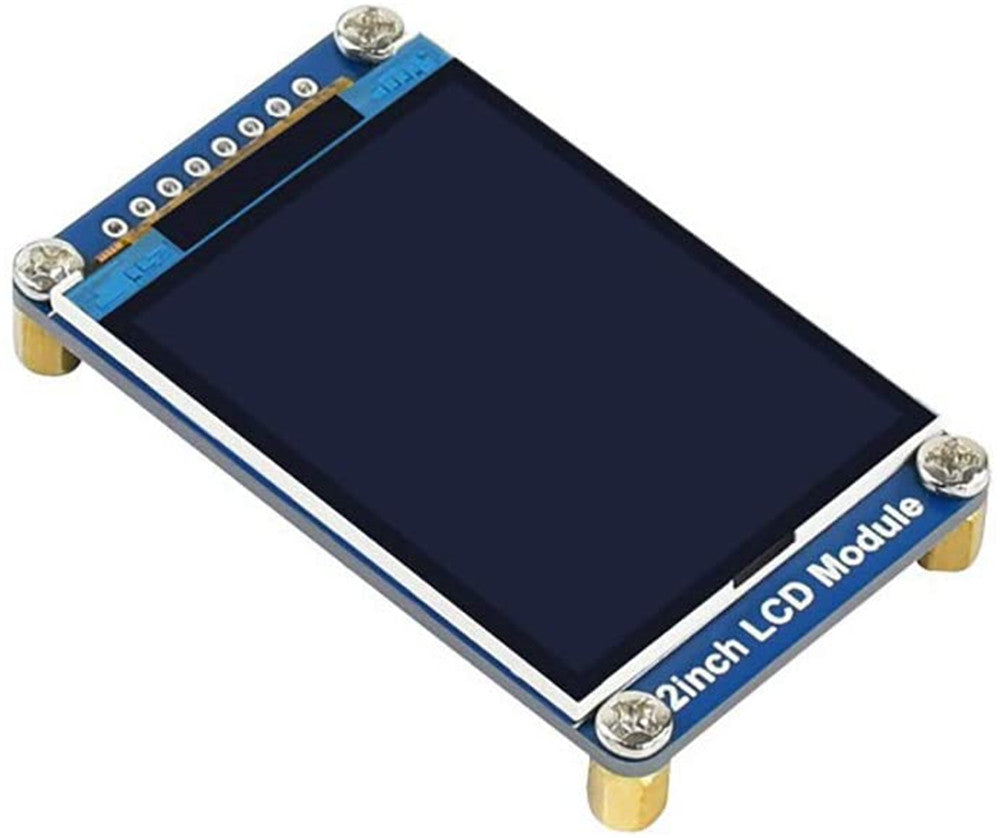

This is a general LCD display Module, IPS screen, 2inch diagonal, 240×320 resolution, with embedded controller, communicating via SPI interface

Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

You can download the CAD  File Here

Specifications:

Working voltage: 3.3V/5V

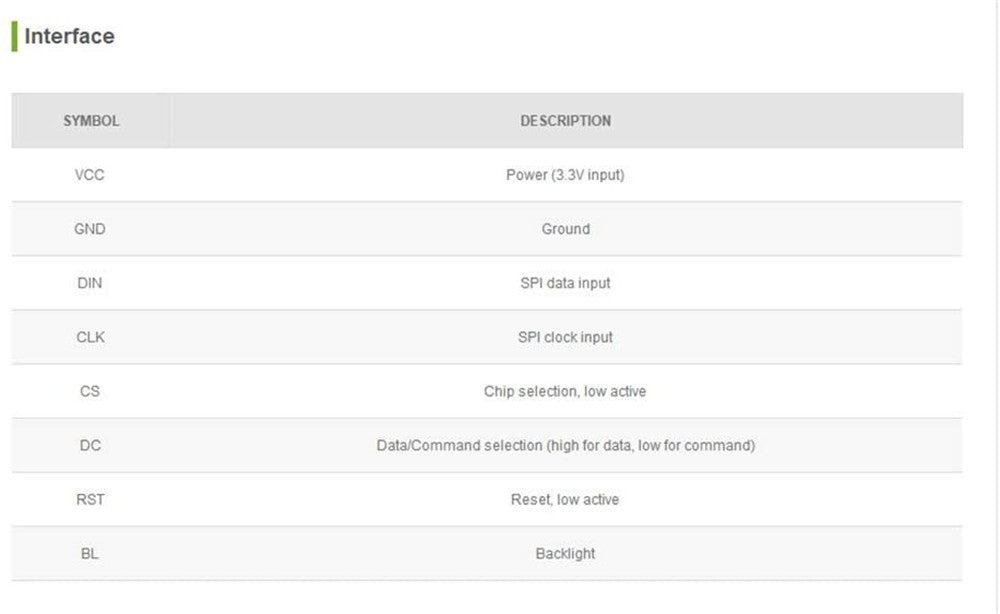

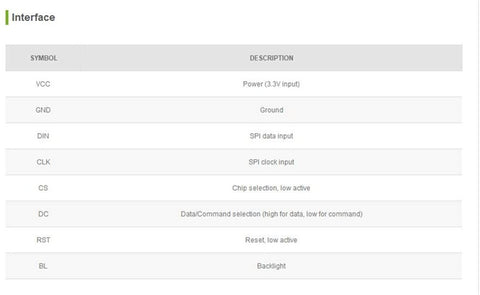

Communication interface: SPI
Screen type: IPS

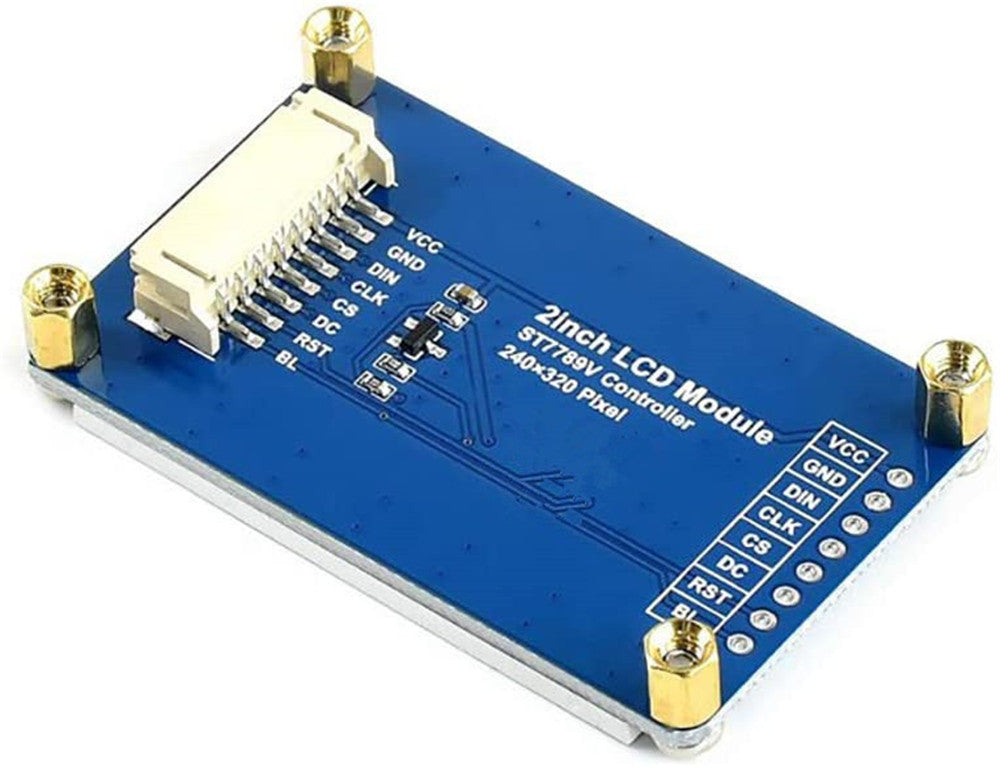

Control chip: ST7789V
Resolution: 240(V)x320(H)RGB
Display size: 23.4 (H) x23.4 (V) mm
Pixel size: 0.0975 (H) x 0.0975 (V) mm

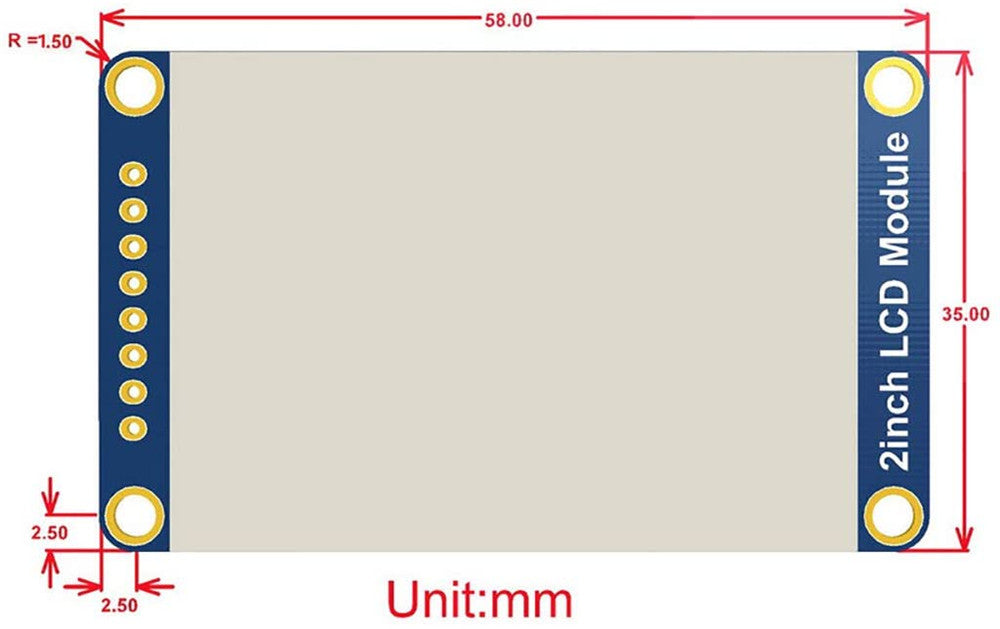

Product size: 58x35(mm)

Package Content:

1. 2inch LCD Module x1
2. PH2.0 20cm 8Pin x1
