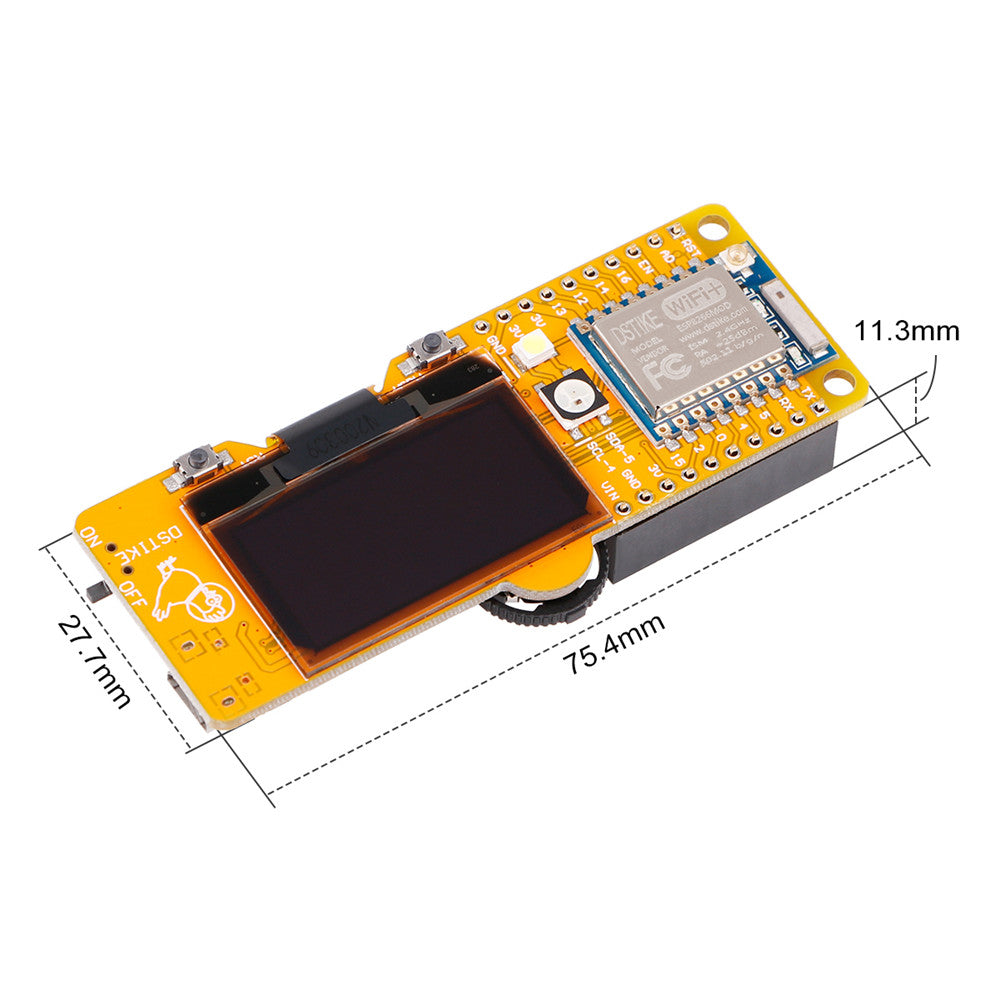

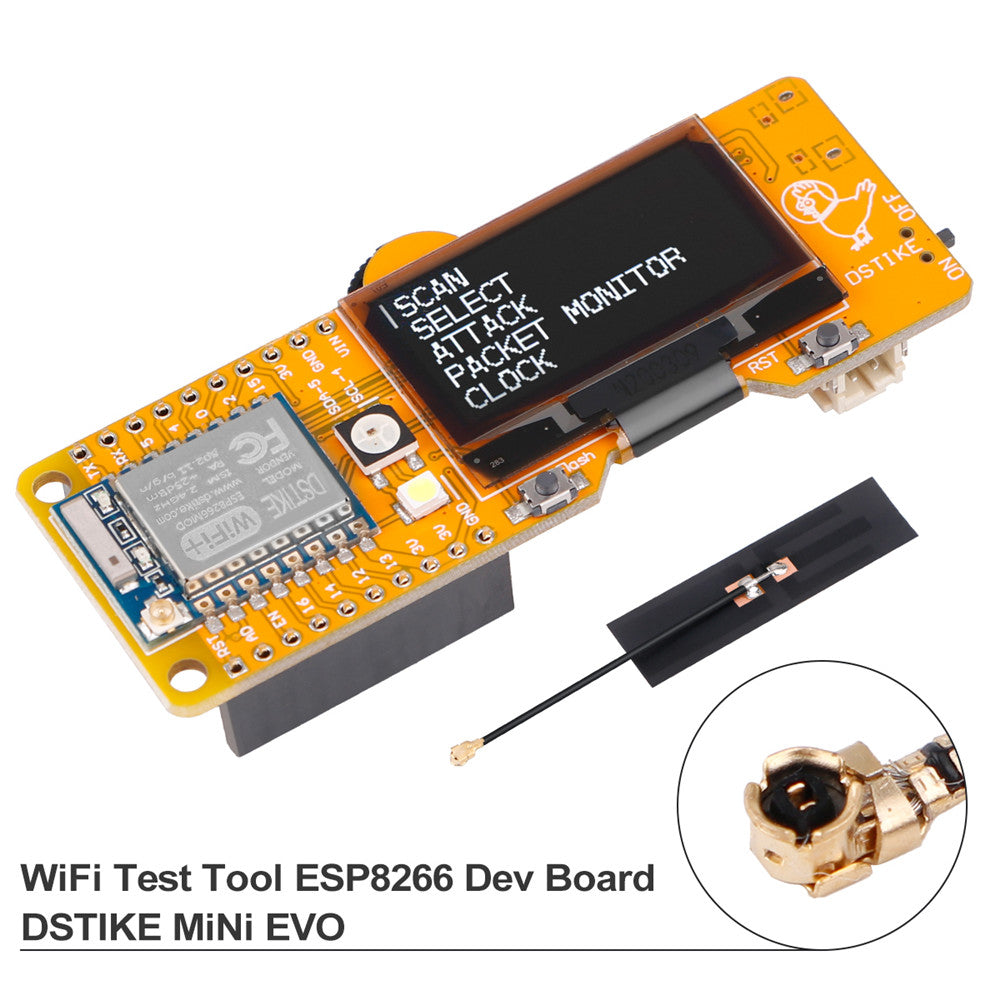

WiFi Test Tool ESP8266 Development Board WiFi Deauther DSTIKE Mini EVO with 1.3inch OLED Display
MakerFocus WiFi Test Tool ESP8266 Development Board WiFi Deauther DSTIKE Mini EVO with 1.3inch OLED Display and 5 dB Antenna

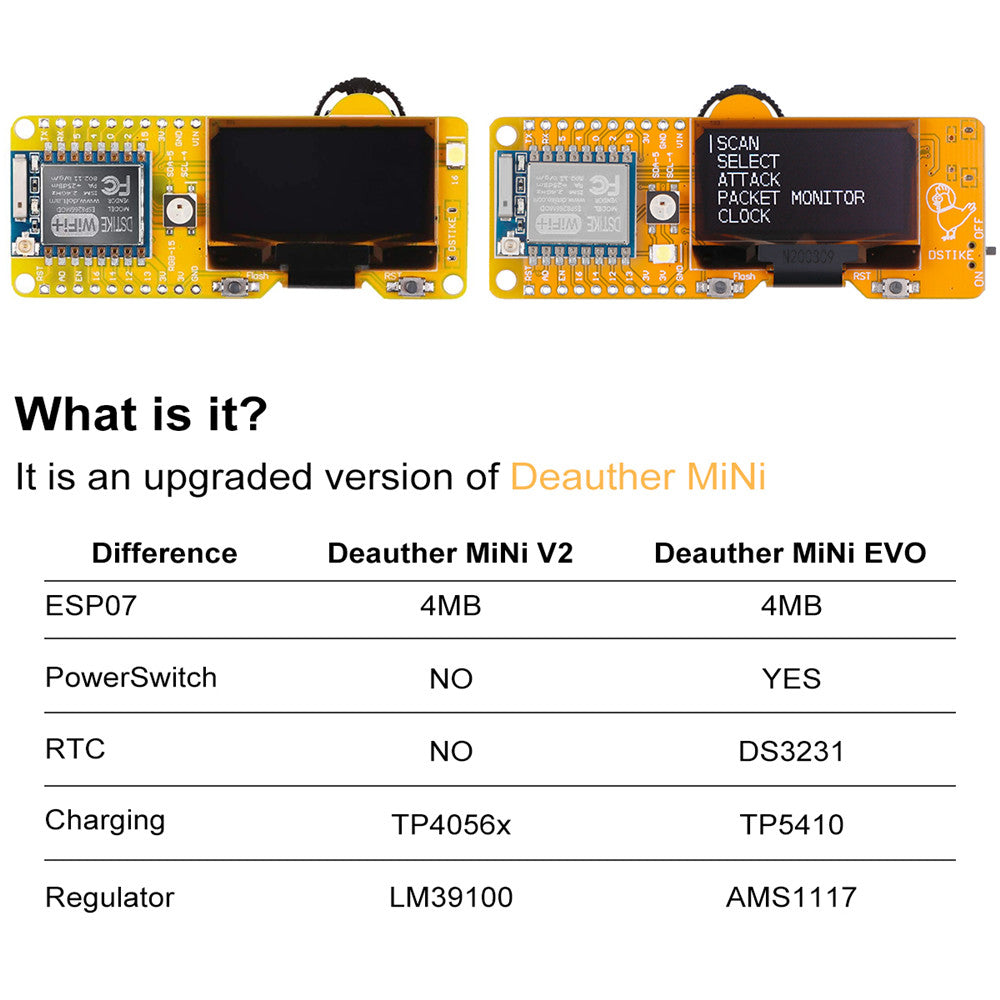

Upgraded Version of Deauther MiNi:
1. Changed + and - direction of connector, so it is compatible with most of battery you can purchase.
2. It uses PH2.0 connector and any 3.7V Li-Battery is OK.
3. RTC DS3231 could only work when battery is connected. I uses TP4056x + LM39100 for Deauther MiNi V2. Then I find it is not good enough, TP4056 charges battery a little slow and LM39100 wastes some power when battery is lower than 3.3V. Finally I decide to use TP5410 +AMS1117 solution. I know somebody does not like AMS1117 but I want to say ingore this, TP5410+AMS1117 will give a better efficiency and performance
What makes it special?

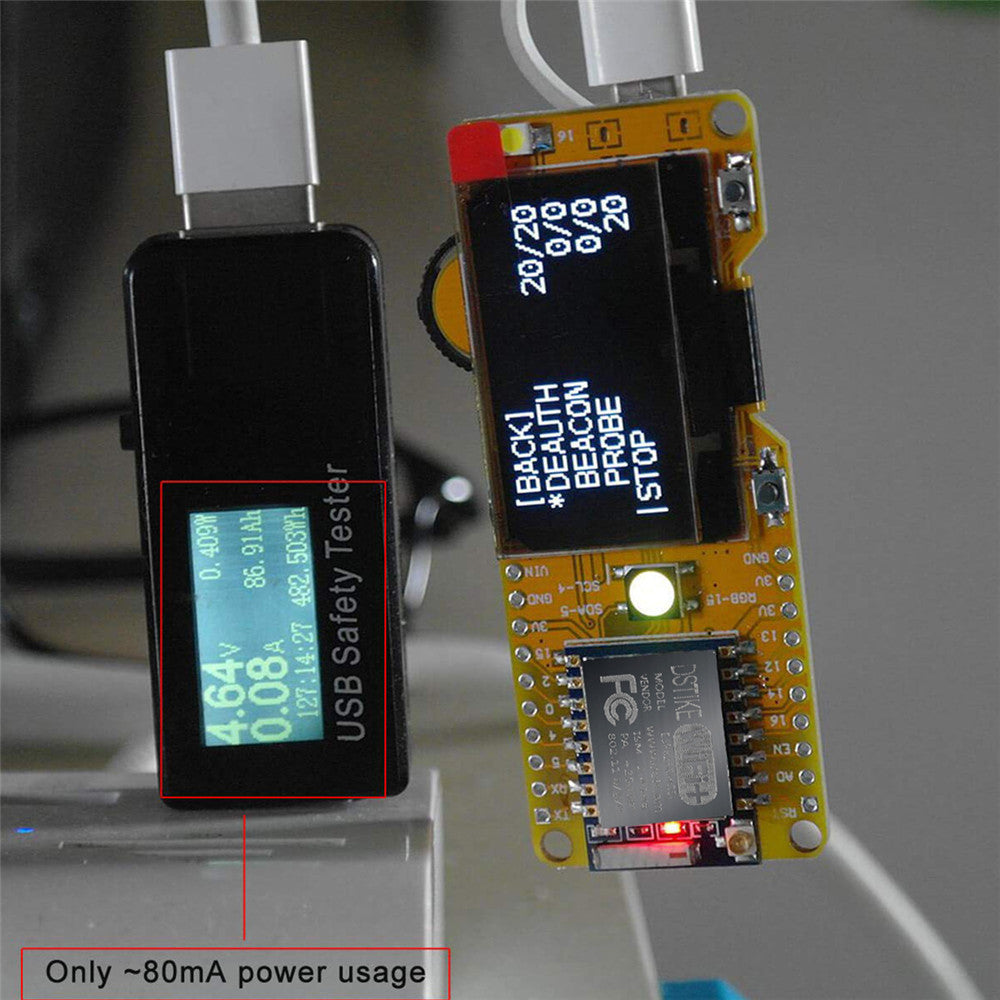

Only ~80mA power usage
TP5410+AMS1117 power solution
Included 5dB antenna
All GPIO breakouts and 3.3 and 5V output

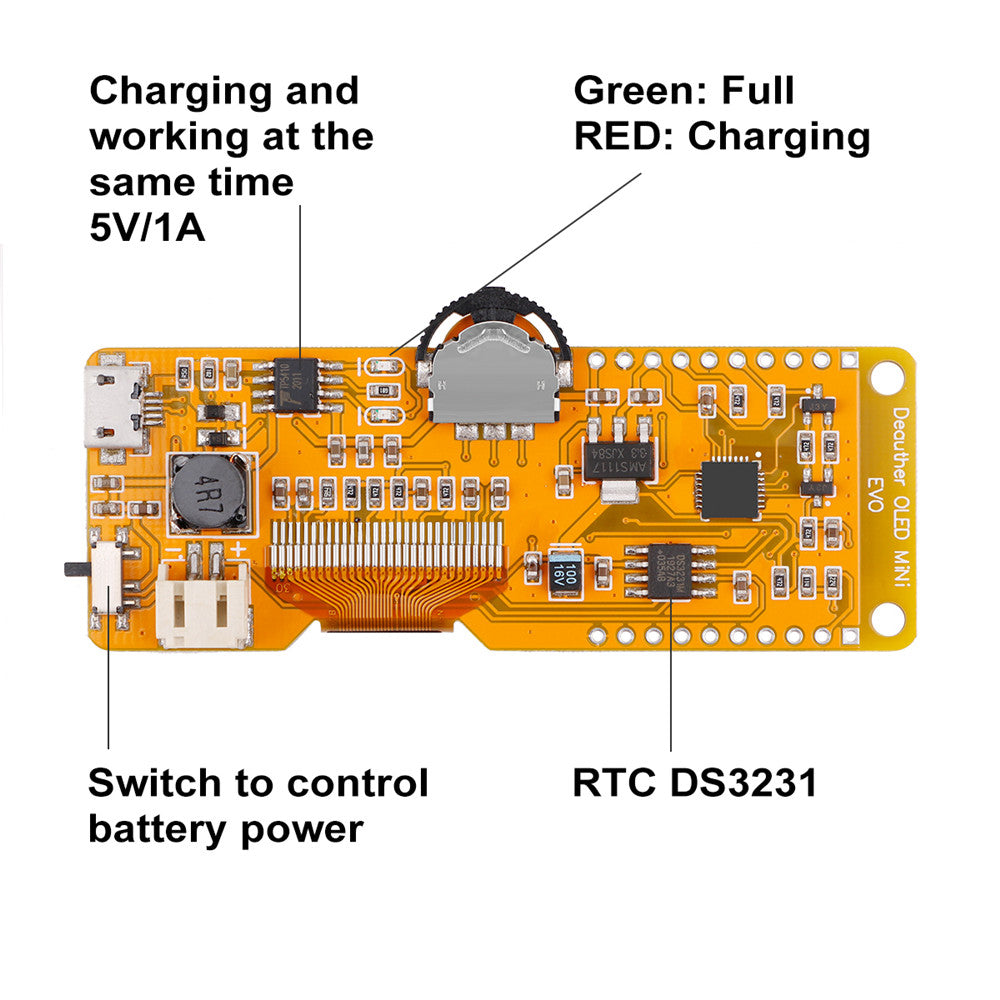

2 LEDs to indicate battery charging status (Red:Charging,Green:Full)
GPIOs and Hardware Info:
Display: SH1106 1.3" OLED
Display SDA: GPIO 5 (D1)
Display SCL/SCK: GPIO 4 (D2)
WS2812b LED: GPIO 15 (D8)
Button Up: GPIO 12
Button Down: GPIO 13
Button Select: GPIO 14
High Light LED: GPIO16
All ESP8266 pins break out.
Note: Use it only for testing and educational purposes against your own devices!

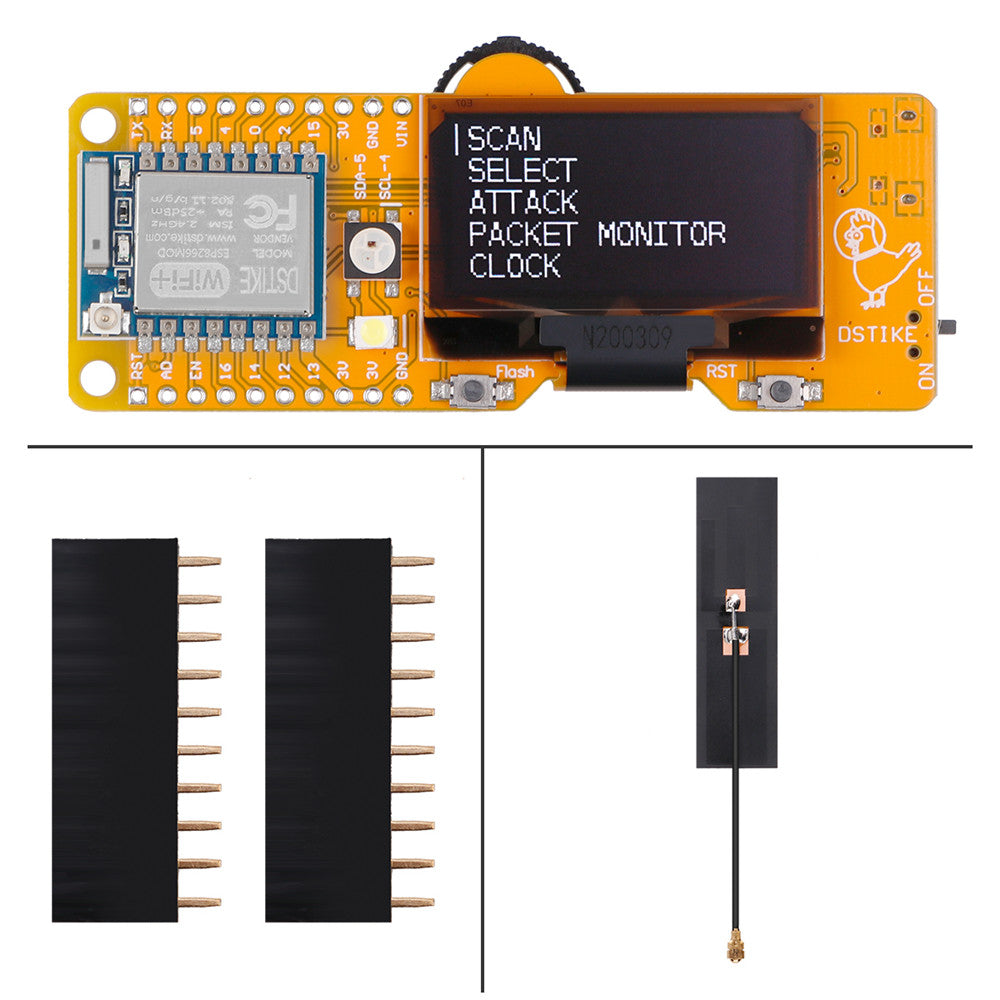

1 * ESP8266 Deauther MiNi EVO
2 * Pin Headers
1 * 5db FPC Atenna
