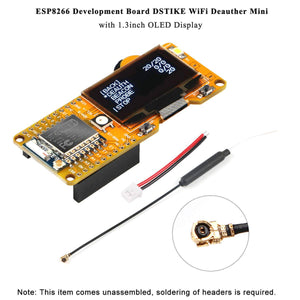

MakerFocus ESP8266 Development Board DSTIKE WiFi Deauther Mini with 1.3inch OLED Display
What is it?

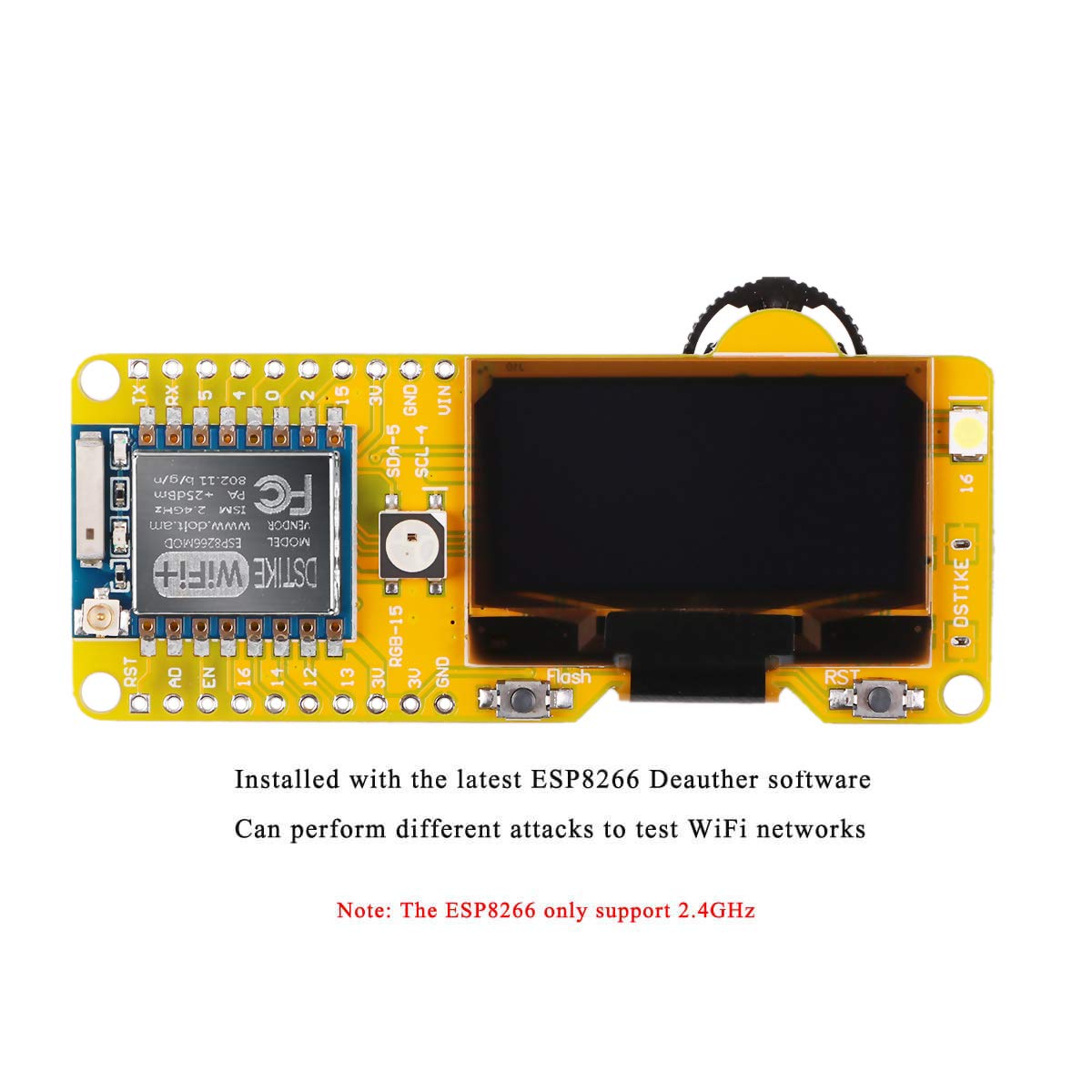

This tiny ESP8266 development board is a small version of WiFi deauther projects. It comes installed with the latest ESP8266 Deauther software.
With this software, you can perform different attacks to test WiFi networks.
Please note that the ESP8266 does only support 2.4GHz. For more details on the software, visit here: https://github.com/spacehuhn/esp8266_deauther
You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.

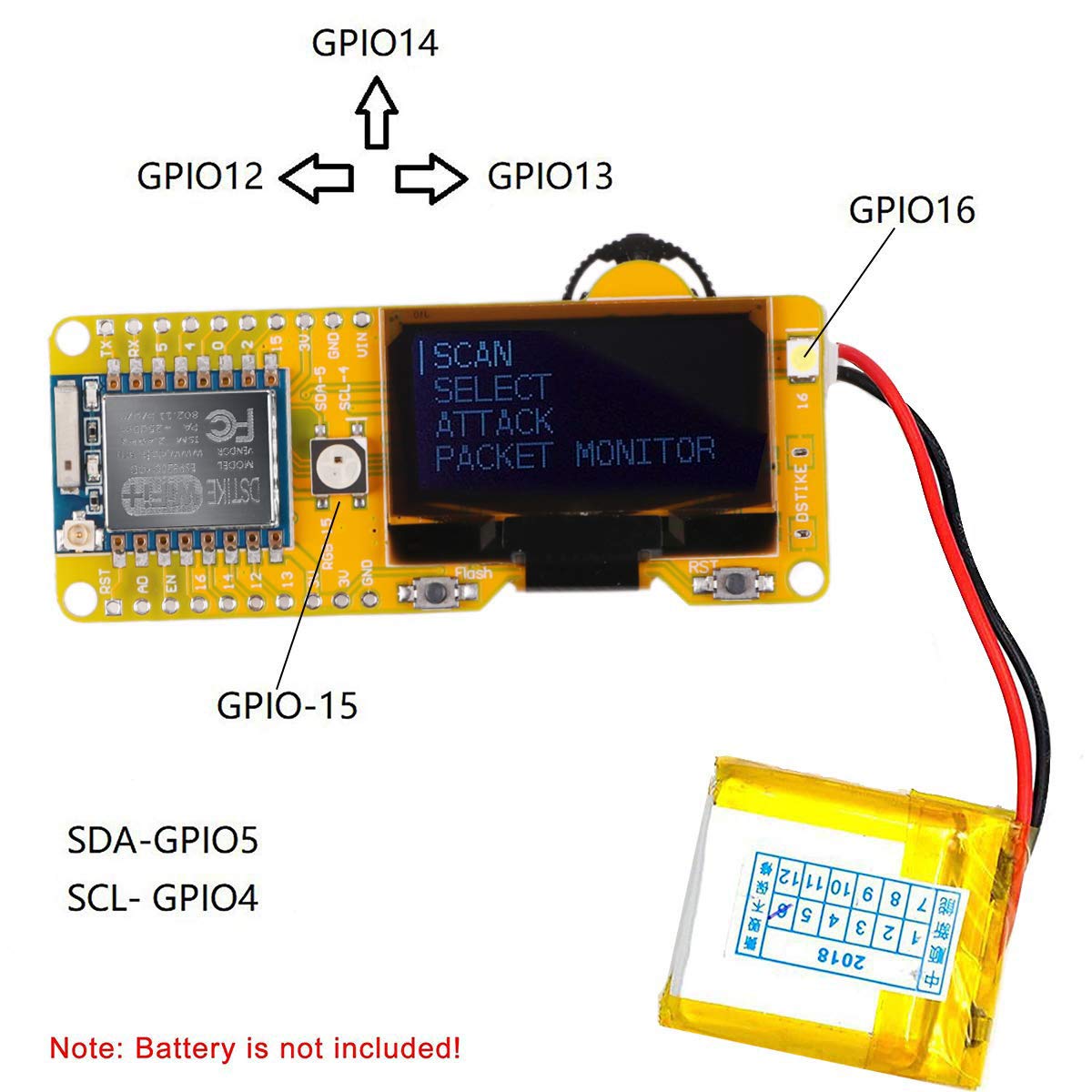

GPIOs and hardware info:
Display: SH1106 1.3" OLED
Display SDA: GPIO 5 (D1)
Display SCL/SCK: GPIO 4 (D2)
WS2812b LED: GPIO 15 (D8)
Button Up: GPIO 12
Button Down: GPIO 13
Button Select: GPIO 14

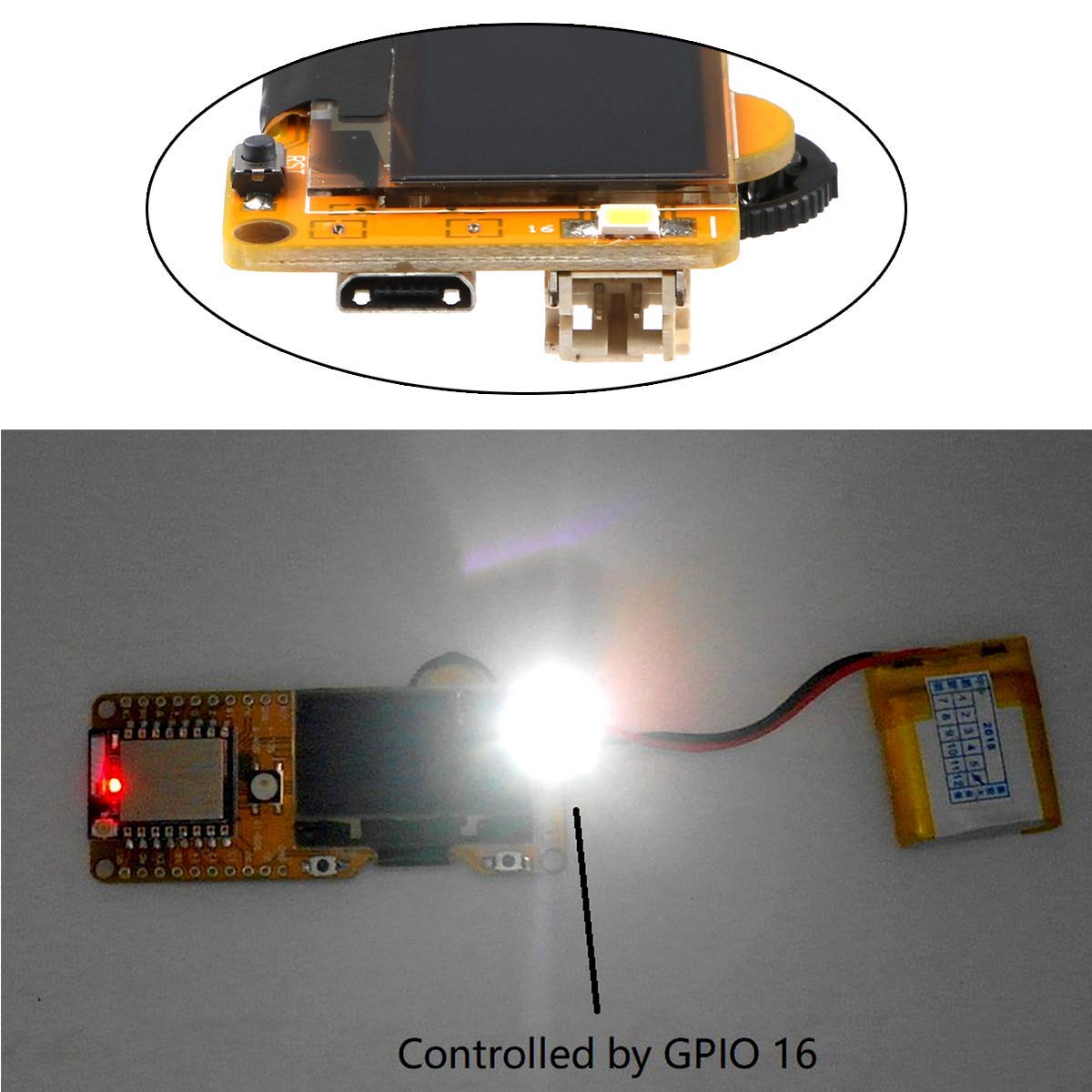

High Light LED: GPIO16
All ESP8266 pins break out.
What makes it special?

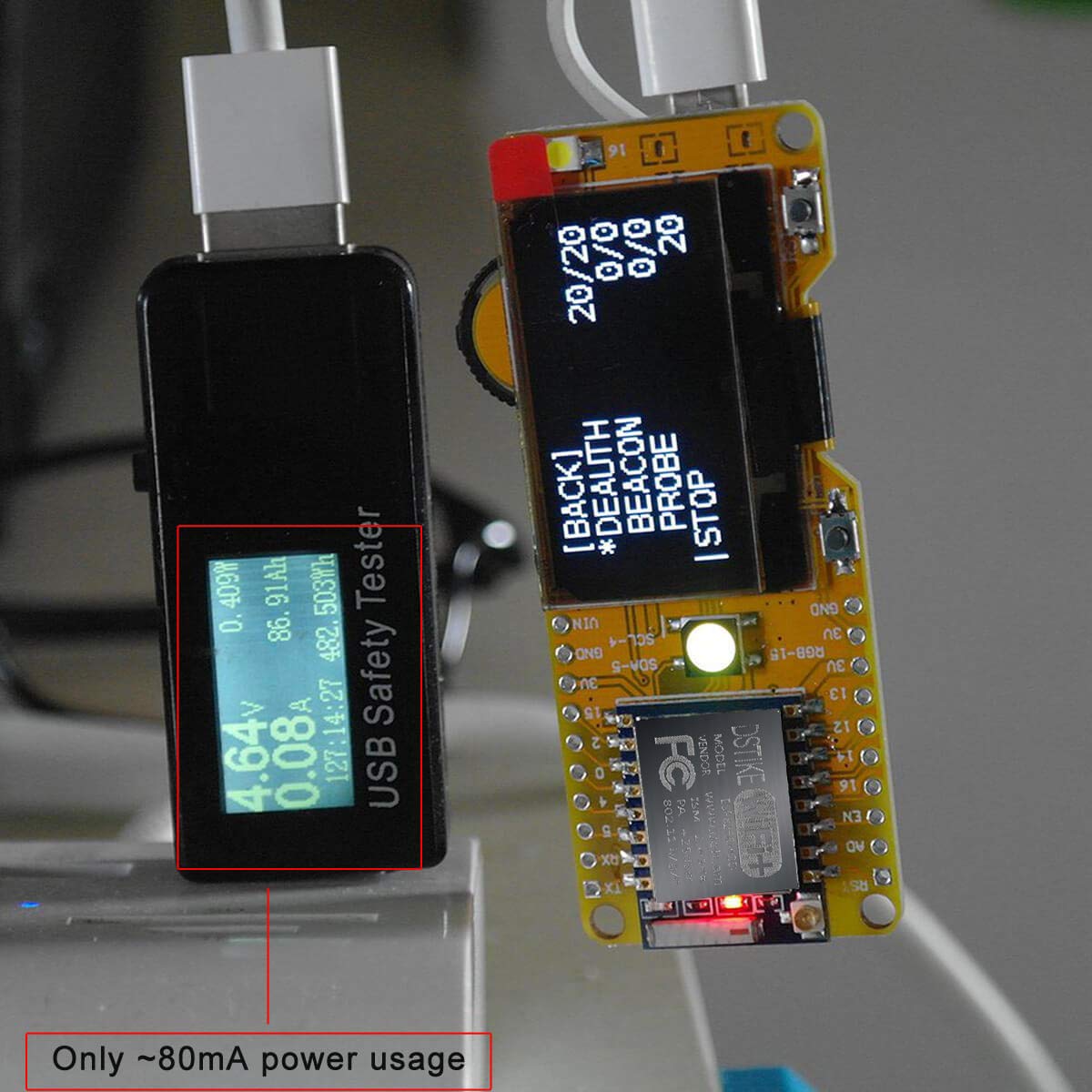

Only ~80mA power usage
LM39100 Low Voltage Low-Dropout Regulator

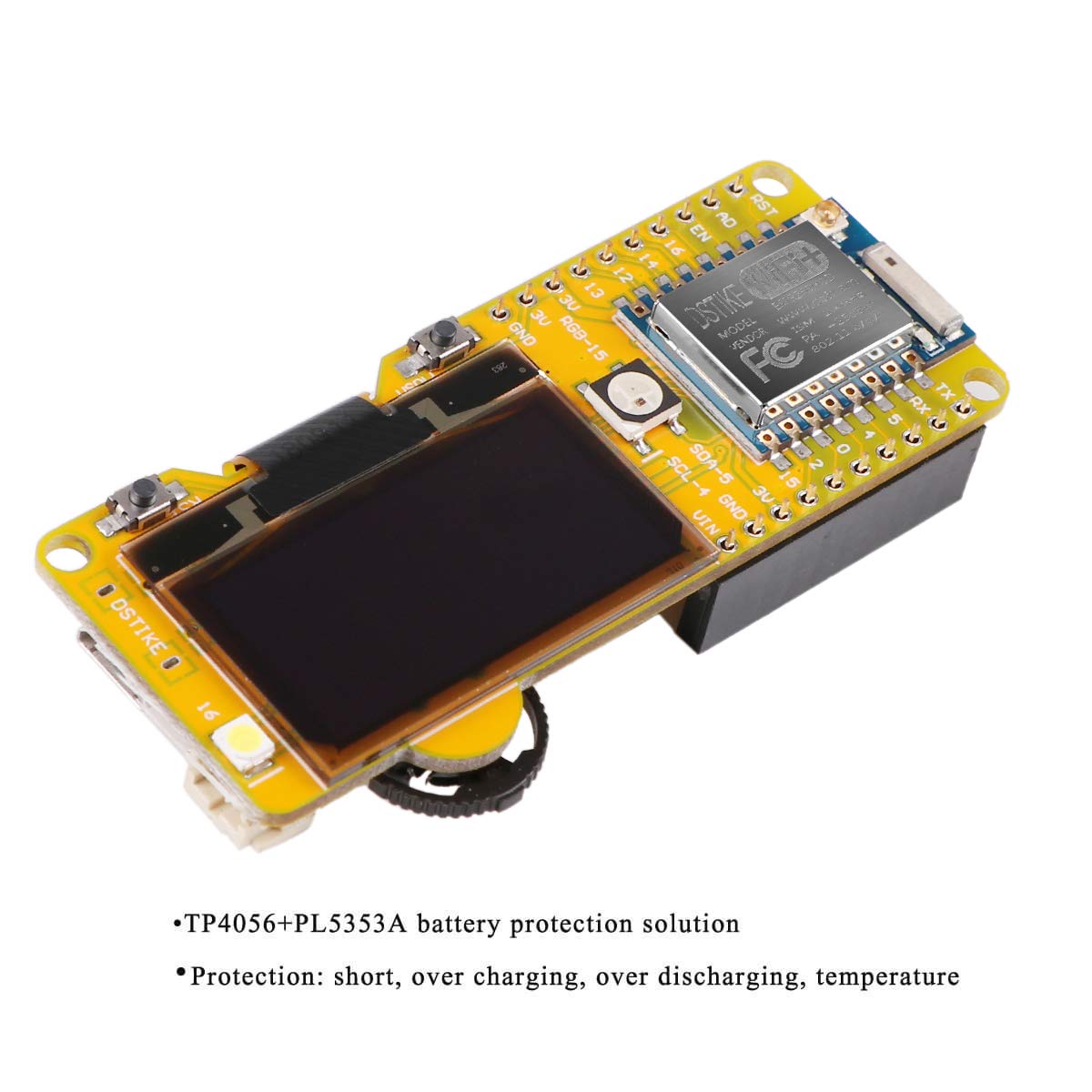

TP4056+PL5353A battery protection solution
Included 2dB antenna
All GPIO breakouts and 3.3 and 5V output

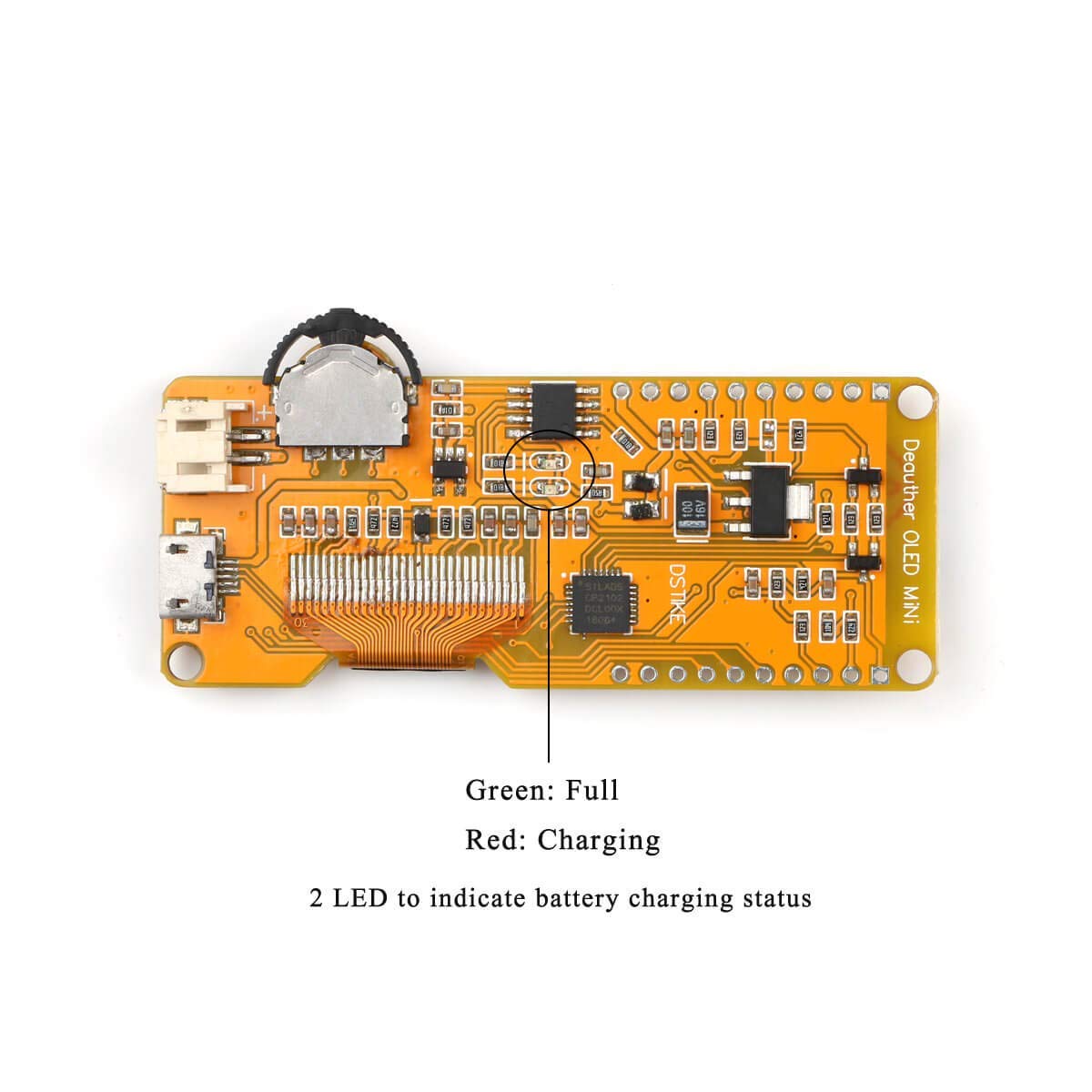

2 LEDs to indicate battery charging status (Red:Charging,Green:Full)
Protection: short, over charging, over discharging, temperature
You can use it with the display and buttons: https://github.com/spacehuhn/esp8266_deauther/wiki/Setup-Display-&-Buttons;
You can also connect to "pwned" with the password "deauther" and use the web interface: https://github.com/spacehuhn/esp8266_deauther/wiki/Web;
If you lost the password you can reset it: https://github.com/spacehuhn/esp8266_deauther/wiki/FAQ#how-to-do-a-reset.

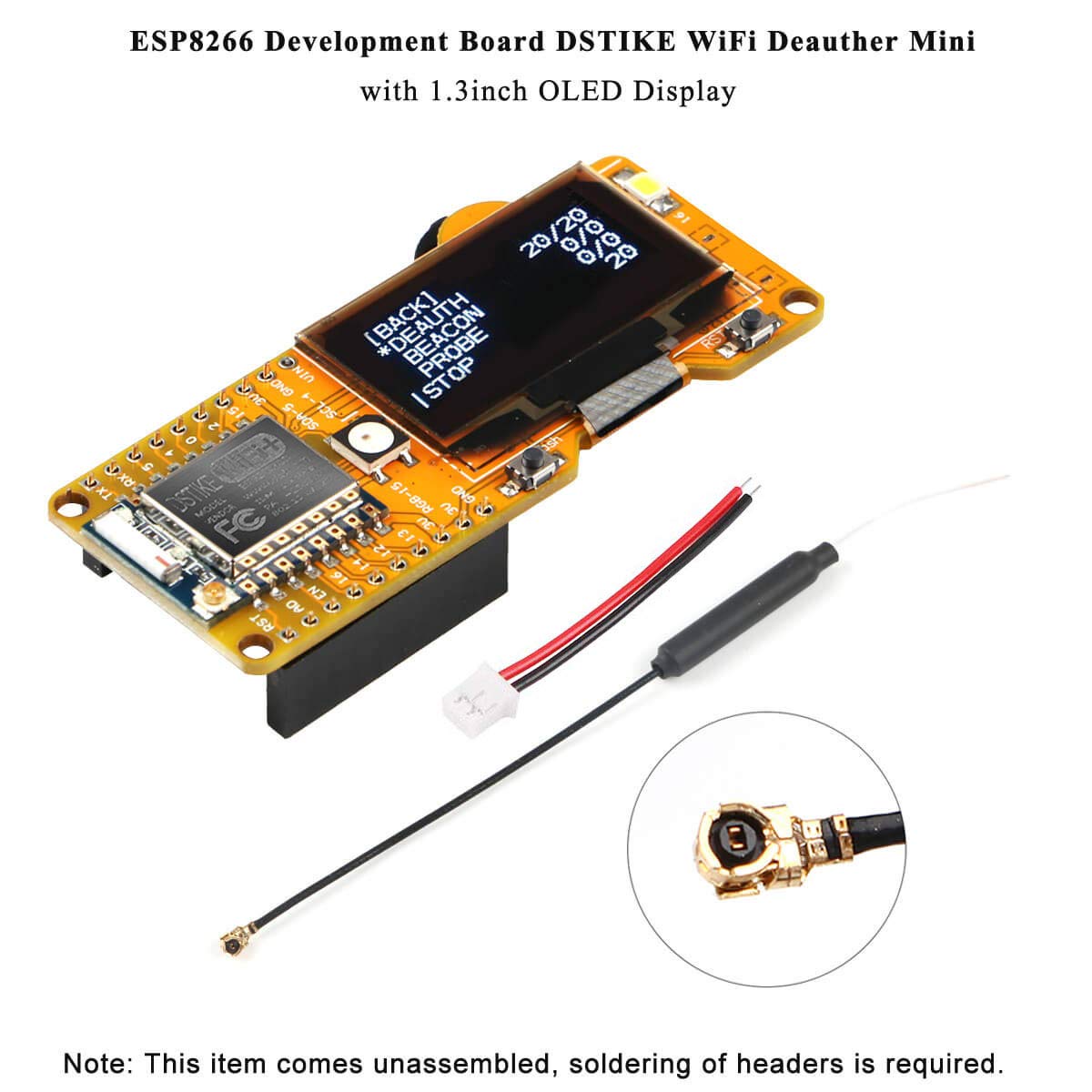

1 * ESP8266 development board Deauther WiFi with 1.3inch OLED
1 * 2db antenna
1 * Normal pin
