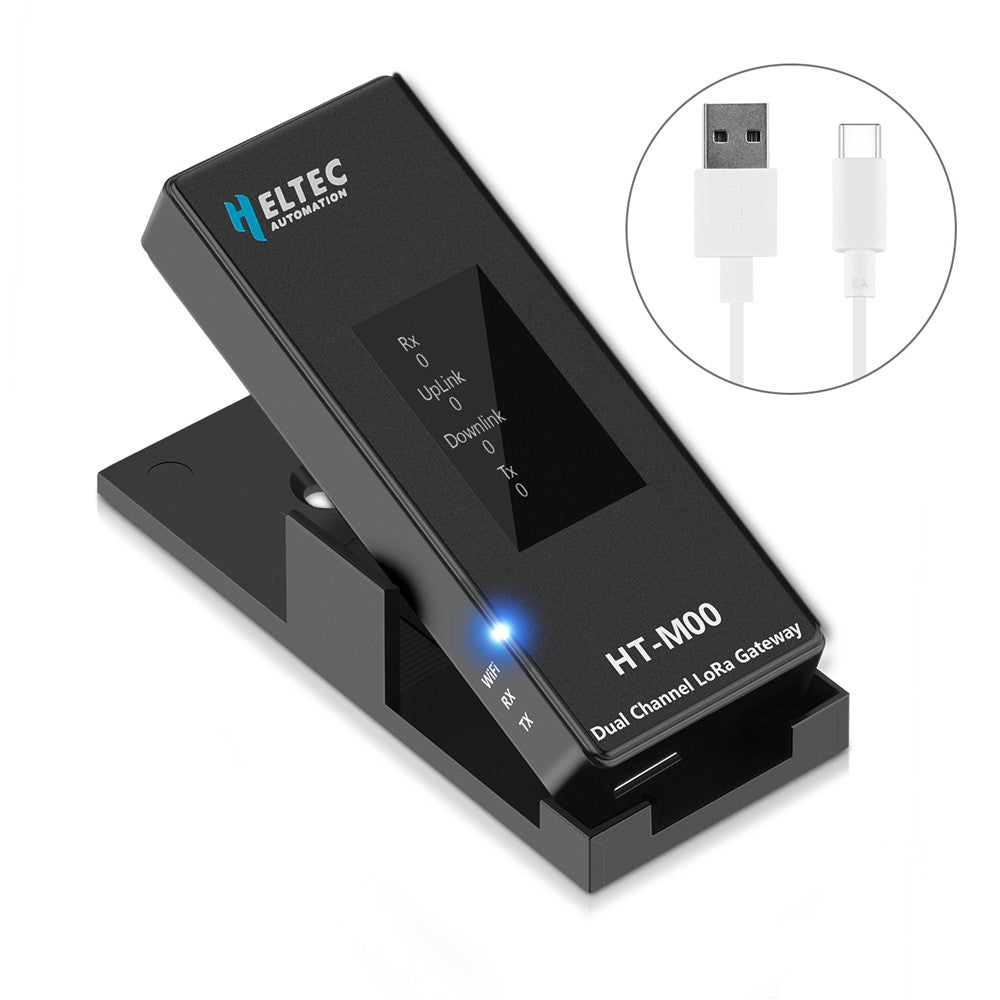

Lorawan Lora Gateway ESP32 Sx1276 Chip 5V Low-Cost HT-M00 Dual Channel 868-915 MHz Smart Family

  • $43.05
    Unit price per
  • Save $3.94


WiFi Gateway Lorawan Lora Gateway ESP32 Sx1276 Chip 5V Low-Cost HT-M00 Dual Channel 868-915 MHz Built in Antenna Located to Smart Family LoRa Applications

Low-cost Dual Channel Gateway - HT-M00 is located to smart family LoRa applications that work with less than 30PCS LoRa nodes. Use Manual: https://heltec-automation-docs.readthedocs.io/en/latest/gateway/ht-m00/qucik_start.html.

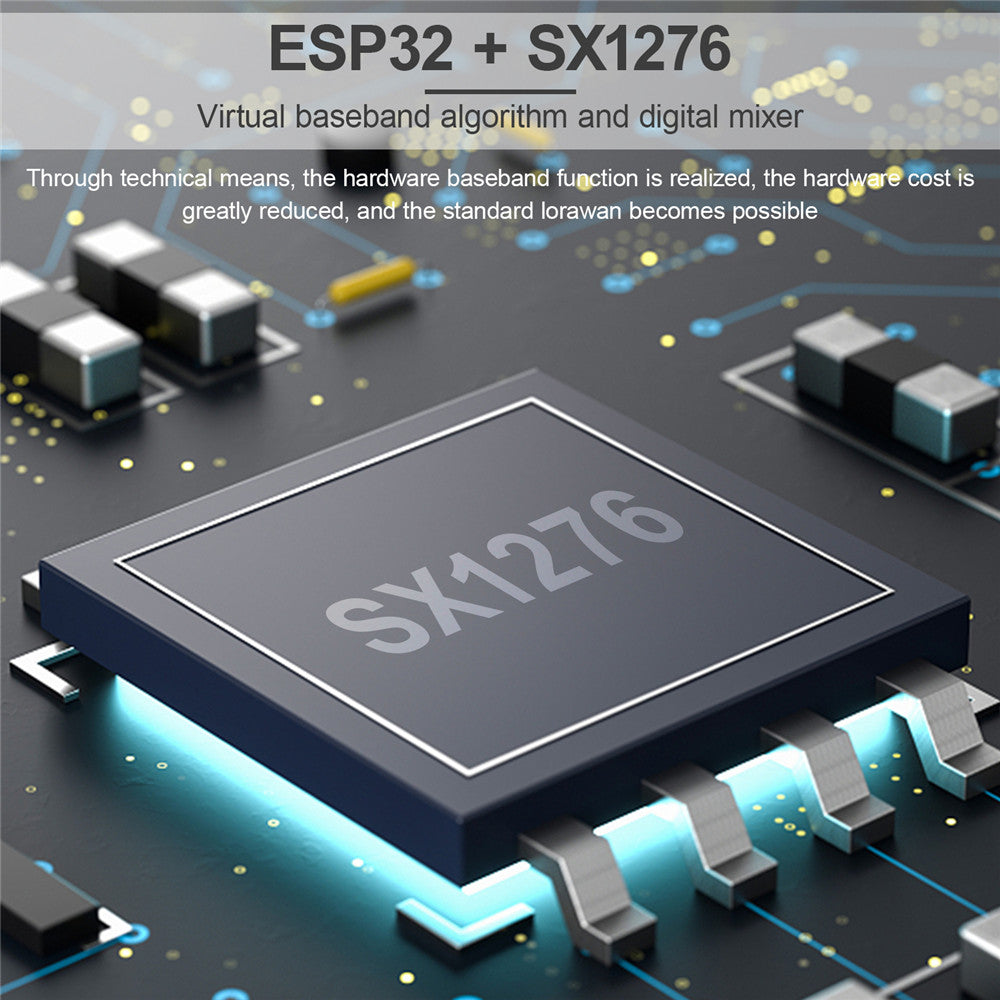

ESP32 + SX1276 - This gateway is based on two SX1276 chips driven by ESP32.
Emulates LoRa Demodulators - We wrote a software mixer (also called a baseband simulation program) to make it possible to achieve 125KHz SF7~SF12 spreading factor monitoring.
Automatic Adaptive Spread Spectrum Factor - SF7 to SF12 for each channel is optional

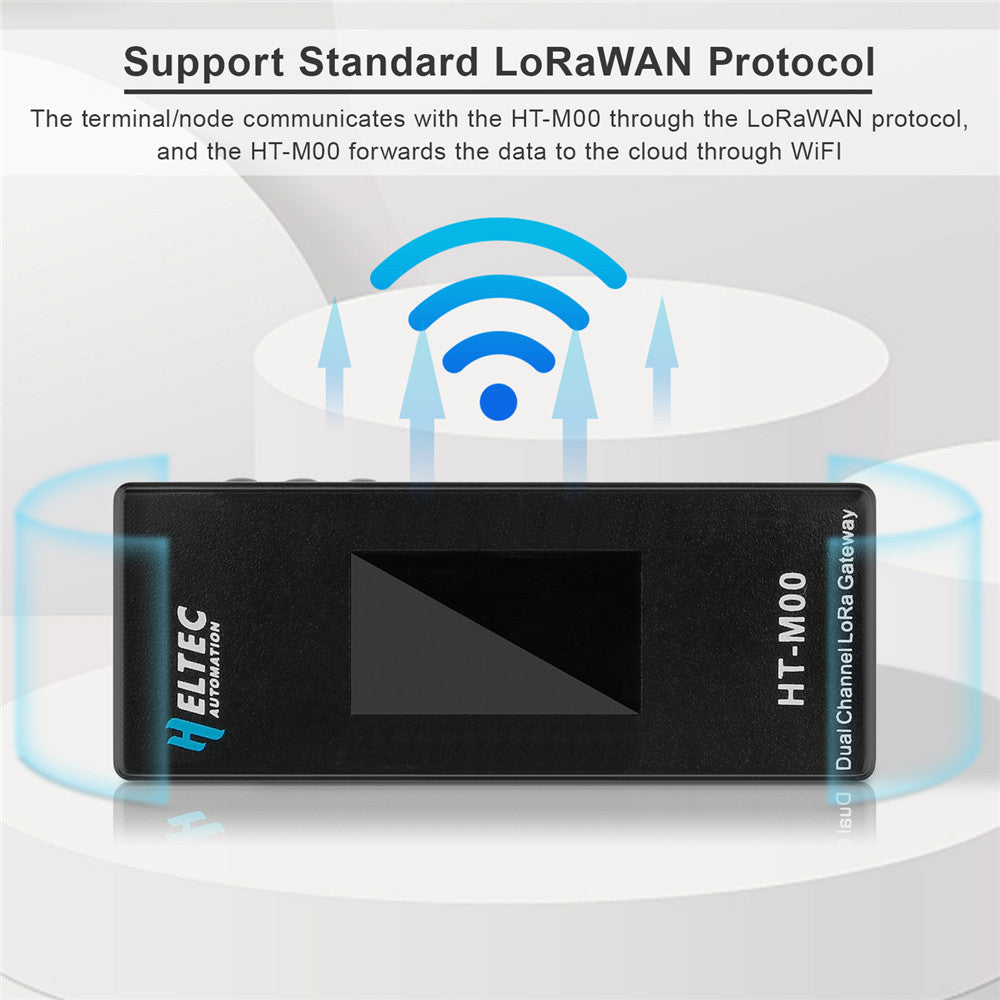

Support for LoRaWAN Class A, Class C protocols - Maximum output is 18 ± 1dBm.

Product description
Color:Mini Lora Gateway
Description:

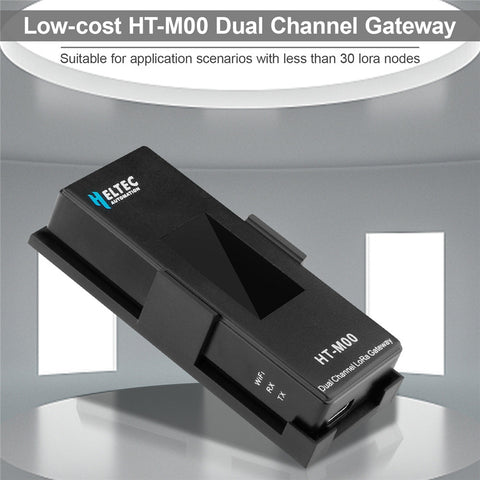

HT-M00 is a low-cost dual channel gateway.It is located to smart family LoRa applications that work with less than 30PCS LoRa nodes.This gateway is based on two SX1276 chips driven by ESP32. We wrote a software mixer (also called a baseband simulation program) to make it possible to achieve 125KHz SF7~SF12 spreading factor monitoring.

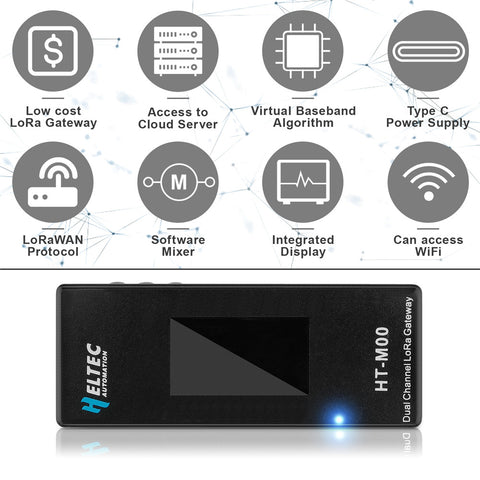

Features:

1. Emulates LoRa demodulators
2. Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional
3. Maximum output: 18 ± 1dBm
4. Communication interface Type-C USB
5. Support for LoRaWAN Class A, Class C protocols

Parameters:

Main control chip: esp32
LoRa RF chip: SX1276
Working Band: 868- 915mhz
LoRa maximum output power: 18dB ± 1dB
Interface: USB Type-C x 1
USB to Serial chip: CP2102
Size: 75 x 30 x 13mm
Working temperature: -40 ~ 80 ℃

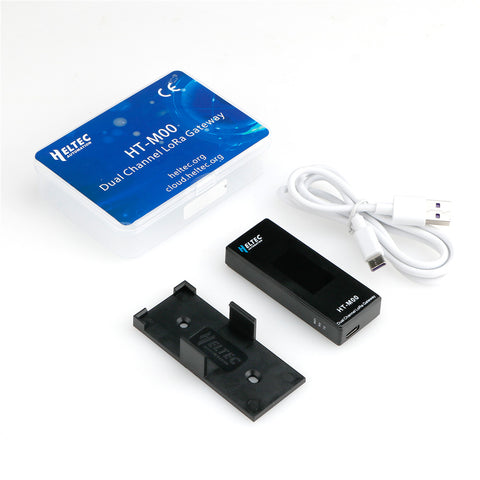

Package Including:
1 * HT-M00 Dual Channel LoRa Gateway 868-915 MHz

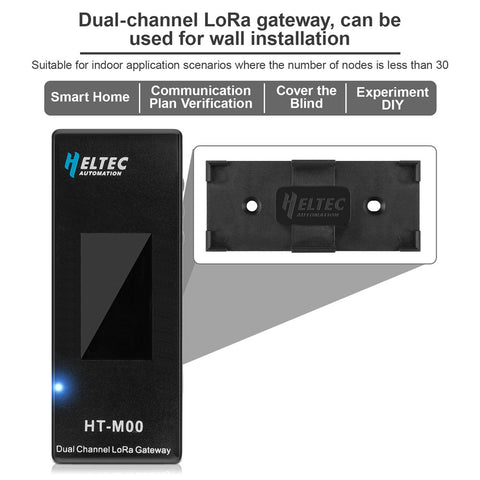

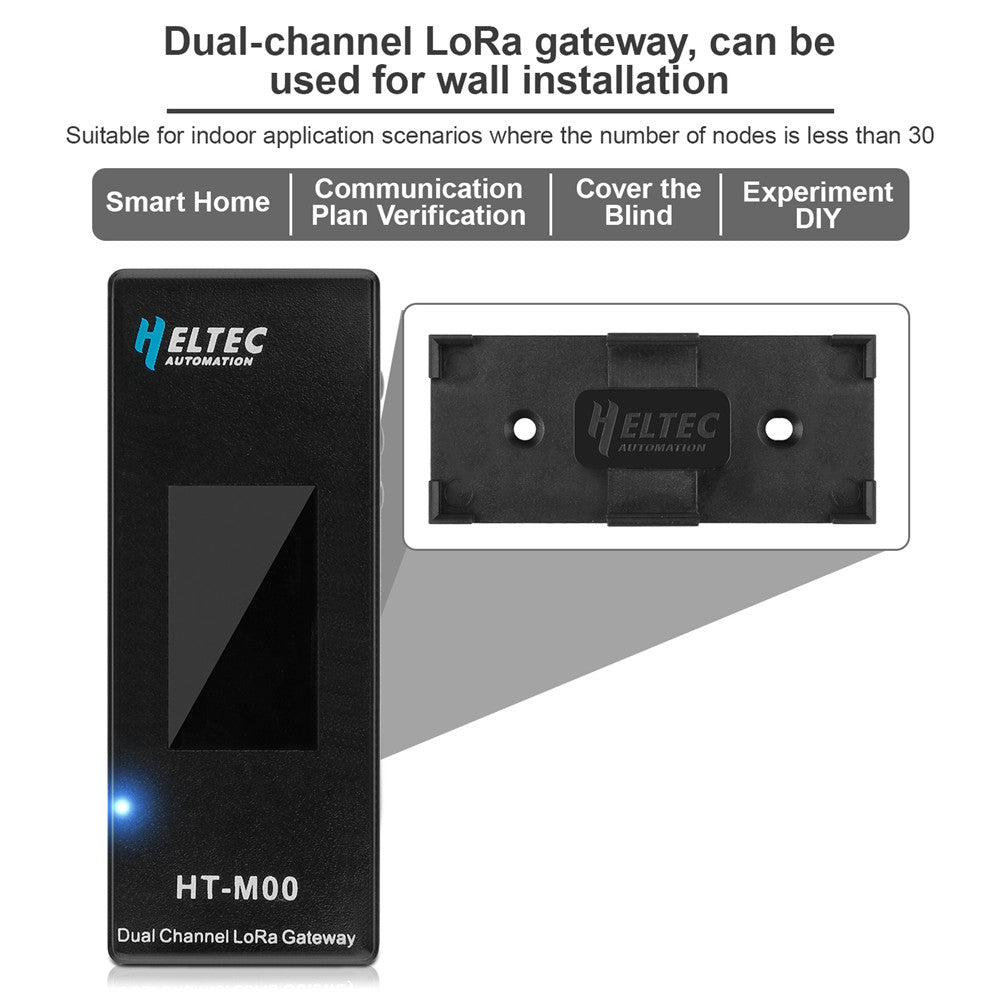

1 * Wall bracket
1 * Type-C cable(Not include AC / DC converter)
