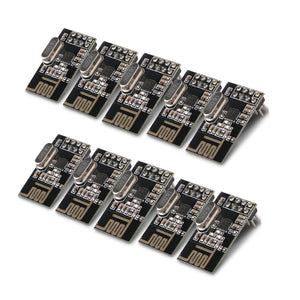

MakerFocus 10pcs Arduino NRF24L01+ 2.4GHz Wireless RF Transceiver Module New


  • $9.99
    Unit price per
  • Save $1.99
Shipping calculated at checkout.

The transceiver consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator, a demodulator, modulator and enhanced ShockBurst, protocol engine.
A host microcontroller can communicate and configure the nRF24L01+ over a 4-pin Serial Peripheral Interface (SPI). The configuration registers are accessible through the SPI connection.
Configurable parameters include frequency channel (125 selectable channels), output power, and data rate (data rates: 250kbps, 1Mbps, and 2Mbps).
The module has 5V tolerant inputs which allows for direct connection of SPI pins to the Arduino.
Internal filtering results in high margins of meeting RF regulatory standards.The module #39;s radio uses Gaussian Frequency-Shift Keying (GFSK) modulation as well as fast Automatic Gain Control (AGC)

Ultra small:15x29mm (including:built-in 2.4GHz antenna),for easy implementation into designs without additional hardware
Low power consumption:Ultra low power consumption as low as 11.3mA transmitting, 13.5mA receiving at 2Mbps, 900nA in power down and 26uA in standby
Low operating voltage:1.9 ~ 3.6V When using the nRF24L01 with an Arduino be sure to use the 3.3V output pin from the Arduino board to power the nRF24L01+ module
Communication range:262 feet (80 meters) in ideal conditions
Multi-channel:support six channels data reception
Fast data transfer rate:2Mbps (software setting range: 1Mbps or 2Mbps)
Multi frequency points:125 frequency points to meet the needs of multi point communication and frequency hopping communication
The maximum transmit power:0dBm


Packing List:

10 * Arduino NRF24L01+ 2.4GHz Wireless RF Transceiver Module New
