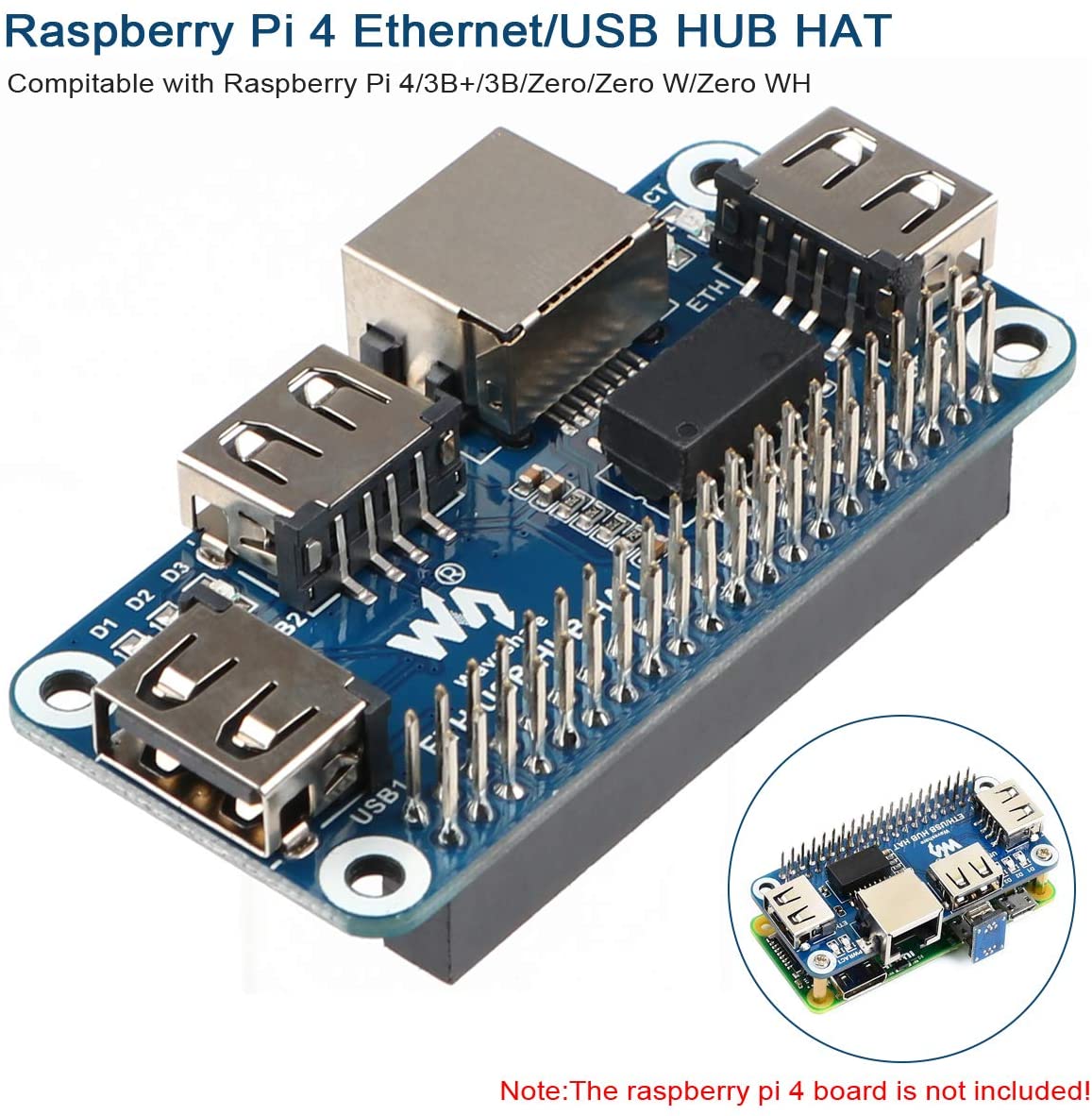

Raspberry Pi 4 Expansion Board Ethernet/USB HUB HAT 5V, with 1 RJ45 10/100M Ethernet Port

  • $14.19
    Unit price per
  • Save $2


Product Description

Otherview

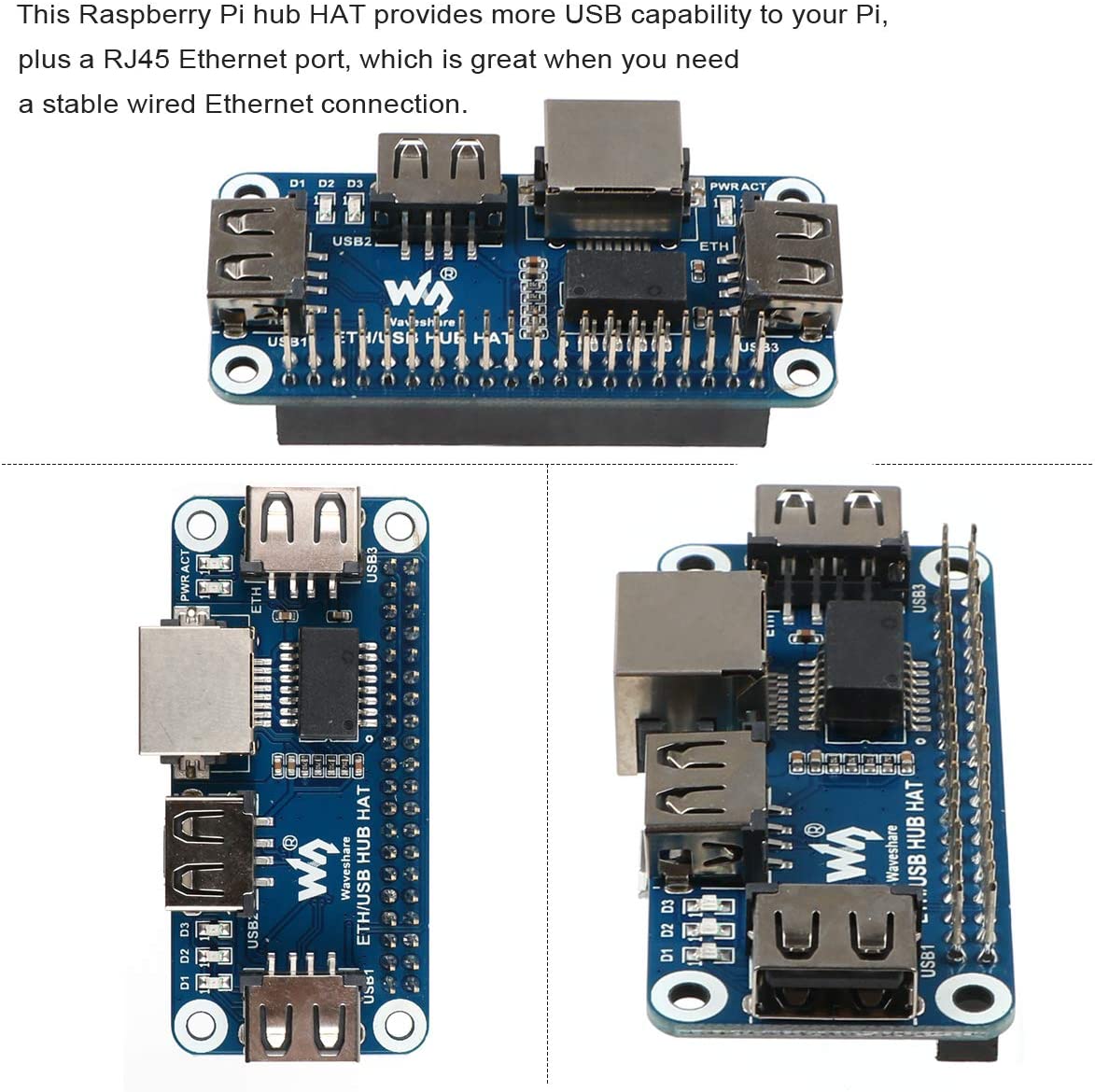

This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.

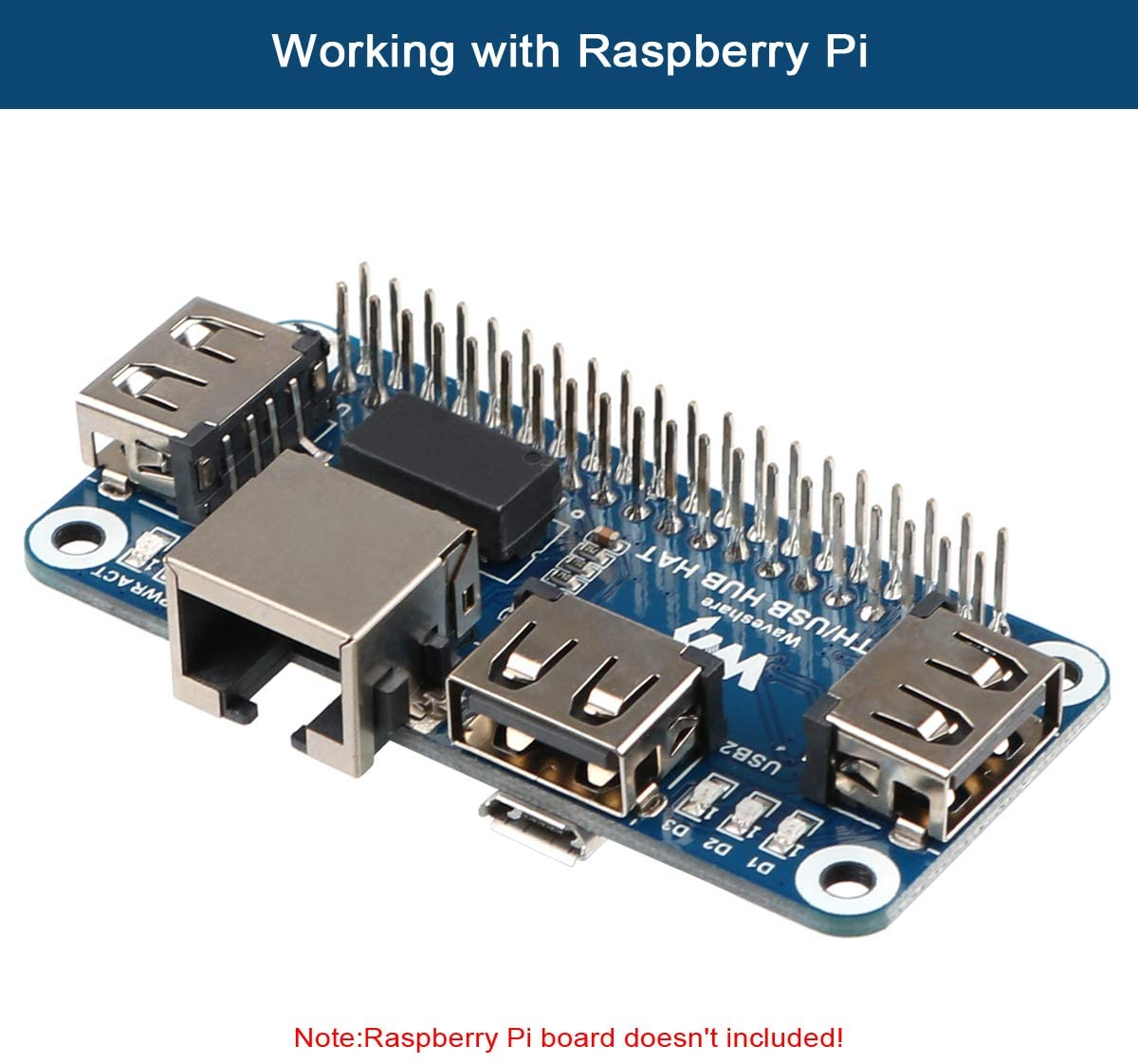

It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.
It also included several indicator lights, you could check the working status of the power supply, network port and USB expansion interface

Features

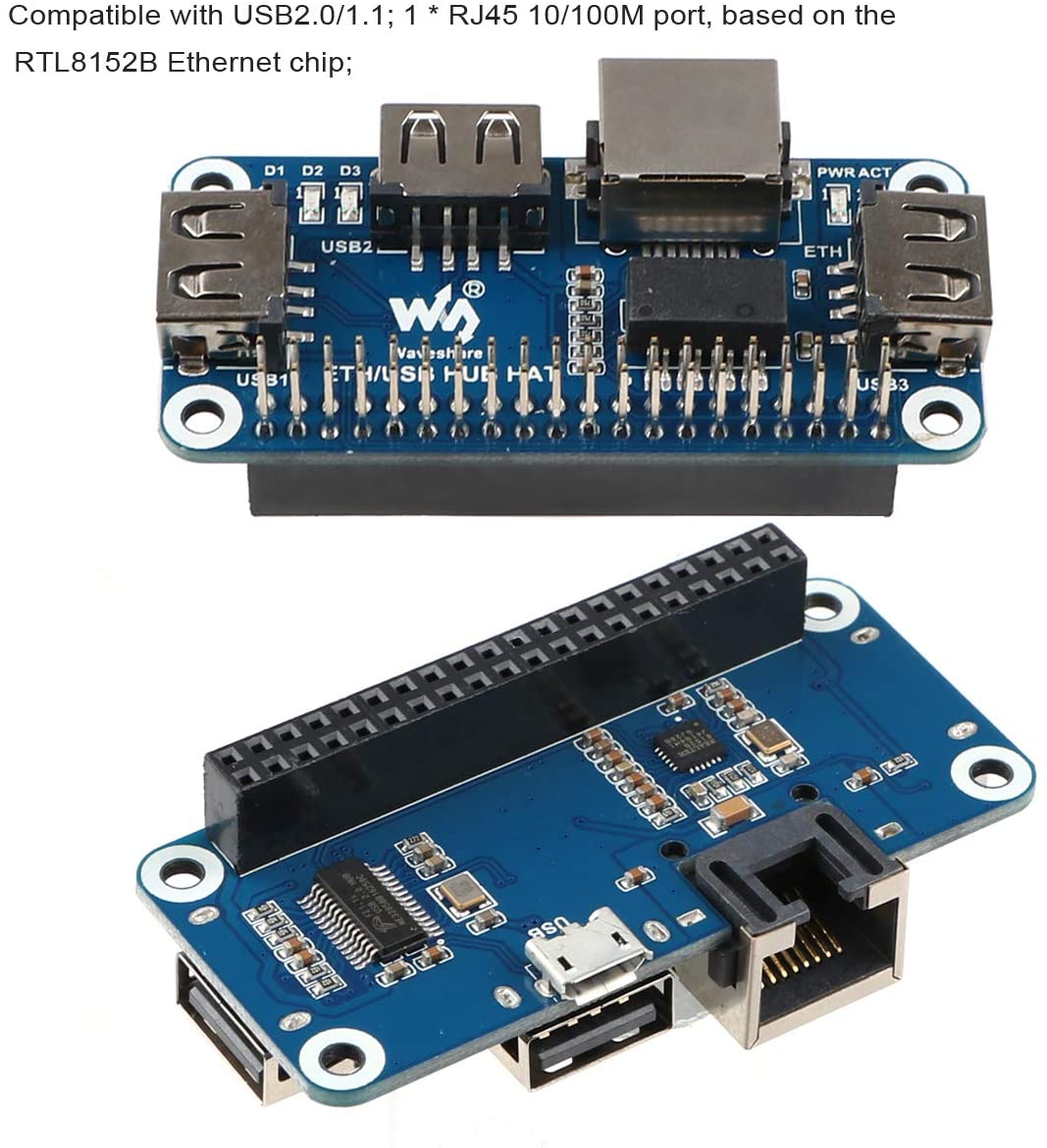

3 * USB ports, compatible with USB2.0/1.1
1 * RJ45 10/100M port, based on the RTL8152B Ethernet chip
Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port

Specifications
Operating voltage: 5V
Dimension: 65mm * 30mm
Mounting hole size: 3.0mm

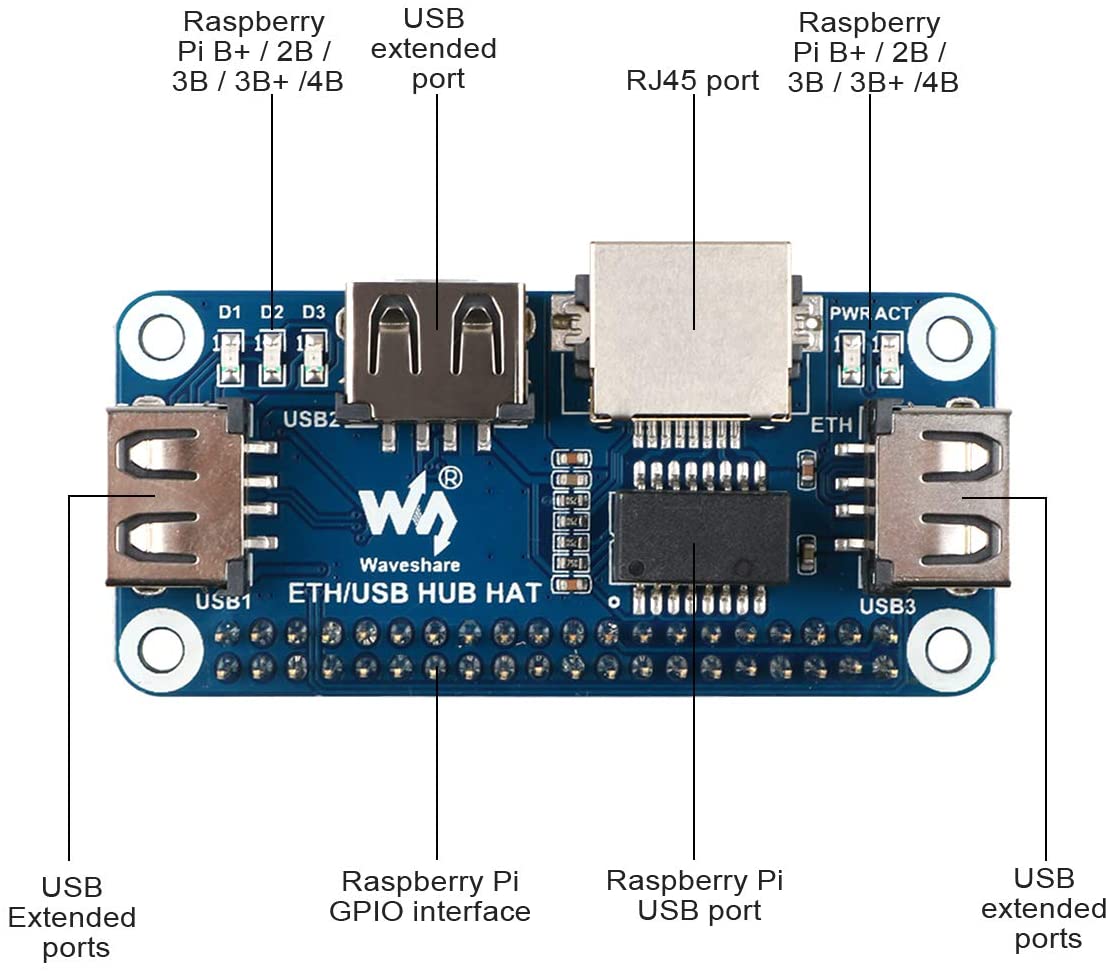

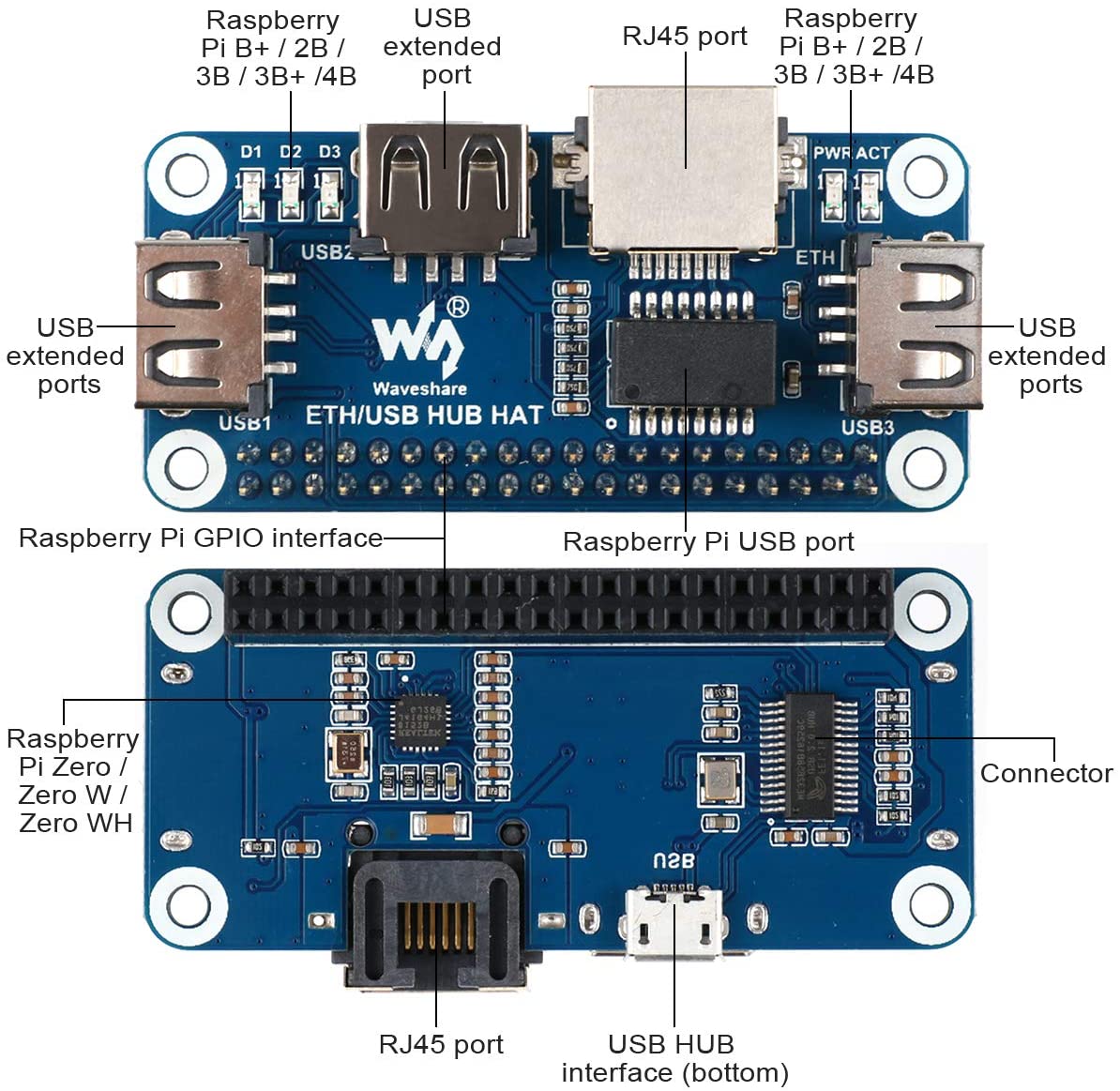

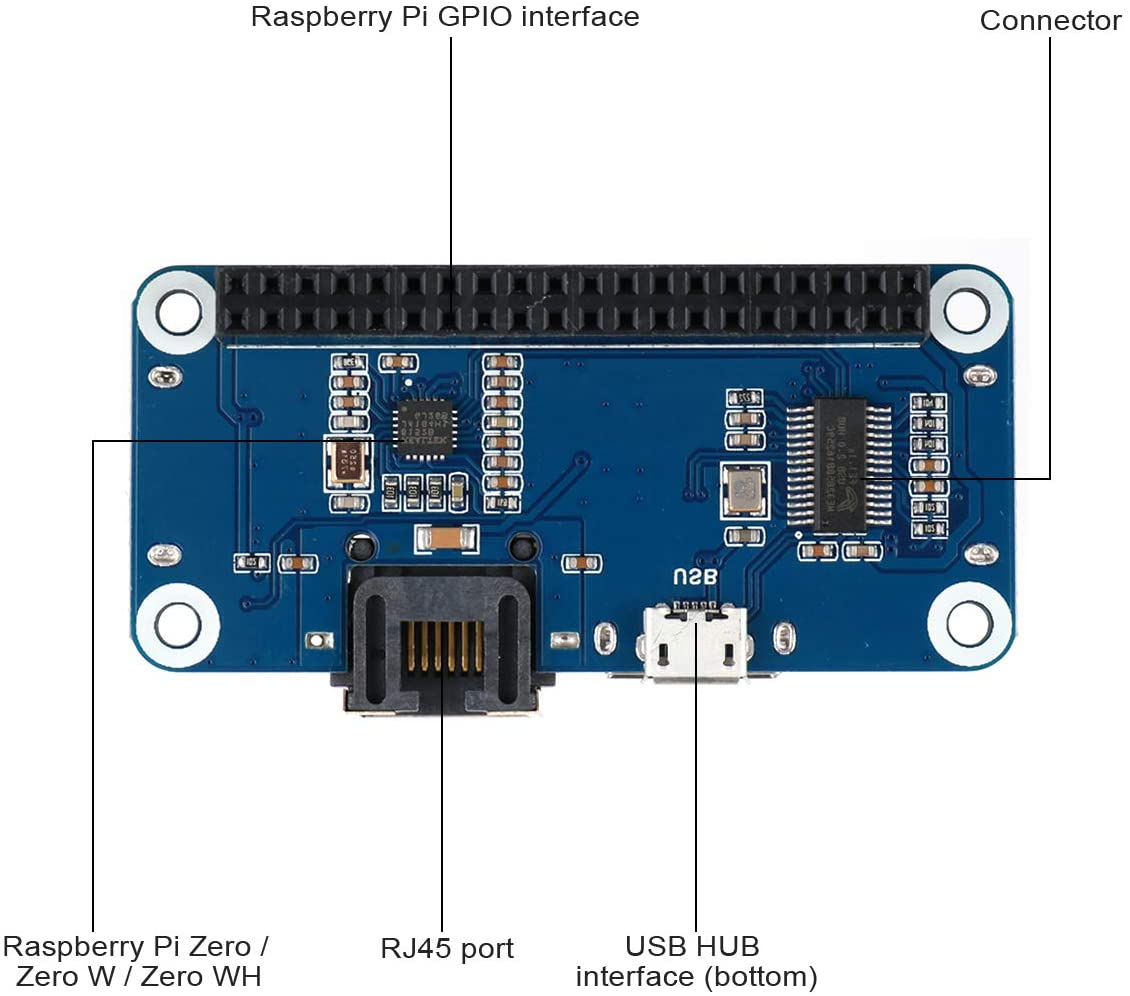

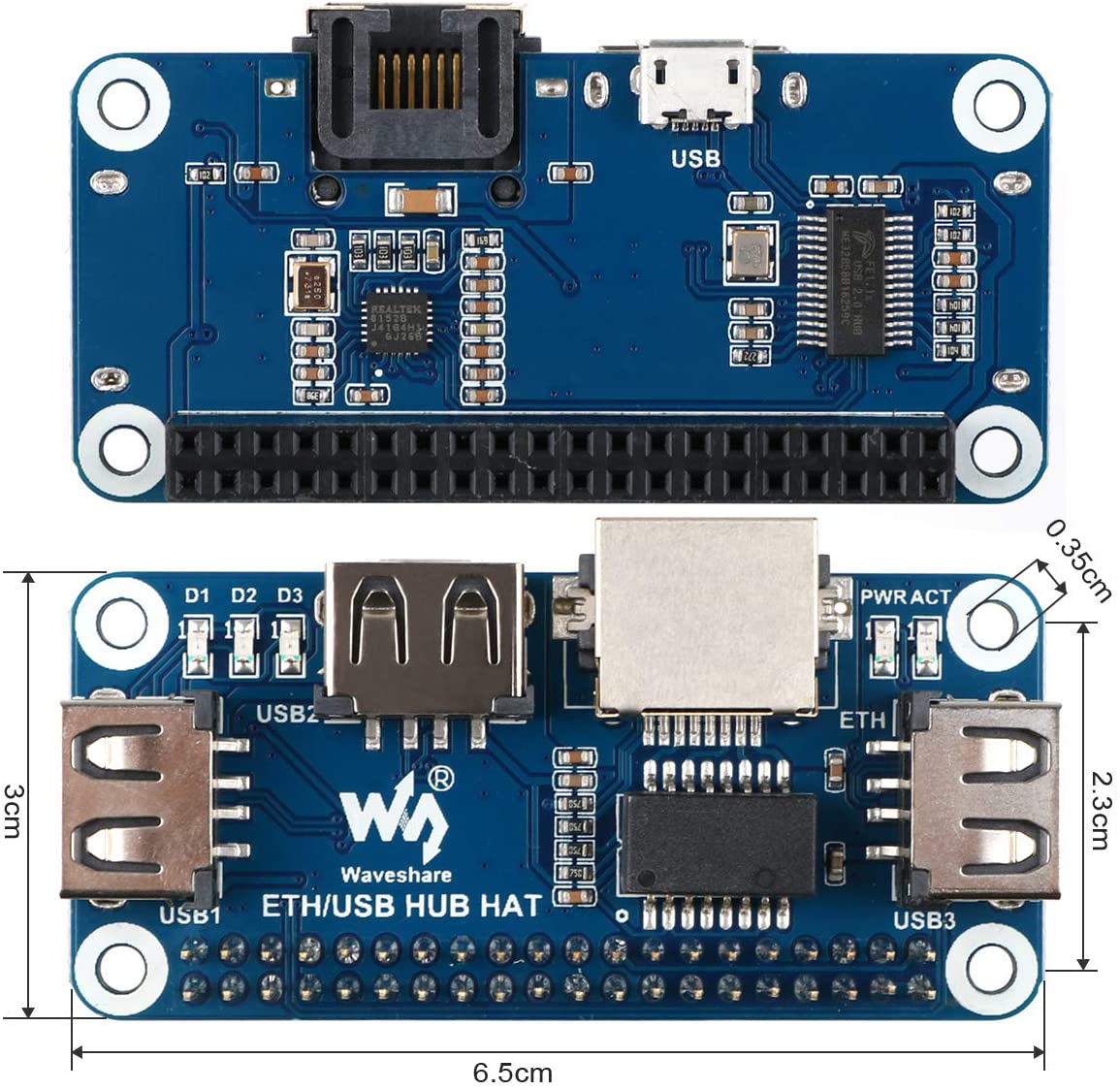

What's on the board?
1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
2. USB extended ports: USB1~USB3
3. RJ45 port: 10/100M Ethernet interface
4. USB HUB interface (bottom): for connecting the HUB to the 5.Raspberry Pi USB port
6. Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB 7.connector
8. Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable
9. TS8121A: Ethernet wave filter
10. RTL8152B: 10/100M Ethernet chip
11. FE1.1S: USB HUB chip
12. LED indicators:
PWR: power indicator
ACT: Ethernet indicator
D1~D3: dedicated indicator for USB1~USB3 respectively

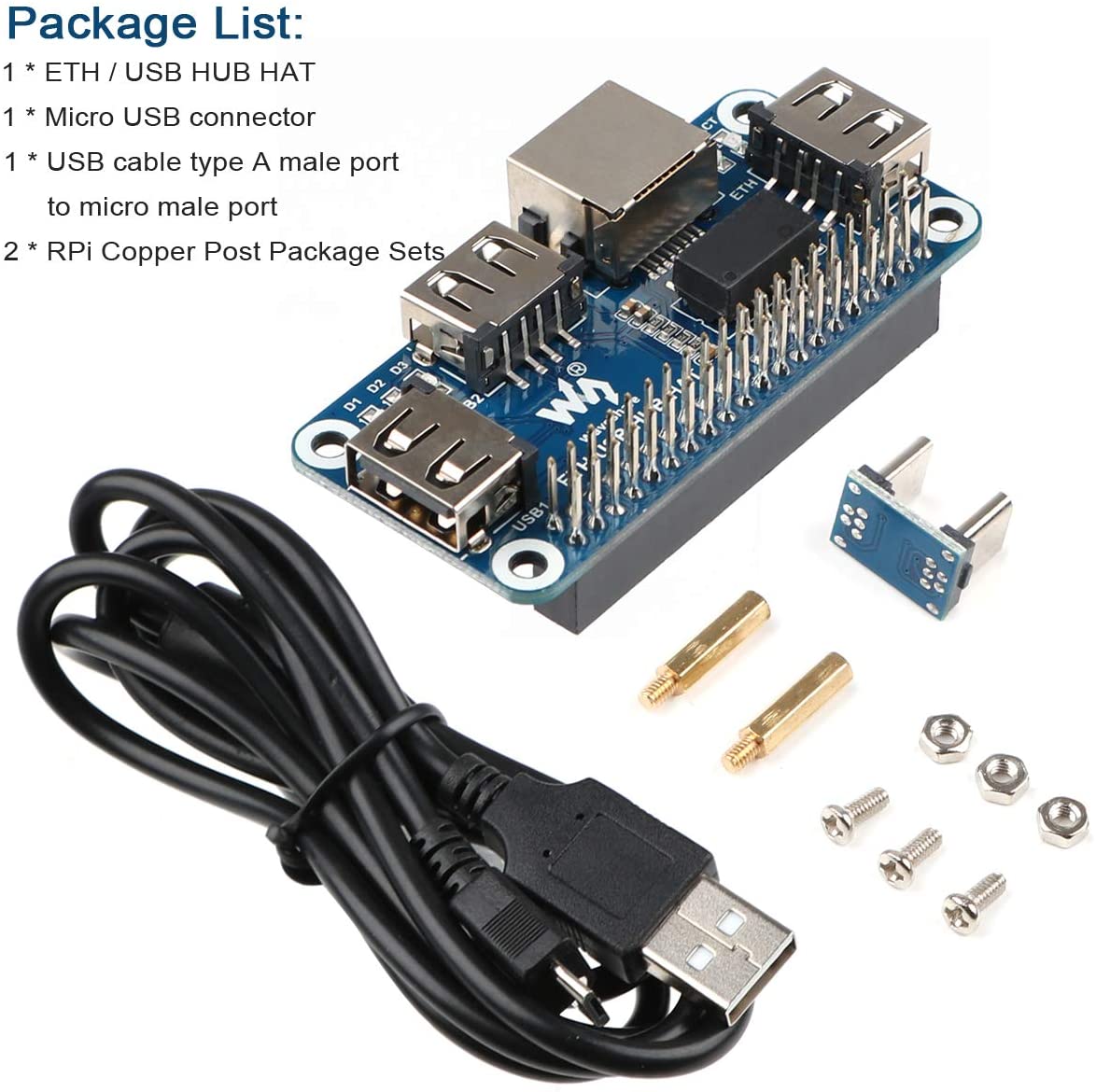

Package Including:
1 * ETH / USB HUB HAT
1 * Micro USB connector
1 * USB cable type A male port to micro male port
2 * RPi Copper Post Package Sets
