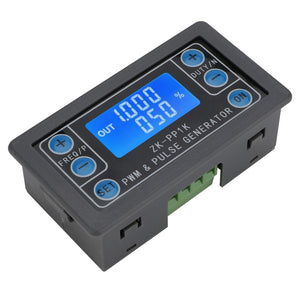

PWM Signal Generator Pulse Square Wave Rectangular Adjustable Signal Generator Dual for Robot Arm
PWM Signal Generator Pulse Square Wave Rectangular Adjustable Signal Generator Dual Mode 1Hz-150KHz Duty Cycle 0-100% DC 3.3V~30V for DC Motor, Stepper Motor Driver and Robot Arm
PWM Pulse Signal Generator - Use Manual:https://drive.google.com/open?id=18gaC9Z8gJvbD7oQbhhuugml6DyGqIwoD
Two Modes Can Be Selected, Switching Easily - There are PWM mode and pulse mode. Only one mode can be used at a time, but the two modes can be switched at any time
With Start-stop Button - External switch can also be used to control output signal ON/OFF
Wide Voltage Input - DC 3.3-30 V, with anti-reverse protection, 5.08 mm terminal wiring;Please ensure that the input and output wiring is correct before power on, otherwise it may burn the circuit!
Application: Used to generate a square wave rectangular wave signal, which is supplied to DC motors, stepper motor drivers, stepper motors, servo motors, electric gripper, robot arm.
Product description
Description:

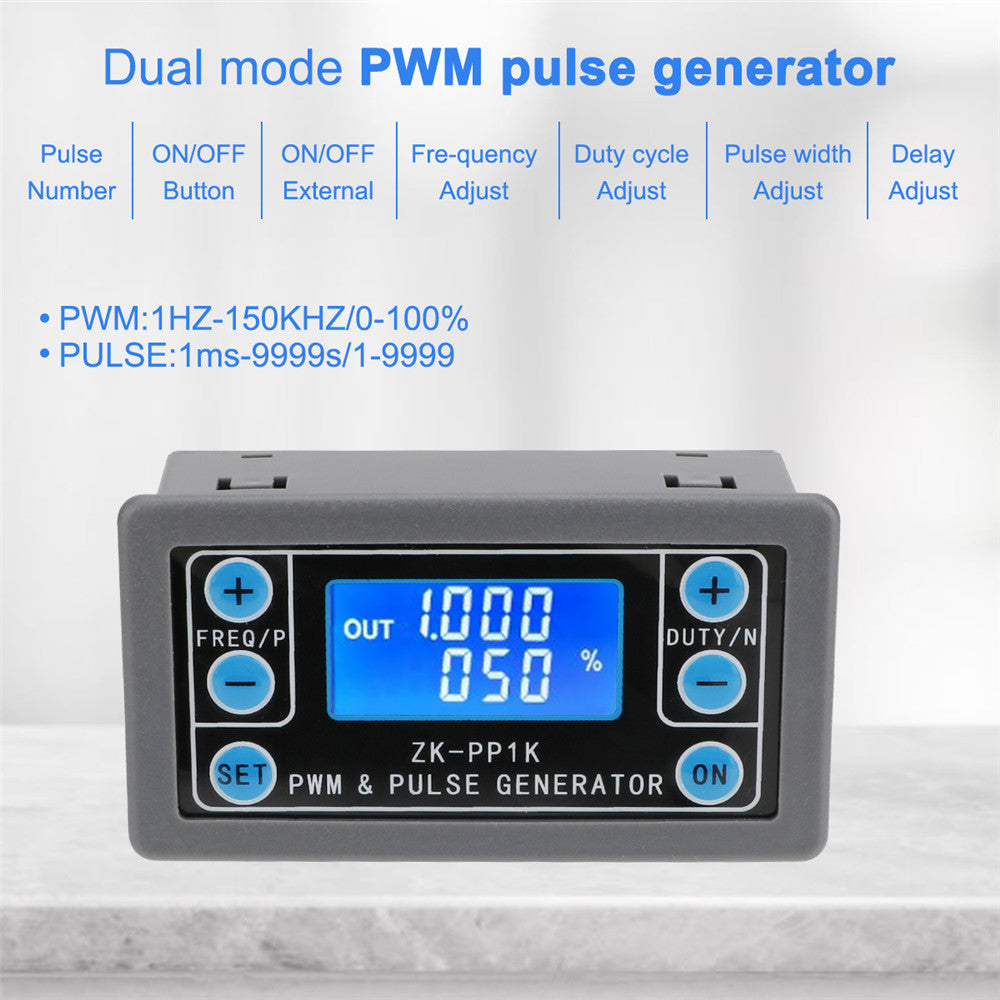

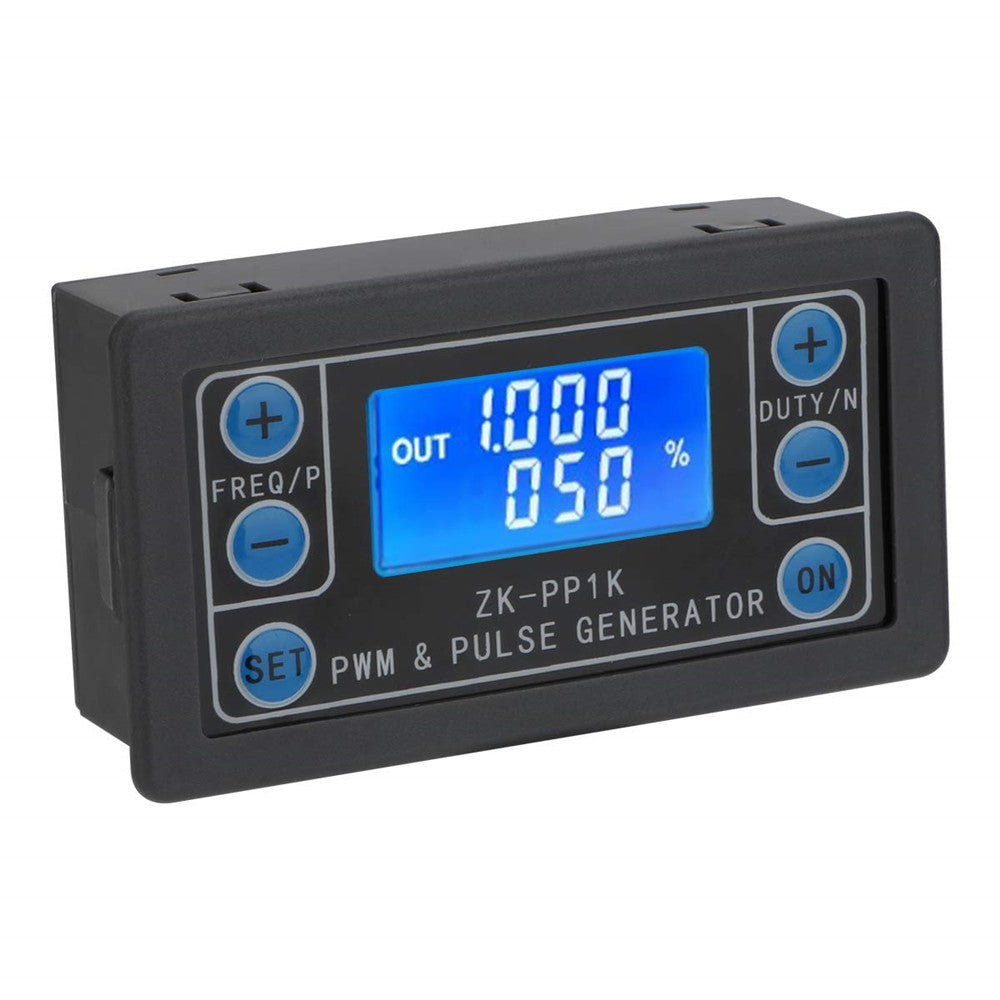

This is a PWM and pulse signal generator. There are PWM mode and pulse mode. Only one mode can be used at a time, but the two modes can be switched at any time.
Features:

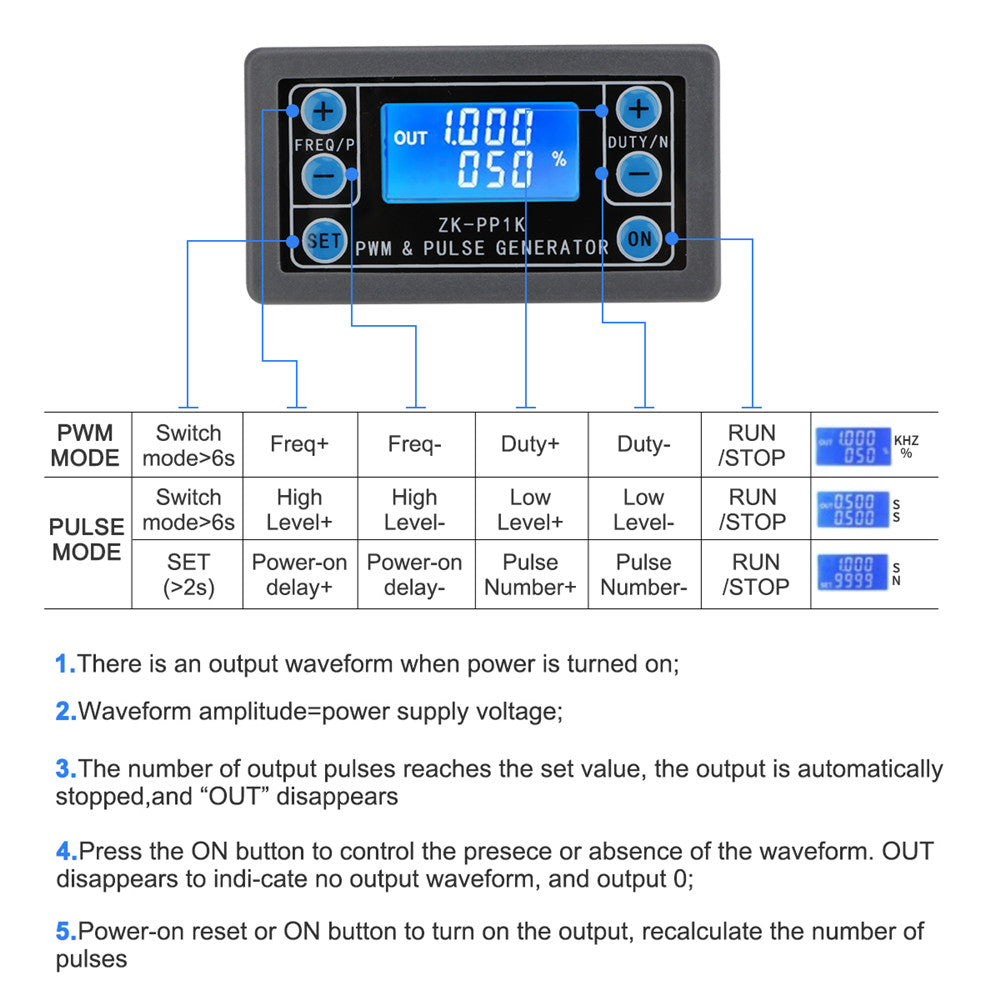

1. Two modes can be selected
PWM mode - frequency (continuous), duty cycle, Pulse number is not adjustable, continue to send waveform;
PULSE mode - positive pulse width time, negative pulse width time, delayed start time, and adjustable number of pulses.
2. With Start-stop Button(external switch can also be used to control output signal ON/OFF)

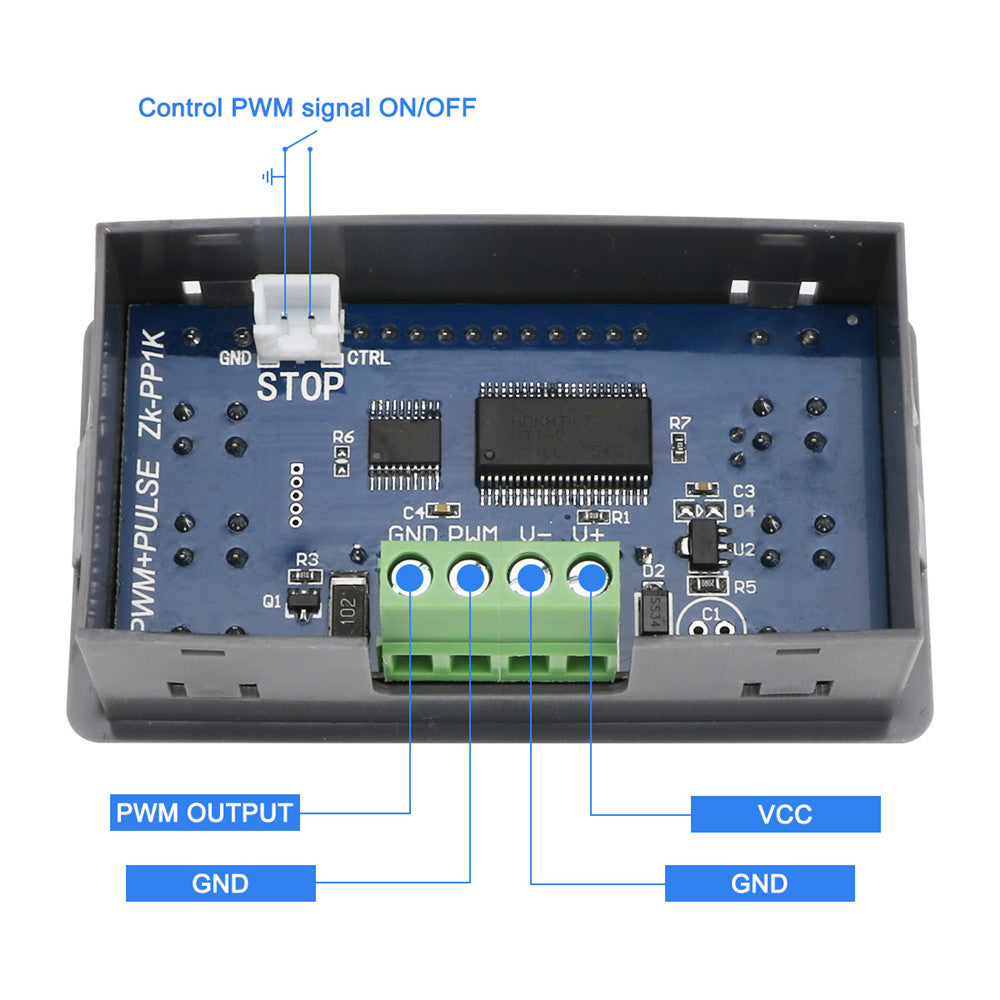

3. Wide Voltage Input: 3.3-30V, with anti-reverse protection, 5.08mm terminal wiring
Parameters:
-Working Voltage: DC 3.3V~30V
-Frequency Range: 1Hz~150KHz, accuracy about 1%
-Duty Cycle Range: 0-100%, 1% stepping
-Number of Pulses: 1-9999, or infinite (display '----' stands for infinity)
-Delay Output Time: 0.000s-9999s, the minimum can be set 1ms
-Positive and Negative Pulse Width Length: 0.000s- 9999s, the minimum can be set 1ms
-Signal Loading Capacity: less than 30mA
-Output signal amplitude: amplitude is equal to the supply voltage

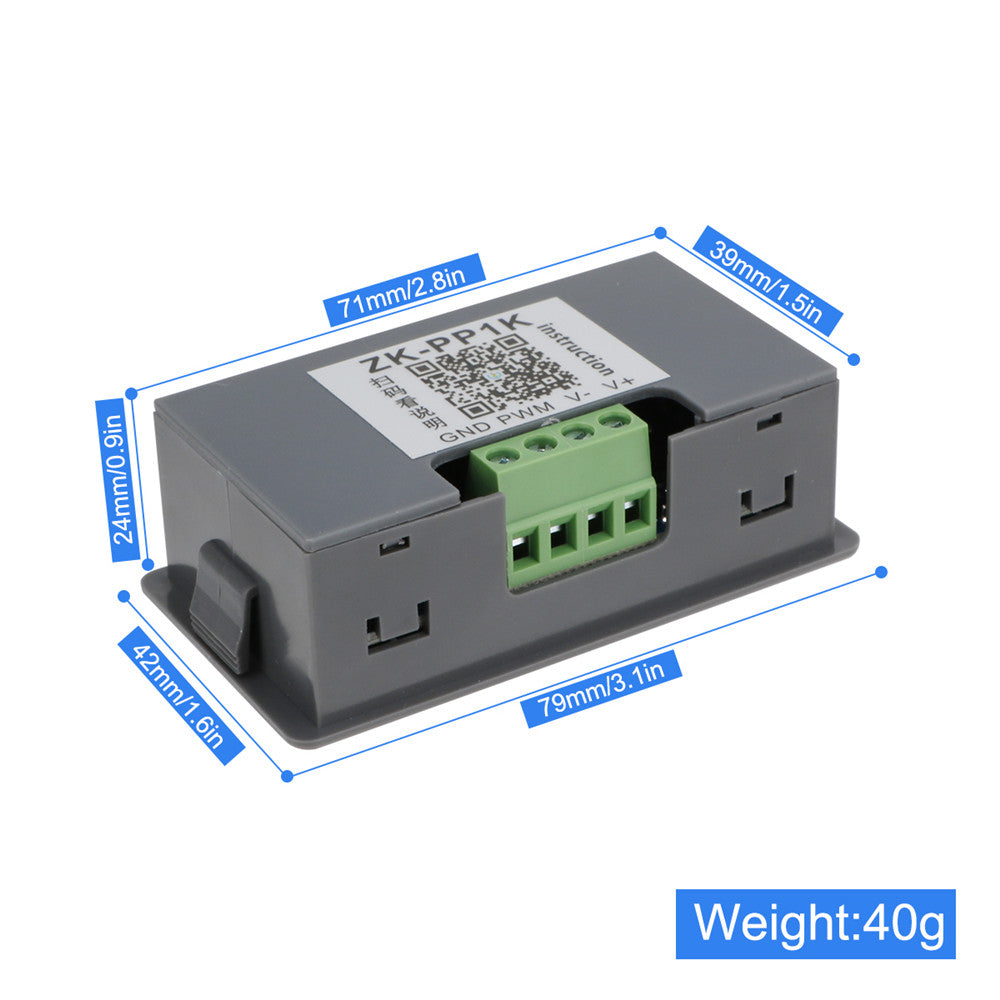

-Size: 79mm*43mm*30mm
-Weight: 40g
Attention:
1. Please ensure that the input and output wiring is correct before power on, otherwise it may burn the circuit.
2. The module shall not be affected by moisture, shall not make the components on the circuit board short-circuit, shall not touch the pins and pads of the components on the board by hand.
PWM Pulse Signal Generator - Use Manual:https://drive.google.com/open?id=18gaC9Z8gJvbD7oQbhhuugml6DyGqIwoD
Two Modes Can Be Selected, Switching Easily - There are PWM mode and pulse mode. Only one mode can be used at a time, but the two modes can be switched at any time
With Start-stop Button - External switch can also be used to control output signal ON/OFF
Wide Voltage Input - DC 3.3-30 V, with anti-reverse protection, 5.08 mm terminal wiring;Please ensure that the input and output wiring is correct before power on, otherwise it may burn the circuit!
Application: Used to generate a square wave rectangular wave signal, which is supplied to DC motors, stepper motor drivers, stepper motors, servo motors, electric gripper, robot arm.
Product description
Description:
This is a PWM and pulse signal generator. There are PWM mode and pulse mode. Only one mode can be used at a time, but the two modes can be switched at any time.
Features:
1. Two modes can be selected
PWM mode - frequency (continuous), duty cycle, Pulse number is not adjustable, continue to send waveform;
PULSE mode - positive pulse width time, negative pulse width time, delayed start time, and adjustable number of pulses.
2. With Start-stop Button(external switch can also be used to control output signal ON/OFF)
3. Wide Voltage Input: 3.3-30V, with anti-reverse protection, 5.08mm terminal wiring
Parameters:
-Working Voltage: DC 3.3V~30V
-Frequency Range: 1Hz~150KHz, accuracy about 1%
-Duty Cycle Range: 0-100%, 1% stepping
-Number of Pulses: 1-9999, or infinite (display '----' stands for infinity)
-Delay Output Time: 0.000s-9999s, the minimum can be set 1ms
-Positive and Negative Pulse Width Length: 0.000s- 9999s, the minimum can be set 1ms
-Signal Loading Capacity: less than 30mA
-Output signal amplitude: amplitude is equal to the supply voltage
-Size: 79mm*43mm*30mm
-Weight: 40g
Attention:
1. Please ensure that the input and output wiring is correct before power on, otherwise it may burn the circuit.
2. The module shall not be affected by moisture, shall not make the components on the circuit board short-circuit, shall not touch the pins and pads of the components on the board by hand.
