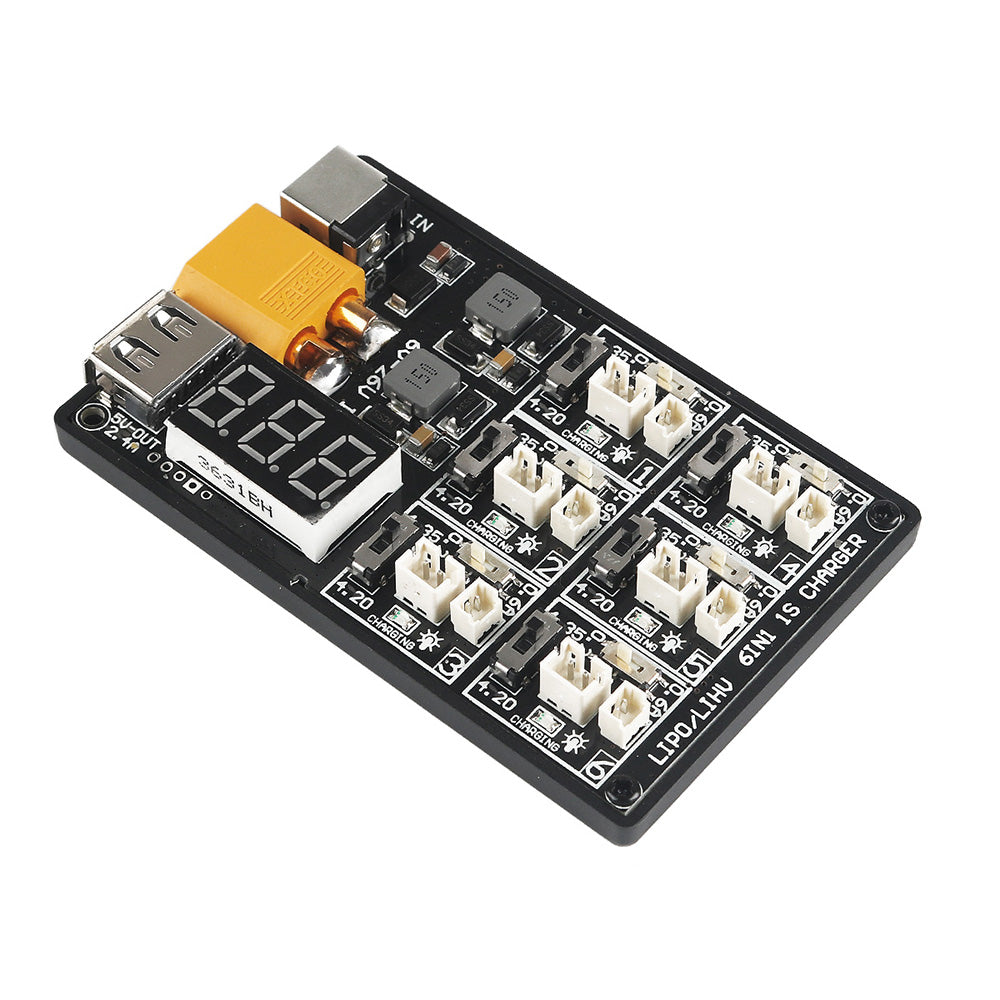

1S LiPo LiHV Charger Board with JST and Micro Losi Cable

MakerFocus

  • $14.99
    Unit price per
  • Save $2
Shipping calculated at checkout.


Product description

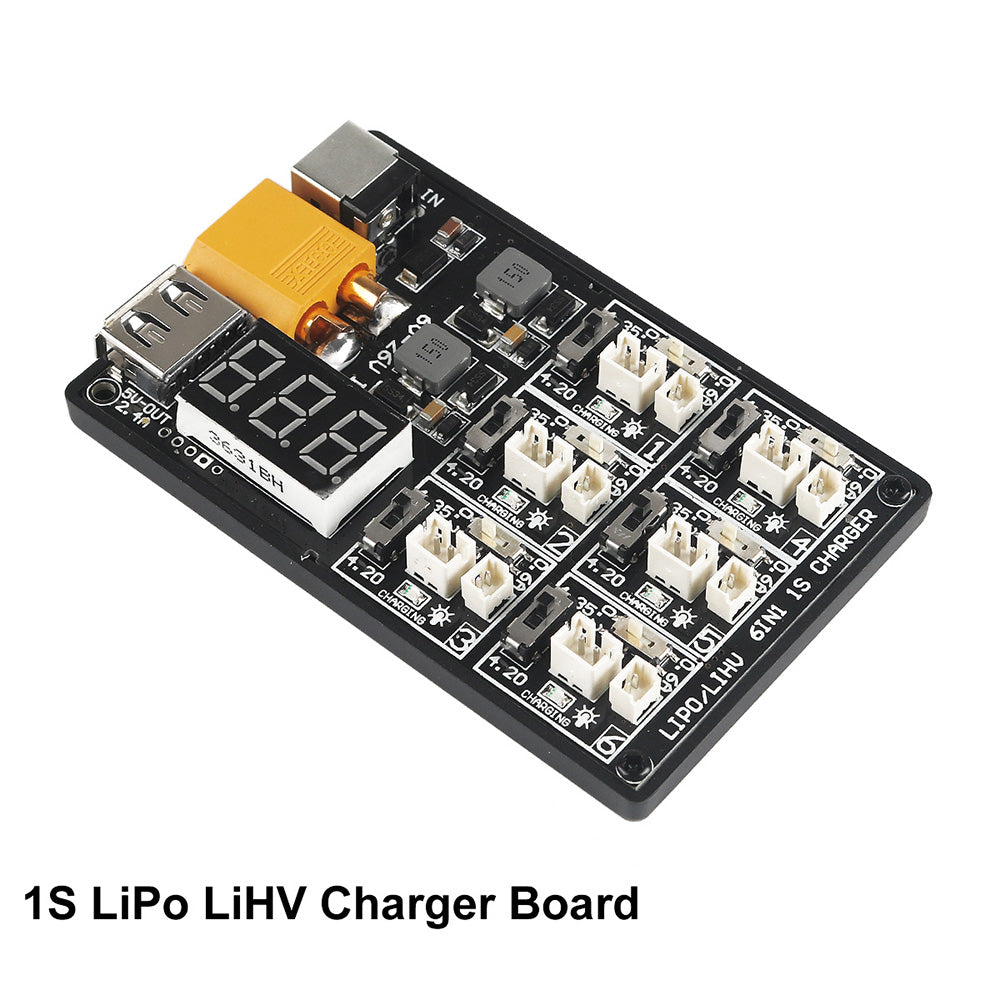

1S LiPo LiHV Charger Board with JST and Micro Losi Cable
This charger makes field charging your model plane, drone, or quadcopter easy! Just take any 3s or 4s lipo with an XT60 connector and plug it in to this charger and charge dozens of 1s packs. You could also use a wall adapter as supply power so you can continuously charge at home. Once supplied with a 3s or 4s battery, just plug your 1s batteries into the charger port to start charging. When you connect a discharged 1s battery to the charger the corresponding ports LED light will turn solid until the battery is fully charged. Once charged, the LED will turn flashing and you can remove your 1s battery and fly!
Specification:

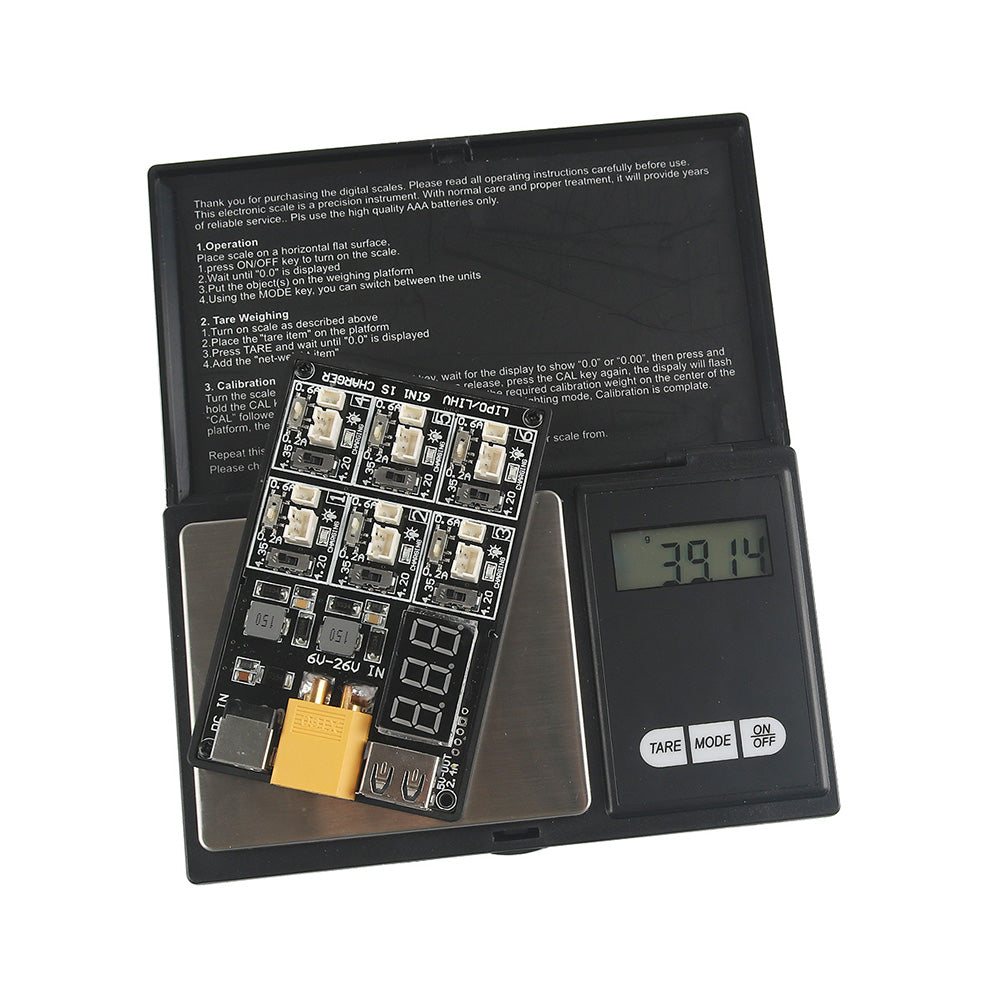

Weight: 50g
Dimensions: 80 x 50 x10 mm

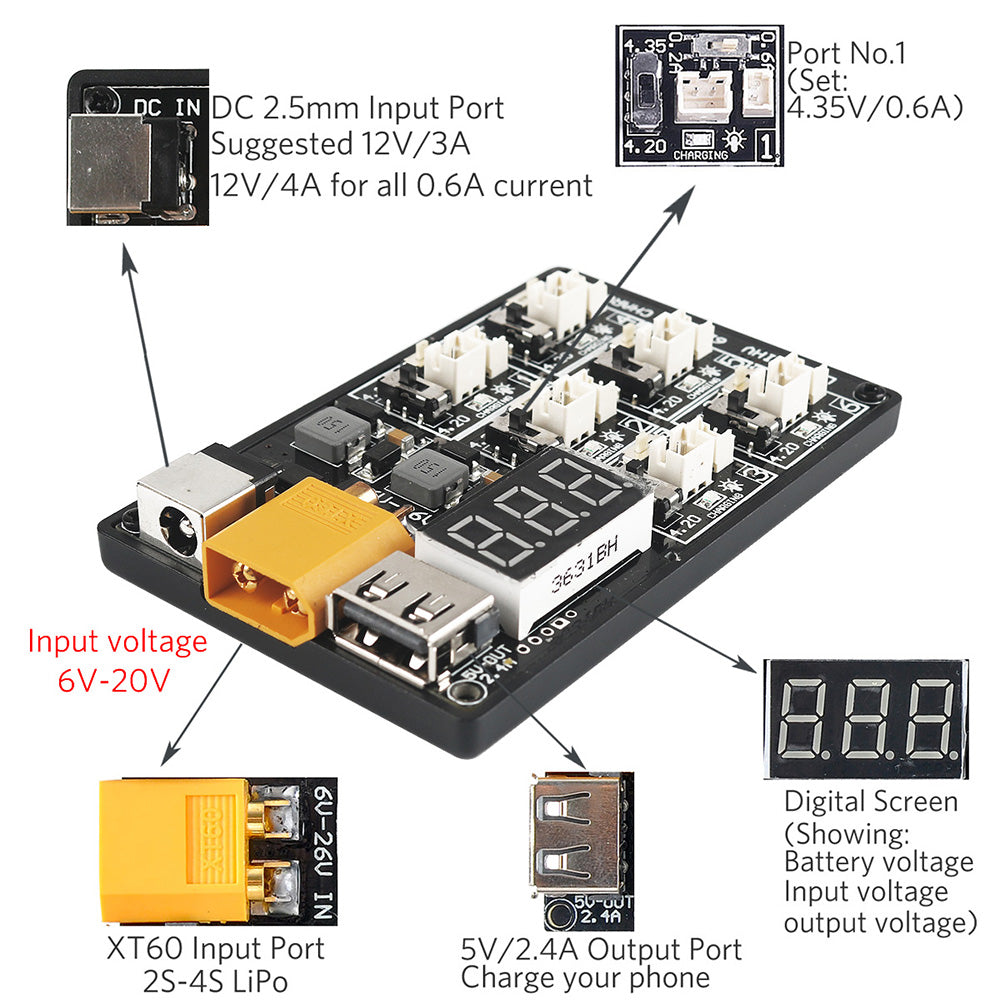

Input Voltage: 6-20V

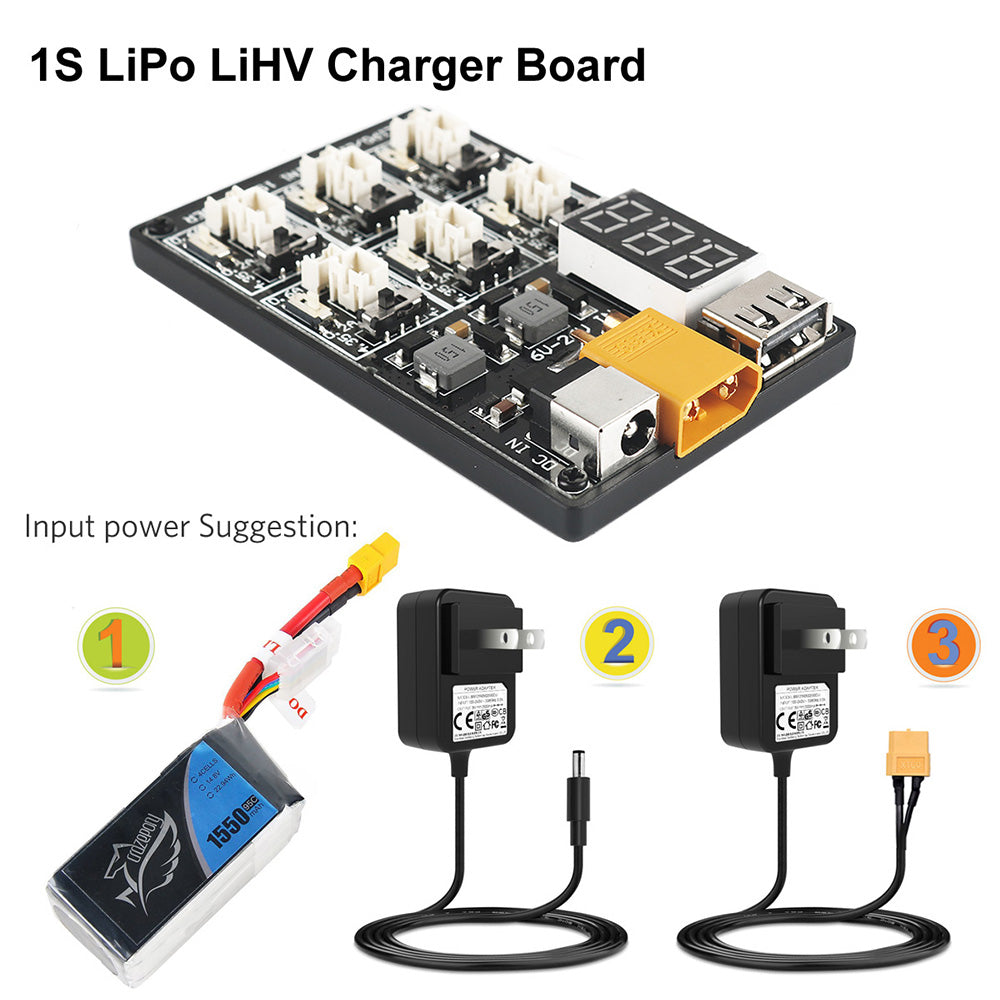

Input port: Two methods, DC 12V/3A Adapter, XT60 LiPo Battery or Adapter
Output port: USB 5V/2.4A

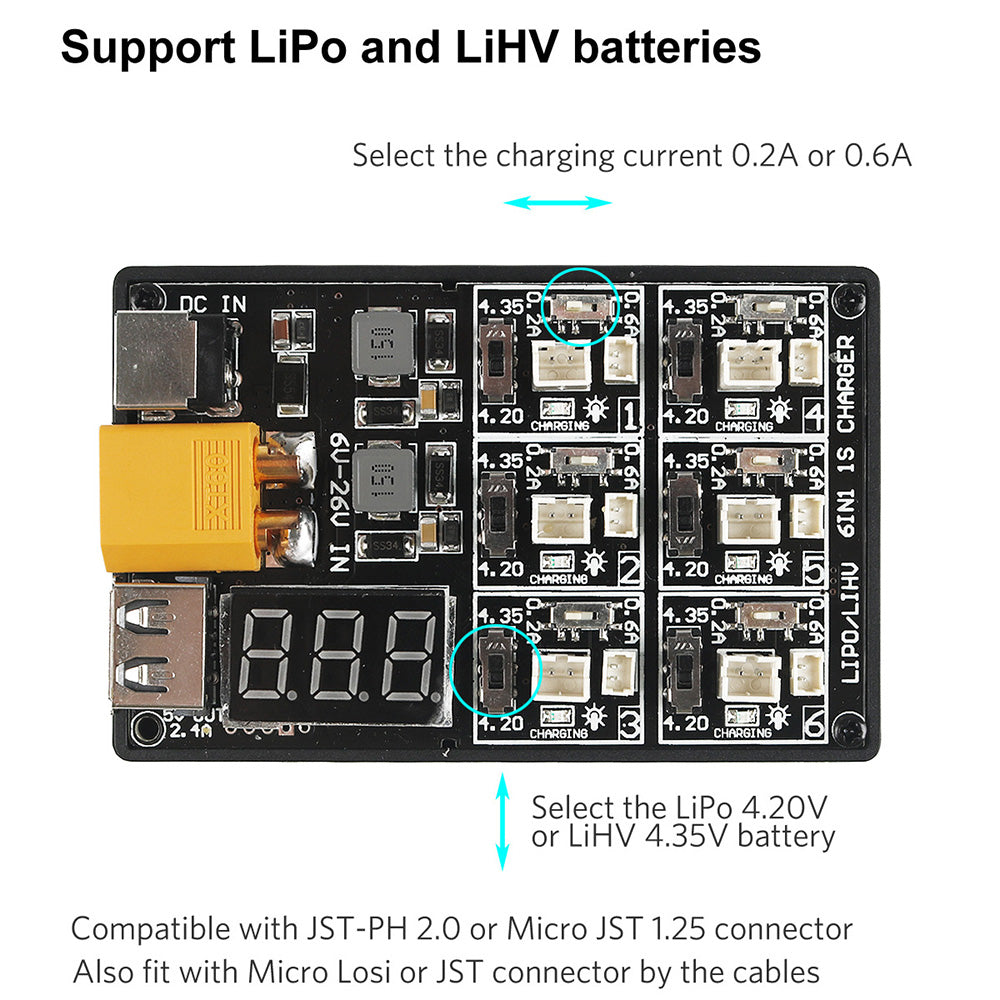

Charge port output: Selectable 200mA and 600mA, Max charge power: 2.5W
4.20V cell charging cutoff for Lipo battery (+- 0.5% margin of error)
4.35V cell charging cutoff for HV Lipo battery (+- 0.5% margin of error)
Optional AC Wall Adapter with XT60 Plug
Digital Display:
INP/xxV: Input voltage
CH1.....CH6/xxV: Inserted battery voltage
USB/xxV: USB output voltage

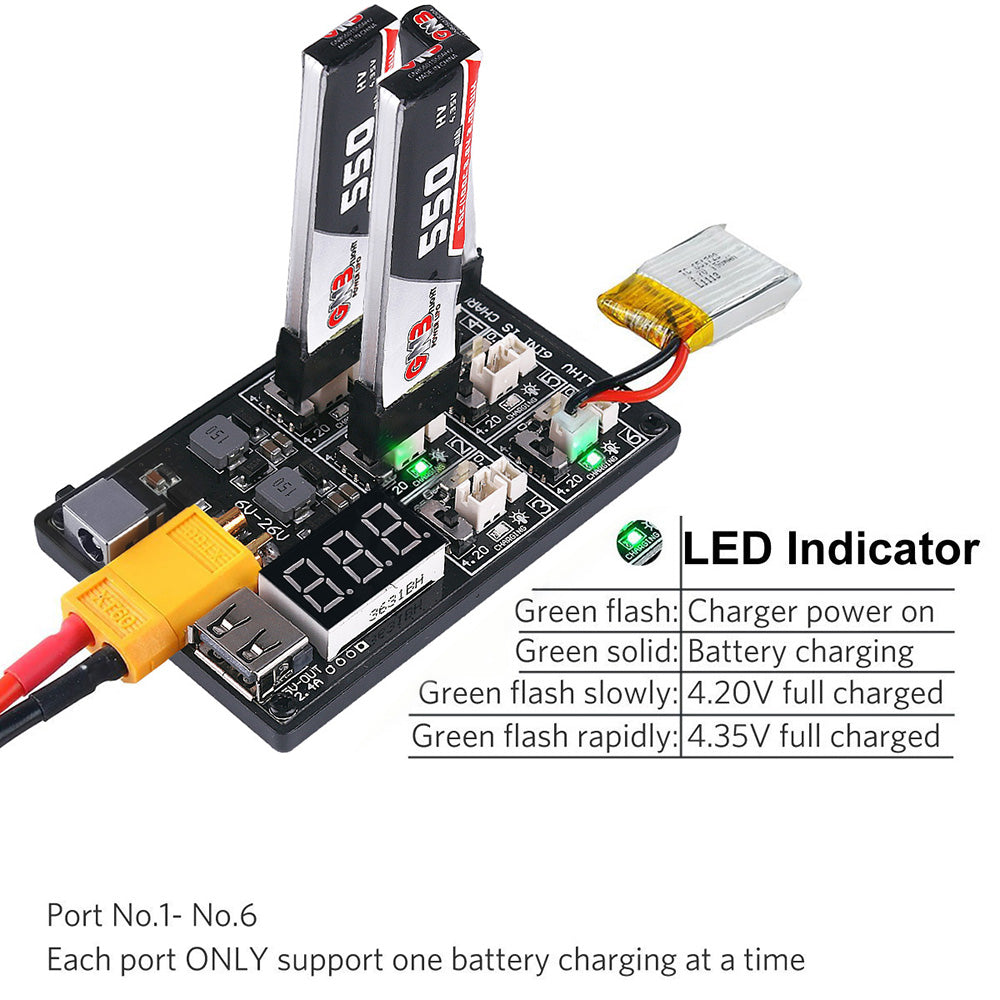

LED Indicators:
Green Flashing slowly: 4.20V selected
Green Flashing rapidly: 4.35V selected
Green Solid: Battery Charging
Green turn Flashing from Solid: Full Charged

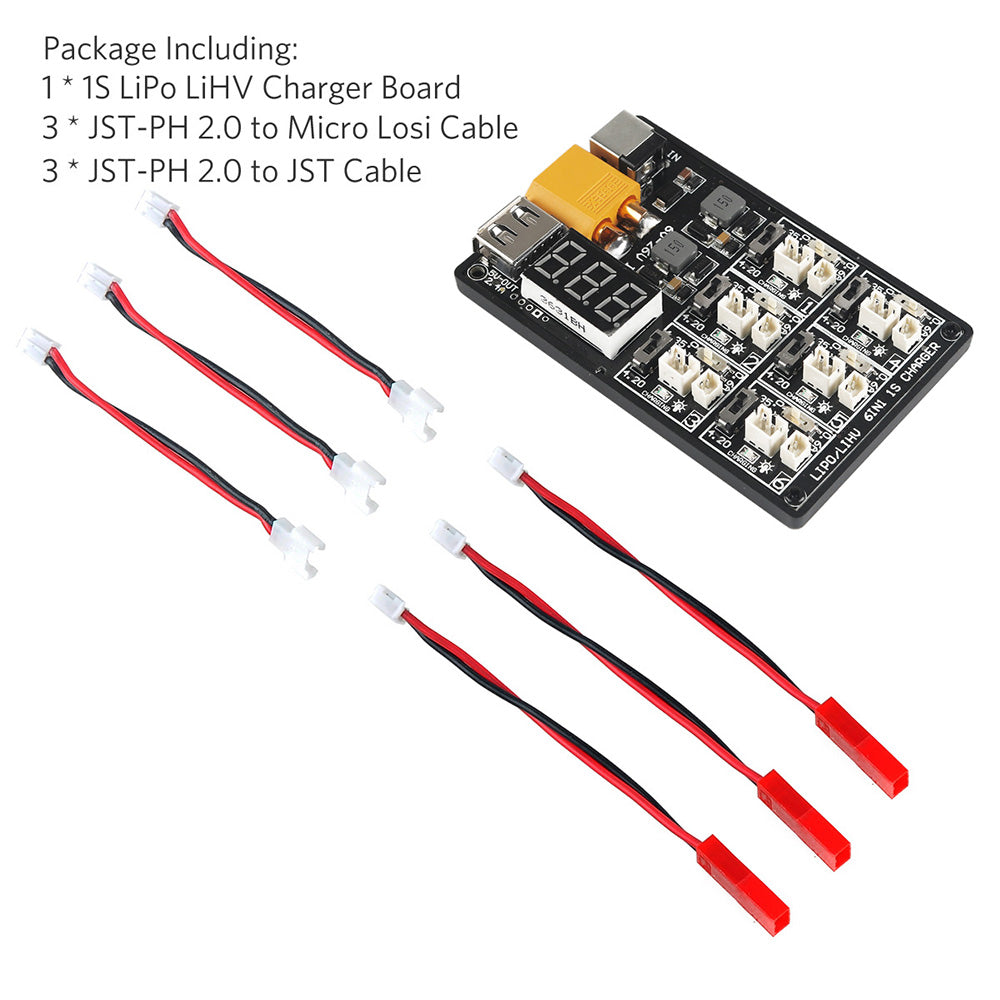

Package Including
1 * 1S LiPo LiHV Charger Board

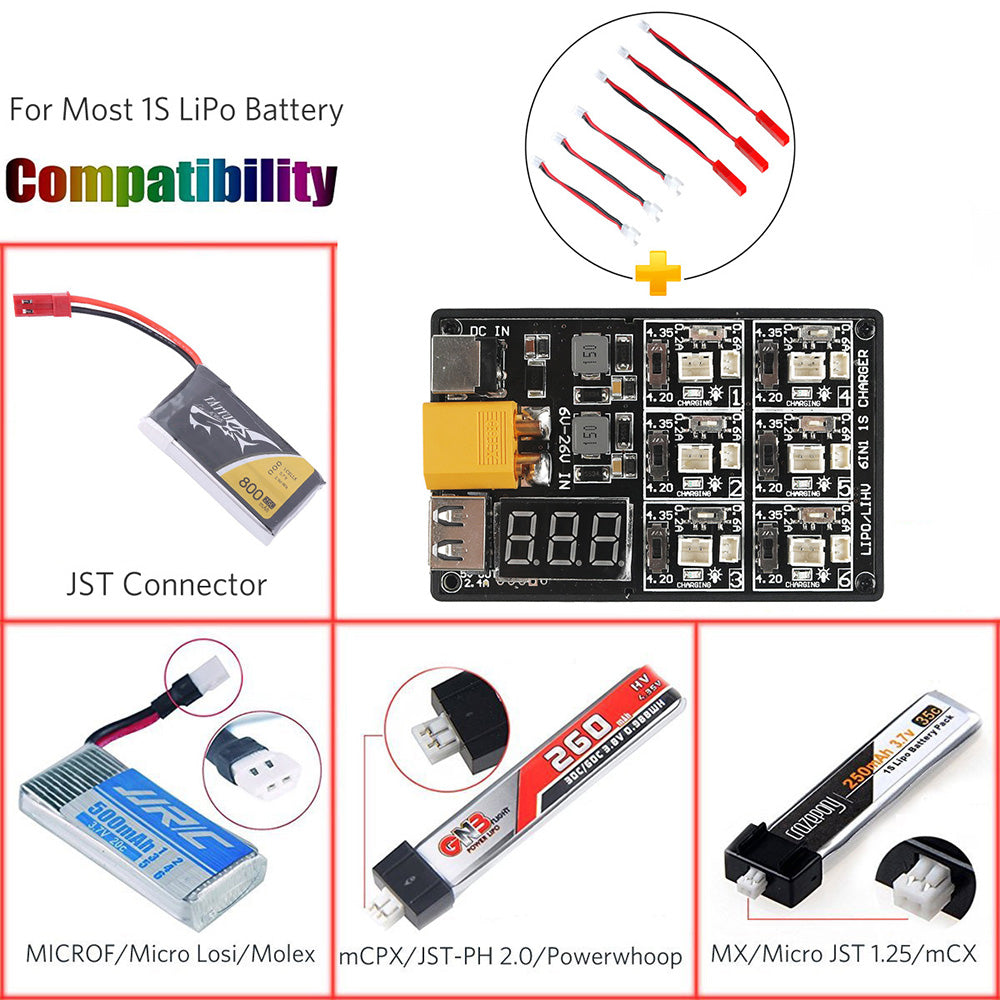

3 * JST-PH 2.0 Male to JST Female Cable
3 * JST-PH 2.0 Male to Micro Losi Female Cable
