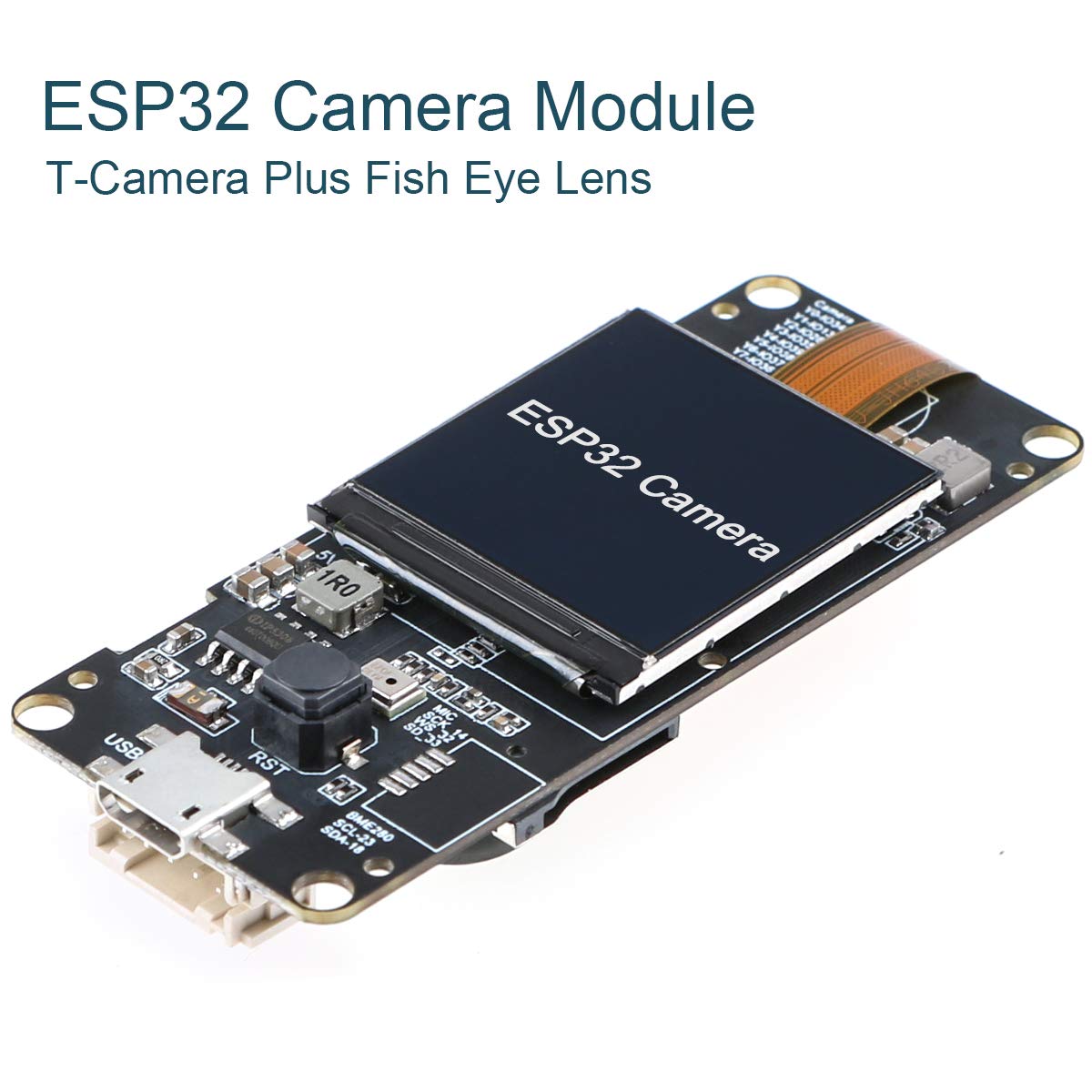

MakerFocus TTGO T-Camera Plus ESP32-DOWDQ6 8MB SPRAM Fish Eye Rear Camera
- $25.19
$27.99- $25.19
- Unit price
- per
Subtotal:
$25.19
Couldn't load pickup availability
Description
xDescription:

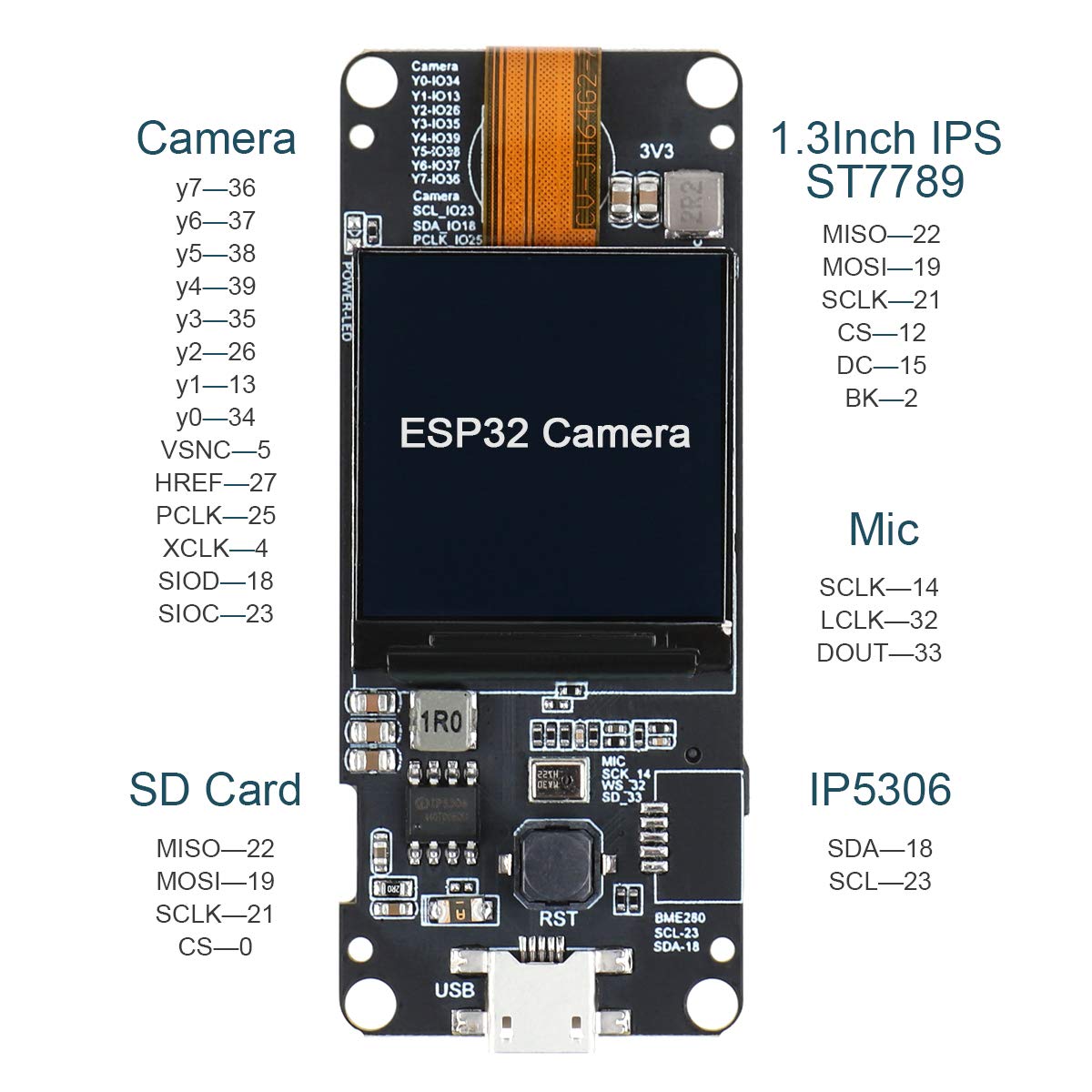

Hardware Specifications
Chipset: ESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
Flash: QSPI flash/SRAM, up to 4 x 16 MB
Sarm: 520 kB SRAM + 8MBytes External SPRAM
Key: Reset

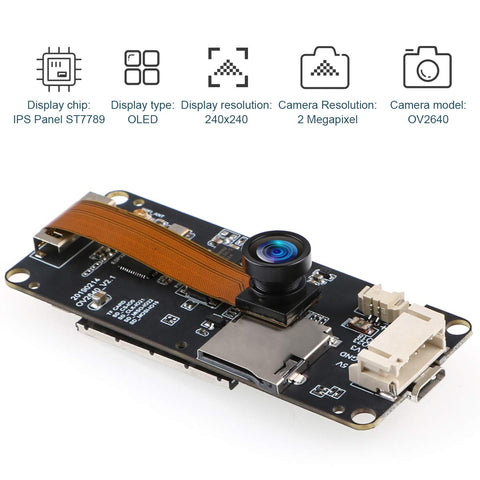

Dispaly: IPS Panel ST7789/1.3 Inch
Power Indicator Lamp: Red
USB to TTL: CP2104
Camera: OV2640 2Megapixel
On-Board Clock: 40MHz crystal oscillator

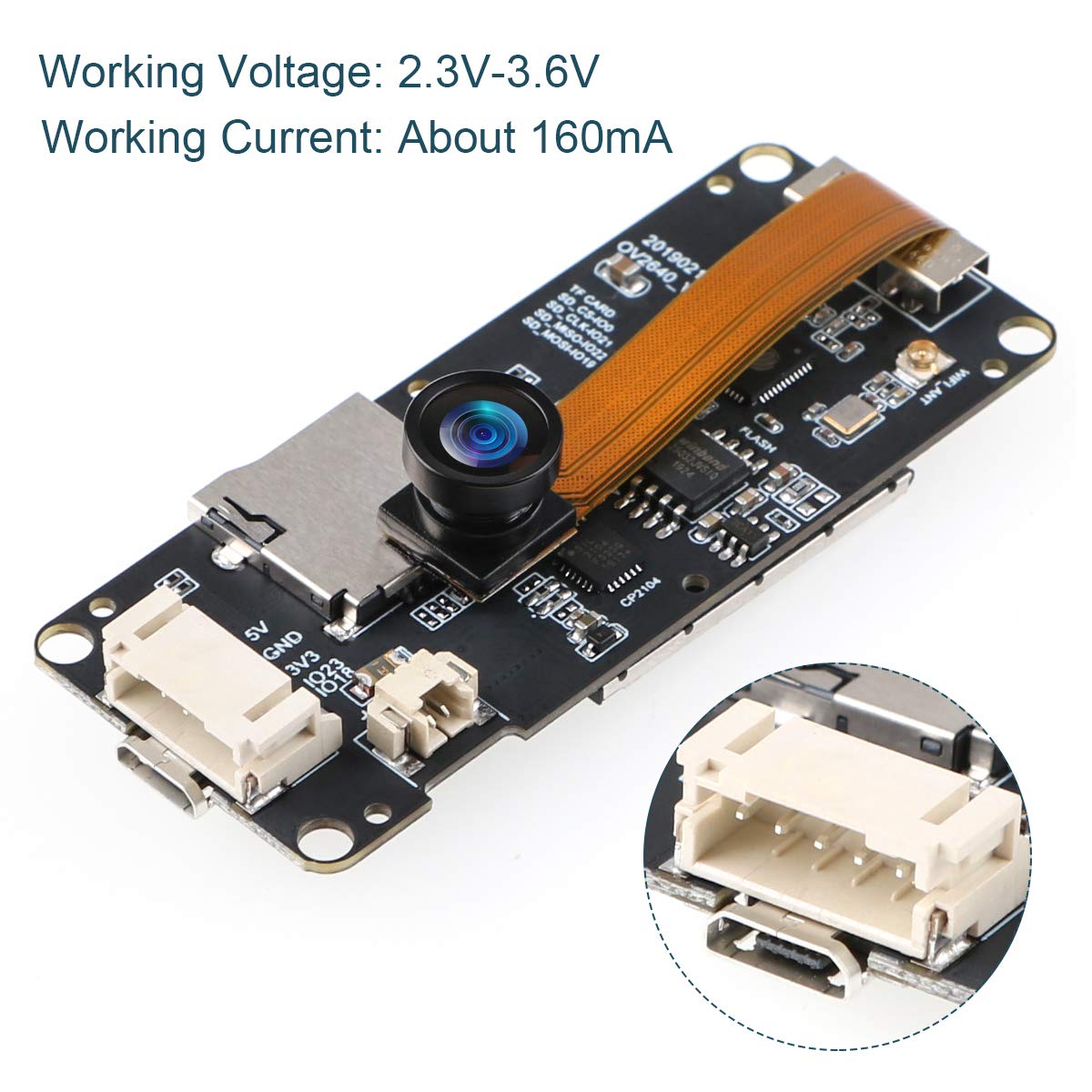

Working Voltage: 2.3V-3.6V
Working Current: About 160mA
Working Temperature Range: -40℃ ~ +85℃

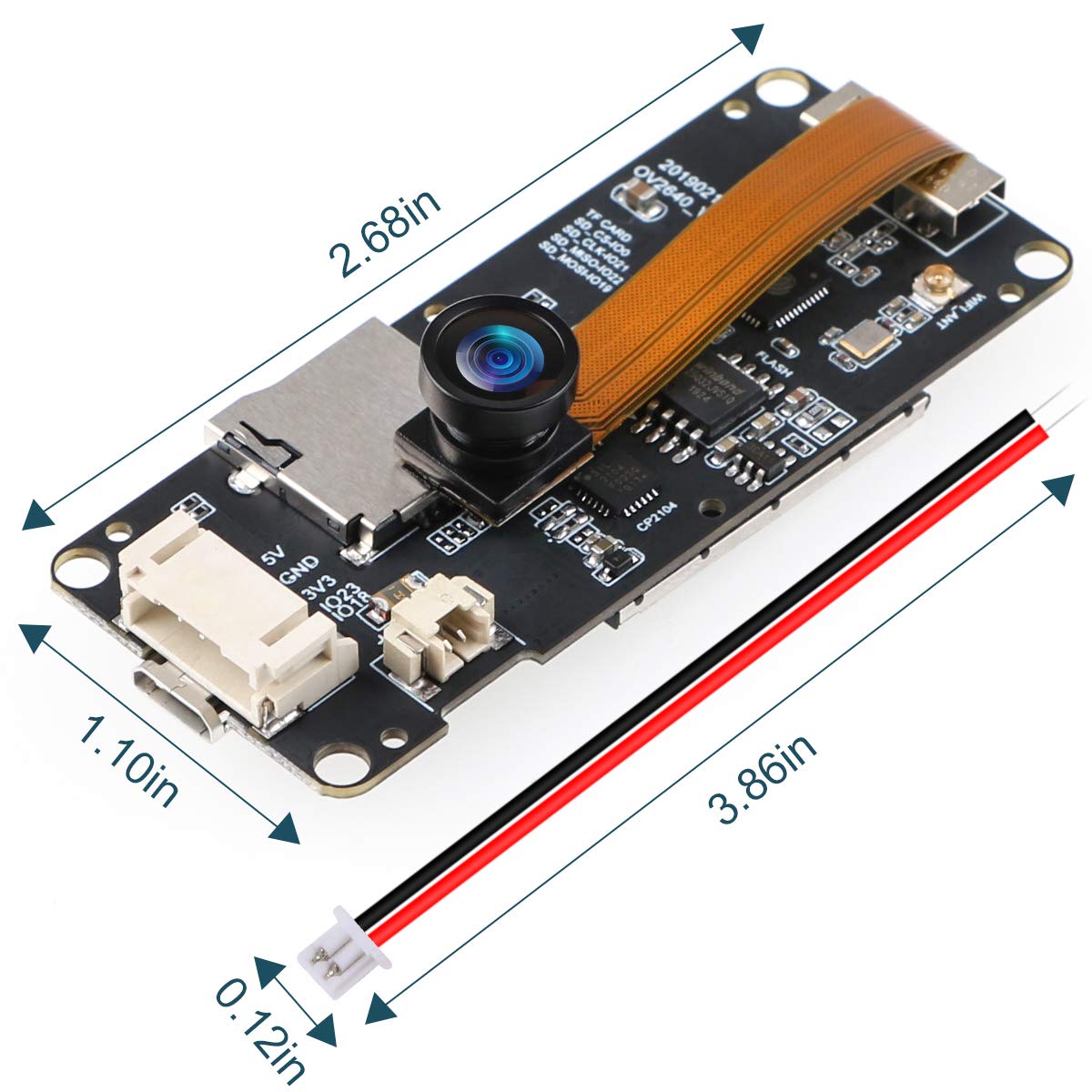

Size: 69.13*28.41*8.45mm
Mic: MSM261S4030H0
SDCard: Integrated external SD card slot
Power Management Chip: IP5306
Power Supply: USB 5V/1A
Charging Current: 1A
Battery: 3.7V lithium battery
WIFI
Standard: FCC/CE/TELEC/KCC/SRRC/NCC
Protocol: 802.11 b/g/n/e/i (802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval
Frequency Range: 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power: 22dBm
Communication Distance: 300m
Bluetooth
Protocol: meet bluetooth v4.2BR/EDR and BLE standard
Radio Frequency: with -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio Frequency: CVSD&SBC audio frequency
Software specification
Wifi Mode: Station/SoftAP/SoftAP+Station/P2P
Security Mechanism: WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type: AES/RSA/ECC/SHA
Firmware Upgrade: UART download/OTA（Through network/host to download and write firmware）
Software Development: Support cloud server development /SDK for user firmware development
Networking Protocol: IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration: AT + Instruction set, cloud server, android/iOSapp
OS: FreeRTOS
Data Download Link：https://github.com/Xinyuan-LilyGo/esp32-camera-screen.
github: https://github.com/Xinyuan-LilyGO/esp32-camera-plus-bigiot.
Packing List:
1 * ESP32 Camera Module T-Camera Plus Fish Eye Lens
