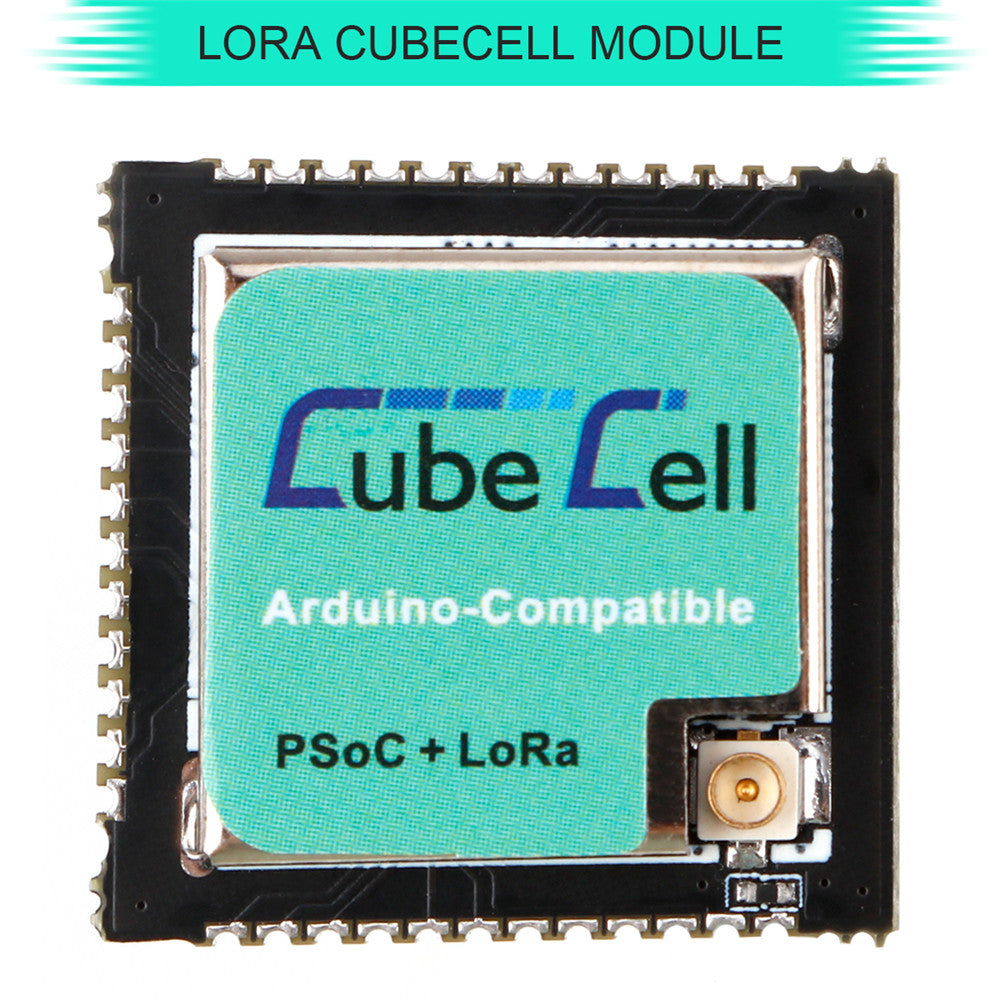

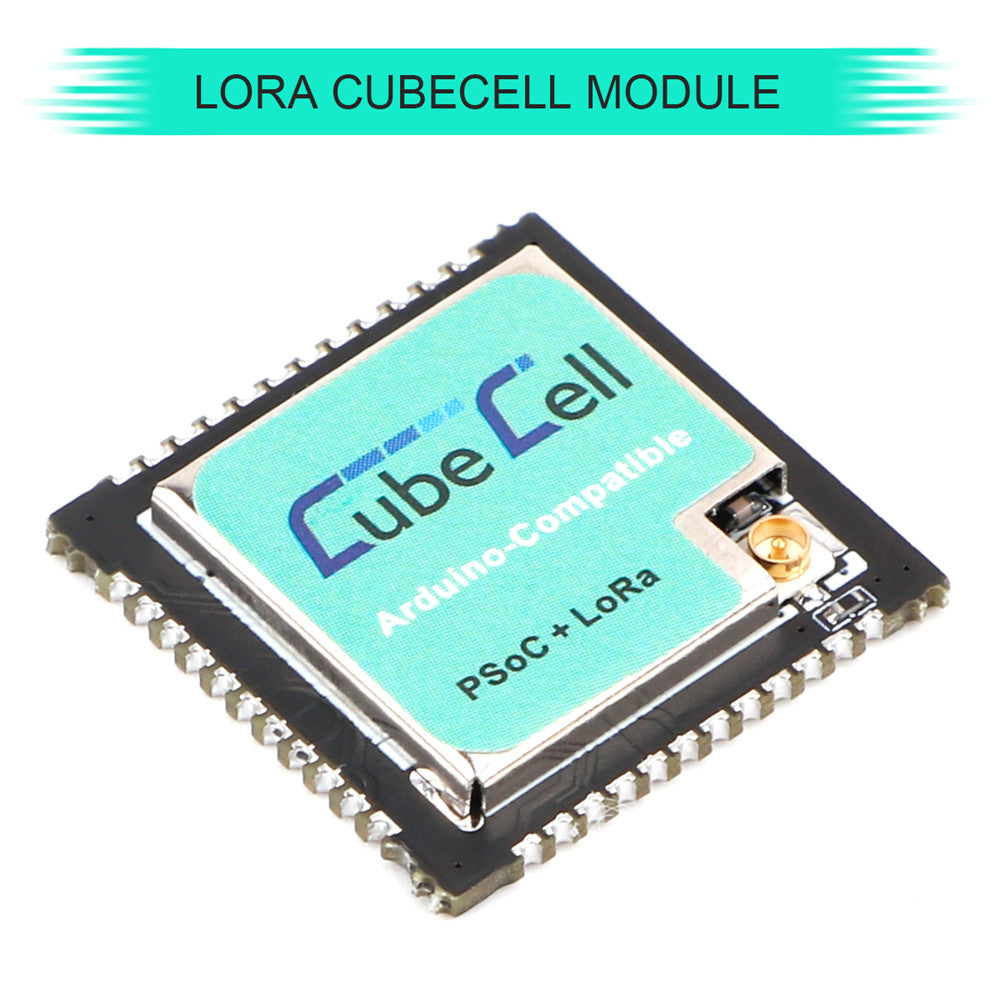

SX1262 Lora Module 868 915 MHZ LoRaWAN IoT Module ASR6502 MCU 128KB Flash for Arduino
- $15.95
$17.95- $15.95
- Unit price
- per
Subtotal:
$15.95
Couldn't load pickup availability
Description

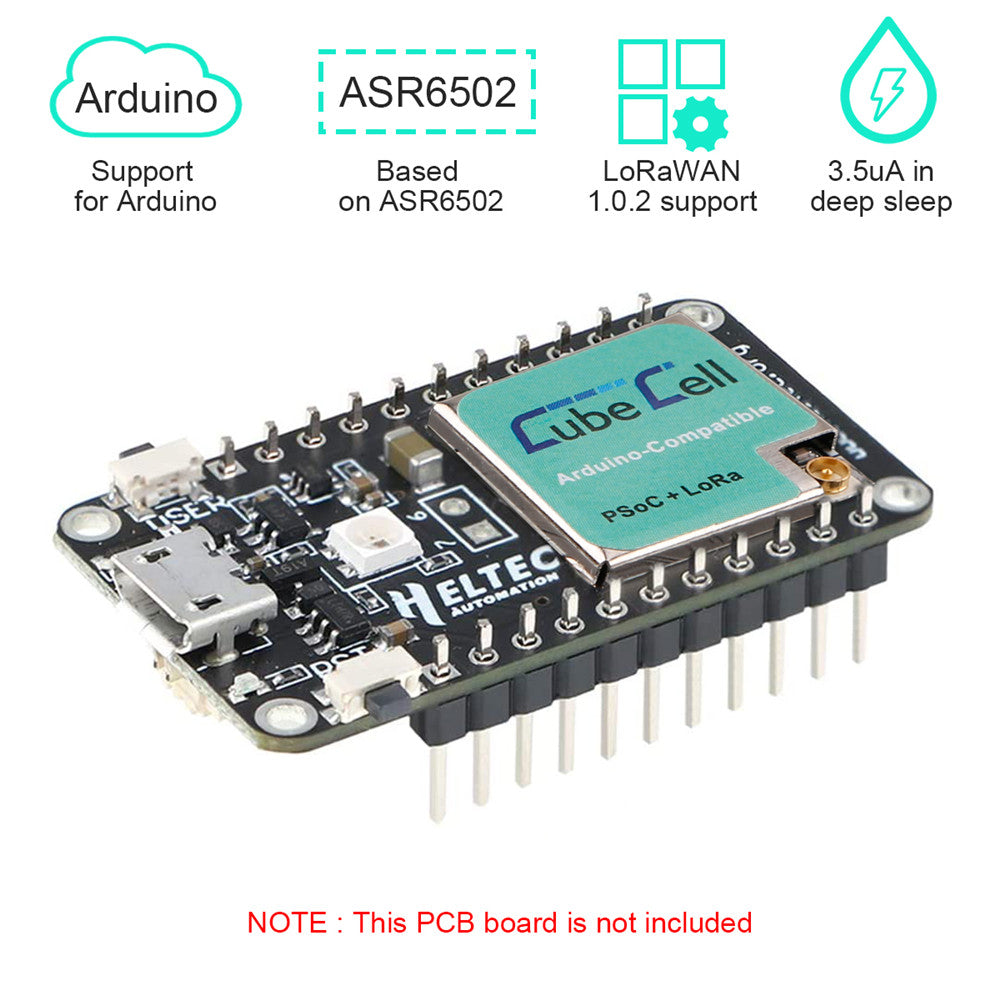

x[ Prototype Board ] This is a module, must work with other PCB board. [User Manual]-https://drive.google.com/file/d/1IER34odG3geEQSZ14ulJjjLPPjkC3aNp/view?usp=sharing

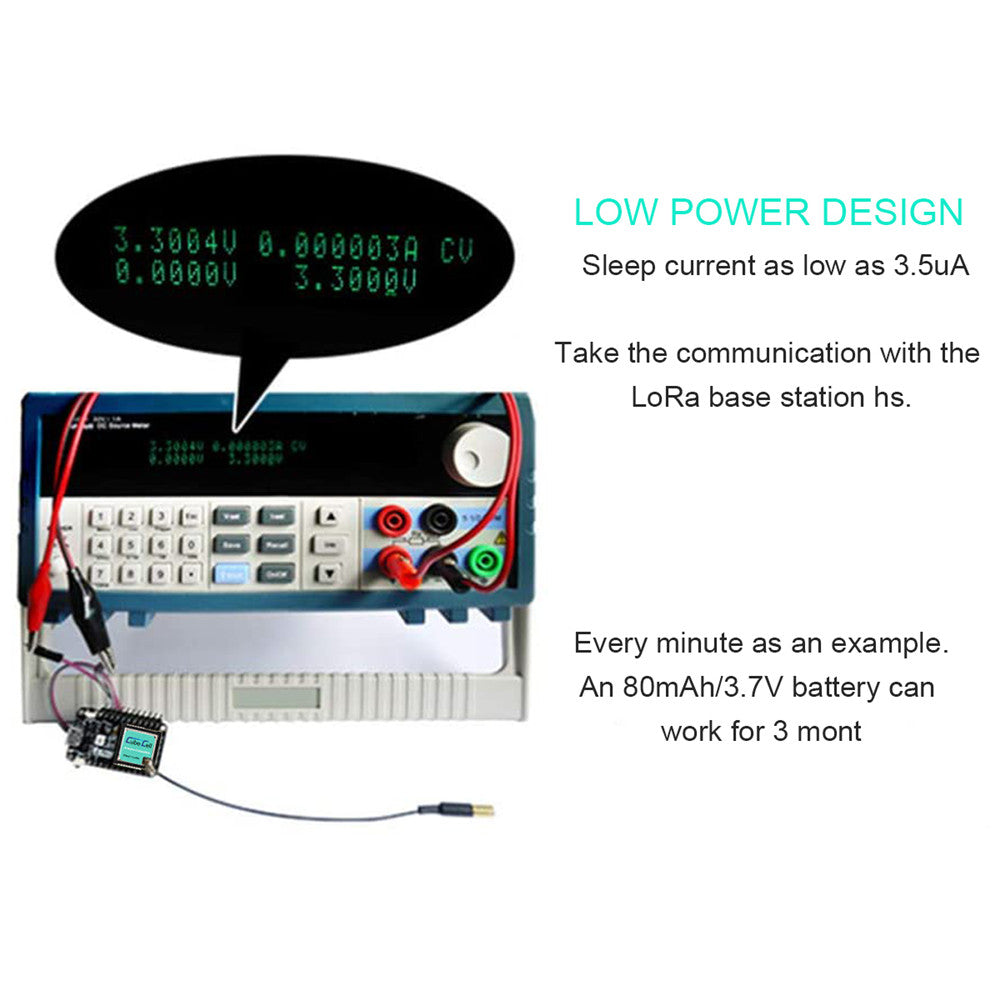

[ Ultra Low Power Design and ] 3.5uA in deep sleep. It supports LoRaWAN 1.0.2. LoRa Maximum Output Power: 21dB ± 1dB
[ Perfect Circuit Design ] Based on ASR6502, this chip is already integrated the PSoC 4000 series MCU and SX1262. 1.27 stamp edge design for SMT
Good impedance matching and long communication distance. LoRa Maximum Output Power: 21dB ± 1dB
[ Application ] It can be used for Arduino
Product description
Style Name:Prototype
Description:

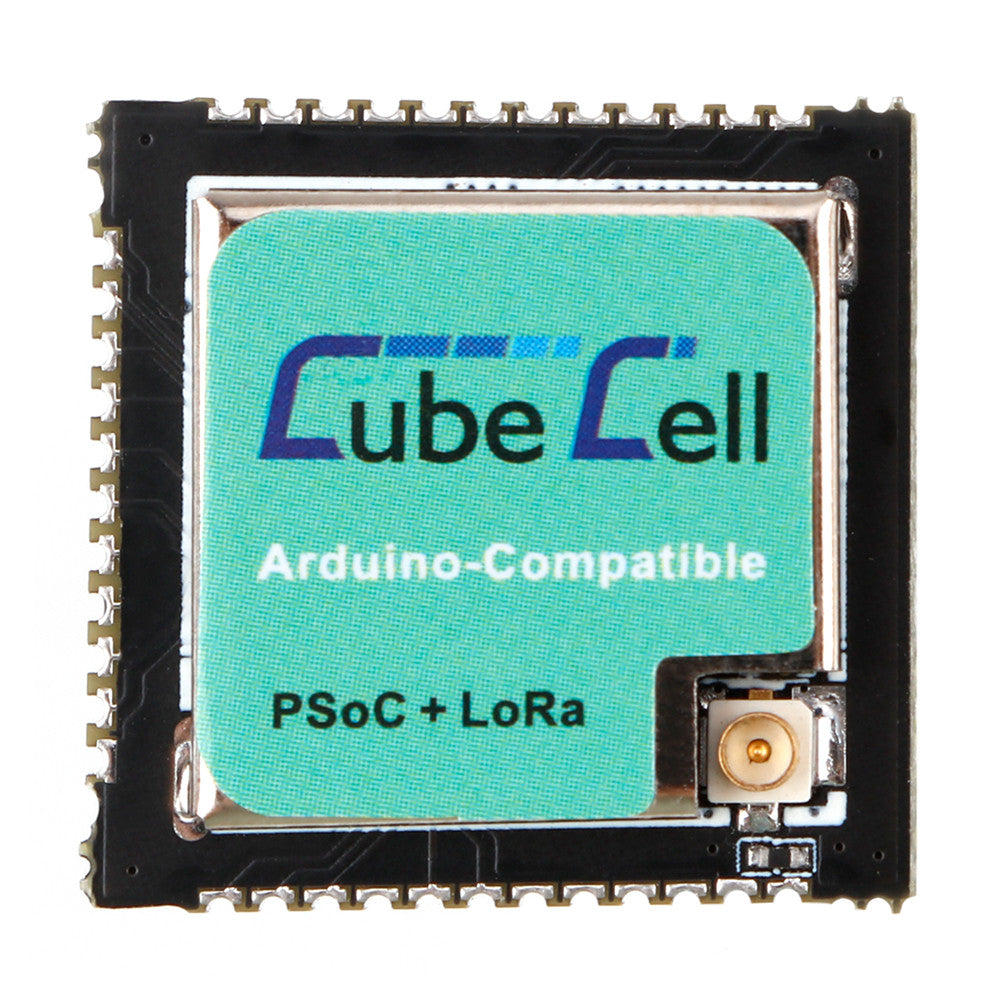

HTCC-AM02 is a Module,must work with other PCB board! It supports AT transparent transmission commands, can be directly integrated into the application circuit.
Featurues:
1.Perfect Compatible with Arduino
2. CE and FCC certification;
3. Based on ASR6502, this chip is already integrated the PSoC 4000 series MCU and SX1262
4. SupportLoRaWAN 1.0.2;
5. Ultra low power design, 3.5 uA in deep sleep;
6. 1.27 stamp edge design for SMT;
7. Good impedance matching and long communication distance.
Parameters:
MCU: ASR6502 (128KB FLASH, 16KB SRAM )
LoRa Chip: ASR6502 + SX1262
LoRa Working Band: 868-915

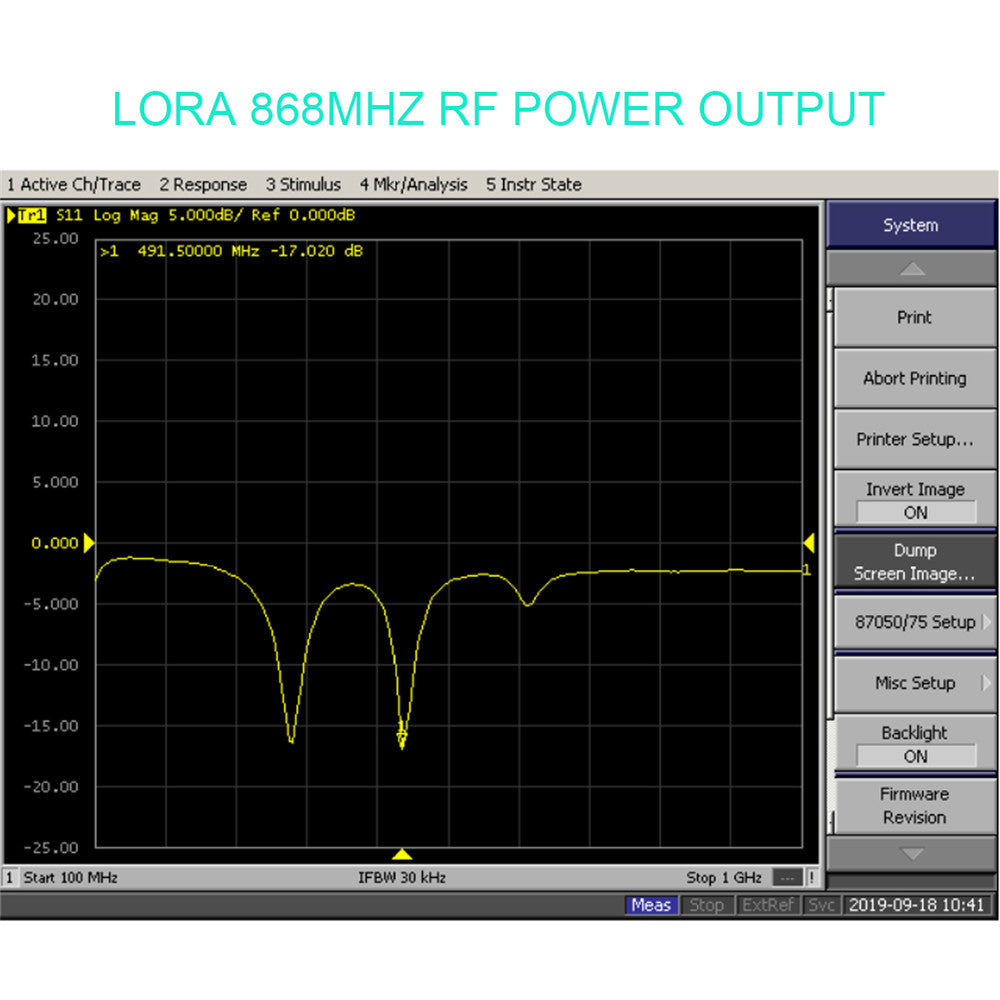

LoRa Maximum Output Power: 21dB ± 1dB

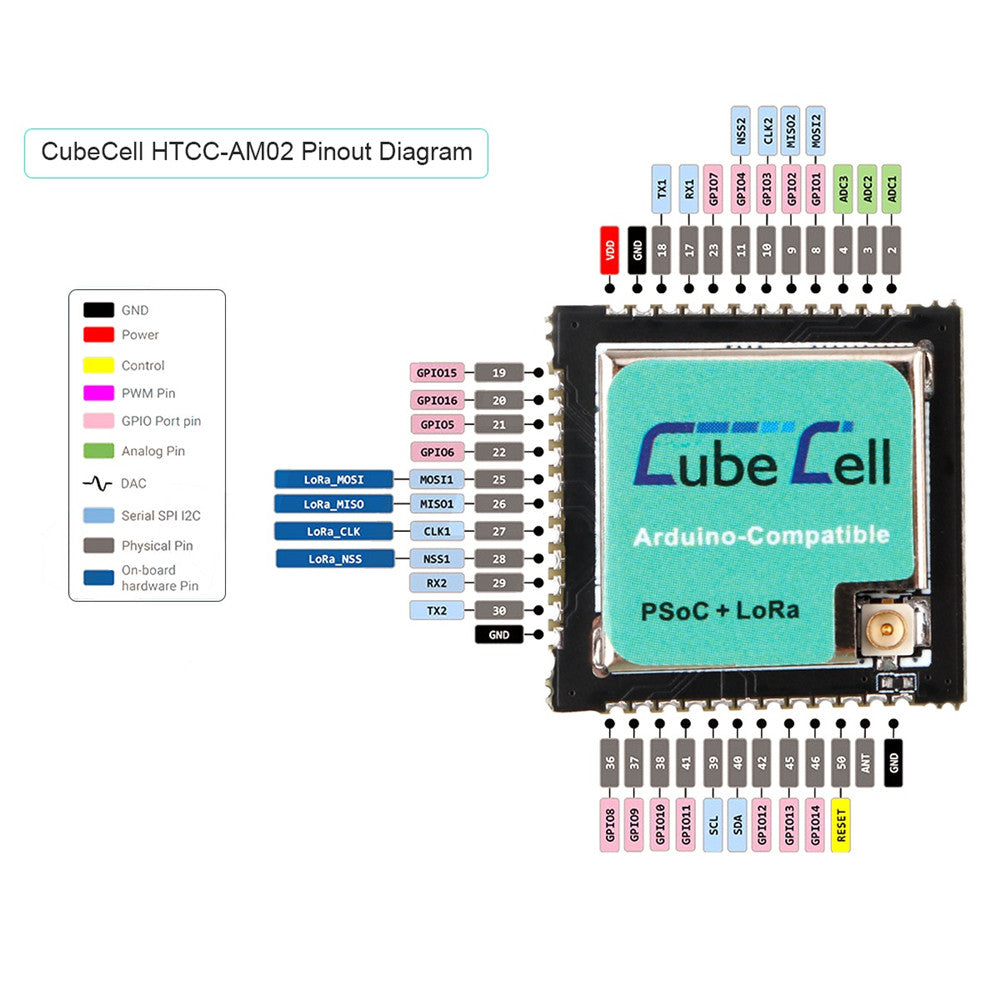

Hardware resources: 1. UART x 2; SPI x 2; I2C x 2; SWD x 1; ADC x 3; COMP x 1; 2. 12 – bits ADC; 8 – channel DMA engine; 3. 14 x GPIO
FLASH: 128KB internal FLASH

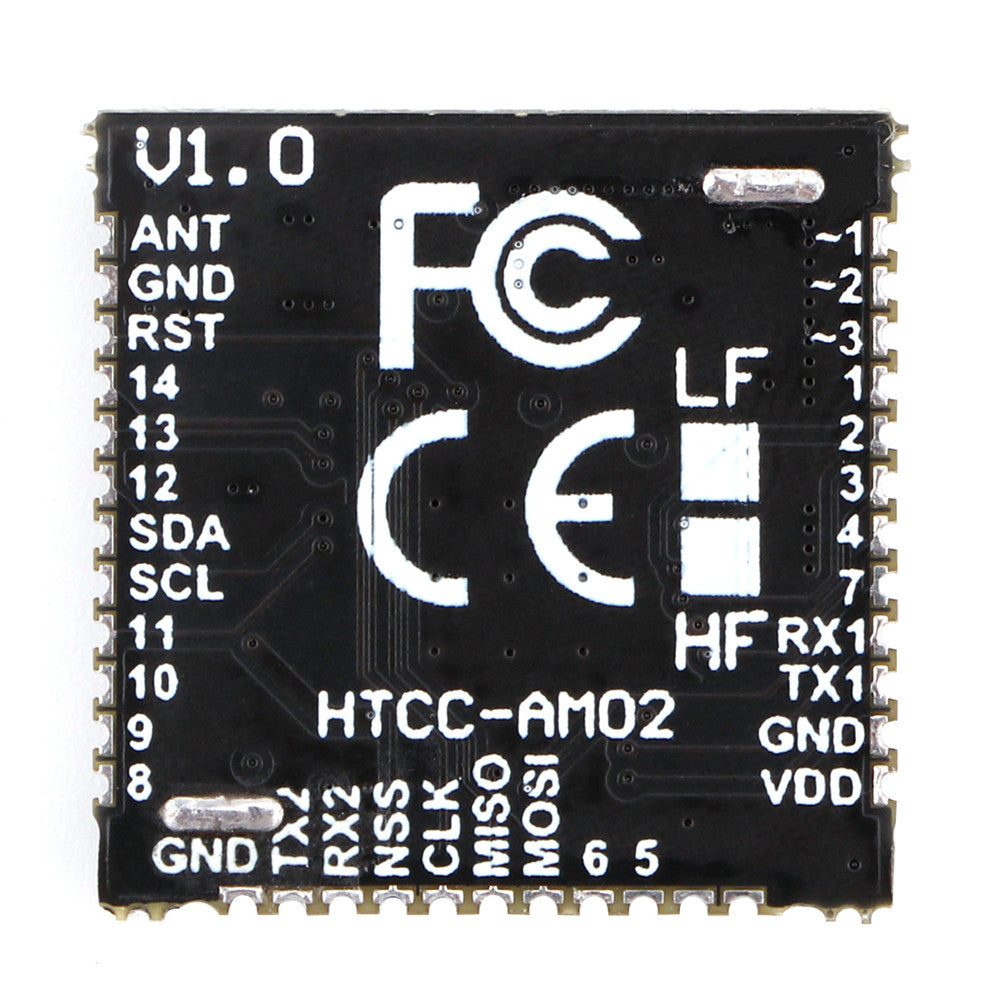

Interface: 1.27X (12X2 +11) stamp edge; LoRa Antenna (IPEX) x 1

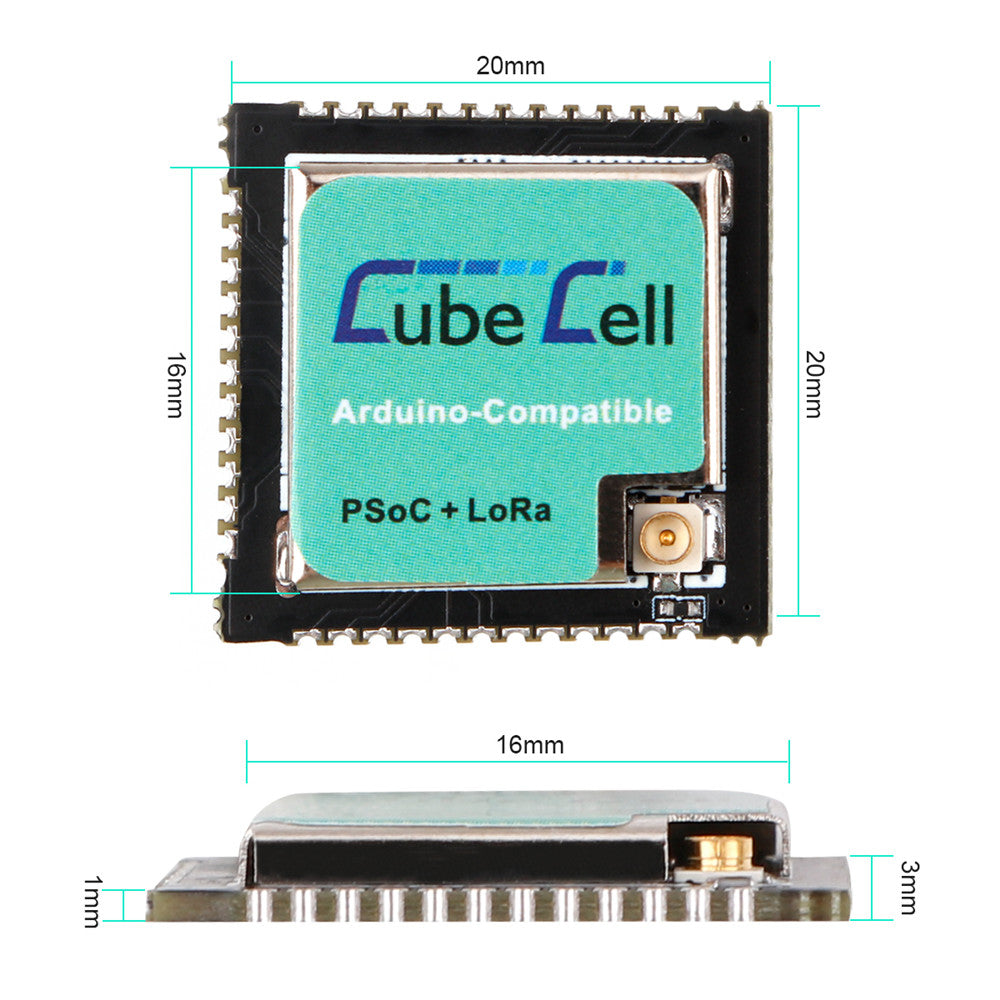

Size: 20.32 x 20.32 x 2 mm
Low Power Design: Deep Sleep 3.5uA
Package Including:
1 * HTCC-AM02 LoRa Module 868-915MHz
[ Ultra Low Power Design and ] 3.5uA in deep sleep. It supports LoRaWAN 1.0.2. LoRa Maximum Output Power: 21dB ± 1dB
[ Perfect Circuit Design ] Based on ASR6502, this chip is already integrated the PSoC 4000 series MCU and SX1262. 1.27 stamp edge design for SMT
Good impedance matching and long communication distance. LoRa Maximum Output Power: 21dB ± 1dB
[ Application ] It can be used for Arduino
Product description
Style Name:Prototype
Description:
HTCC-AM02 is a Module,must work with other PCB board! It supports AT transparent transmission commands, can be directly integrated into the application circuit.
Featurues:
1.Perfect Compatible with Arduino
2. CE and FCC certification;
3. Based on ASR6502, this chip is already integrated the PSoC 4000 series MCU and SX1262
4. SupportLoRaWAN 1.0.2;
5. Ultra low power design, 3.5 uA in deep sleep;
6. 1.27 stamp edge design for SMT;
7. Good impedance matching and long communication distance.
Parameters:
MCU: ASR6502 (128KB FLASH, 16KB SRAM )
LoRa Chip: ASR6502 + SX1262
LoRa Working Band: 868-915
LoRa Maximum Output Power: 21dB ± 1dB
Hardware resources: 1. UART x 2; SPI x 2; I2C x 2; SWD x 1; ADC x 3; COMP x 1; 2. 12 – bits ADC; 8 – channel DMA engine; 3. 14 x GPIO
FLASH: 128KB internal FLASH
Interface: 1.27X (12X2 +11) stamp edge; LoRa Antenna (IPEX) x 1
Size: 20.32 x 20.32 x 2 mm
Low Power Design: Deep Sleep 3.5uA
Package Including:
1 * HTCC-AM02 LoRa Module 868-915MHz
