M5Stack M5CameraF
M5Stack M5CameraF
M5Stack ESP32 Fisheye Camera Module CameraF OV2640 160 Degree with 4MB PSRAM 4MB Flash Memory
M5Stack ESP32 Fisheye Camera Module CameraF OV2640 160 Degree with 4MB PSRAM 4MB Flash Memory
M5Stack ESP32 Fisheye Camera Module CameraF OV2640 160 Degree with 4MB PSRAM 4MB Flash Memory
M5Stack ESP32 Fisheye Camera Module CameraF OV2640 160 Degree with 4MB PSRAM 4MB Flash Memory
M5Stack ESP32 Fisheye Camera Module CameraF OV2640 160 Degree with 4MB PSRAM 4MB Flash Memory
M5Stack ESP32 Fisheye Camera Module CameraF OV2640 160 Degree with 4MB PSRAM 4MB Flash Memory

M5Stack ESP32 Fisheye Camera Module CameraF OV2640 160 Degree with 4MB PSRAM 4MB Flash Memory

Vendor: M5Stack
SKU: 5873093
Product type: Camera module
$20.89
$21.99
$20.89
Subtotal: $20.89
Description
Description
x

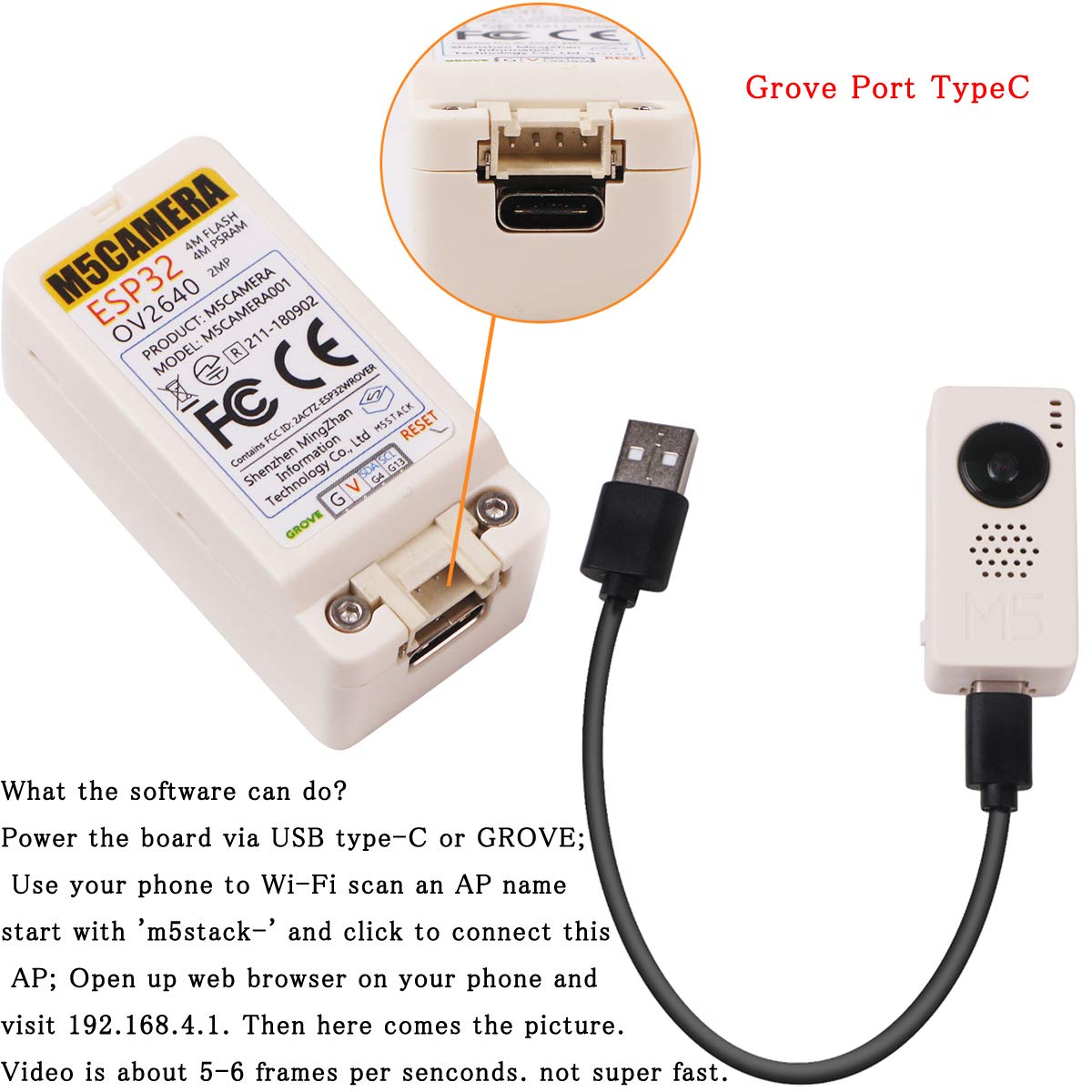

What this software can do?

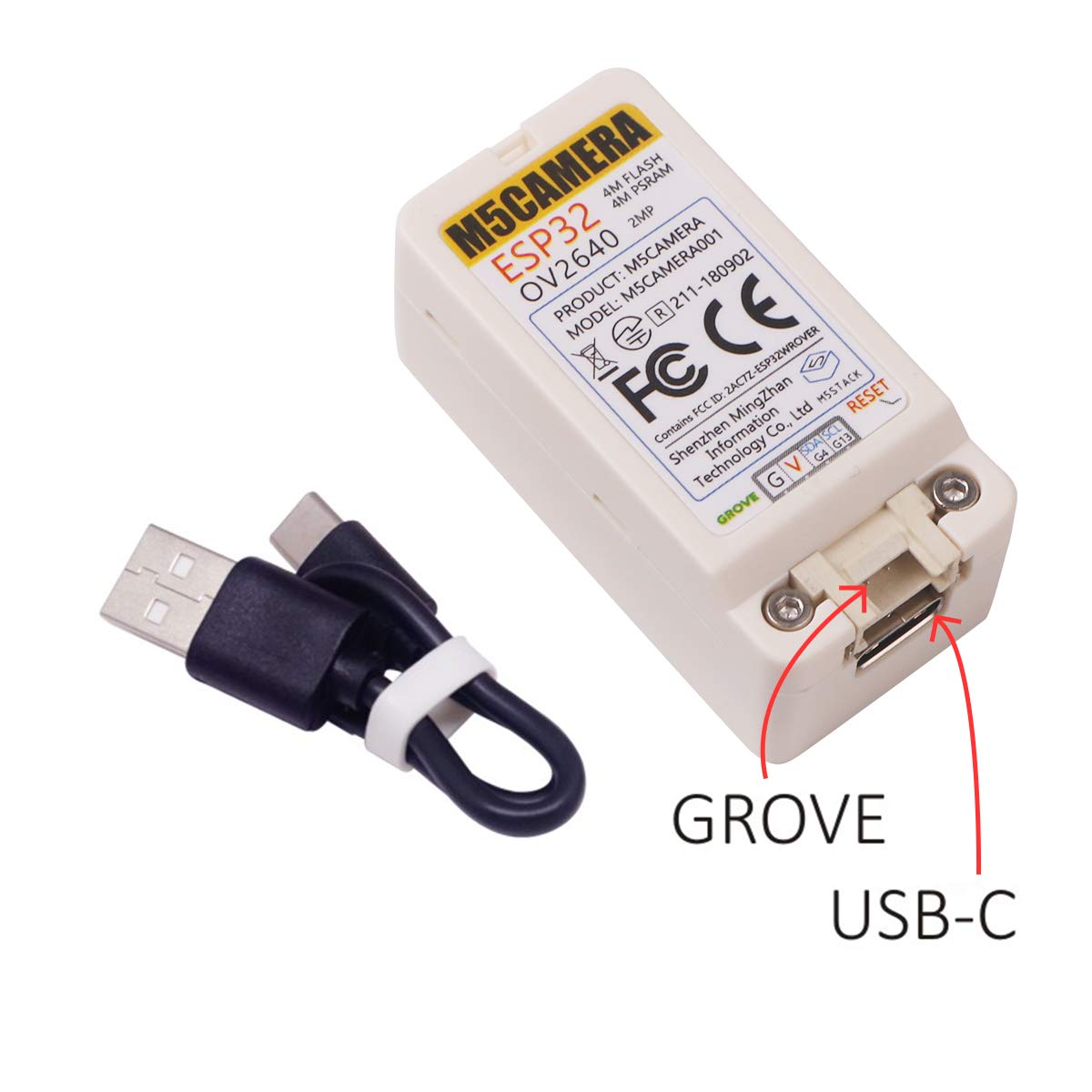

Power the board via USB type-C or GROVE
Use your phone to Wi-Fi scan an AP name start with 'm5stack-' and click to connect this AP.
Open up web browser on your phone and visit 192.168.4.1
Then here comes the picture. Video is about 5-6 frames per senconds. not super fast.

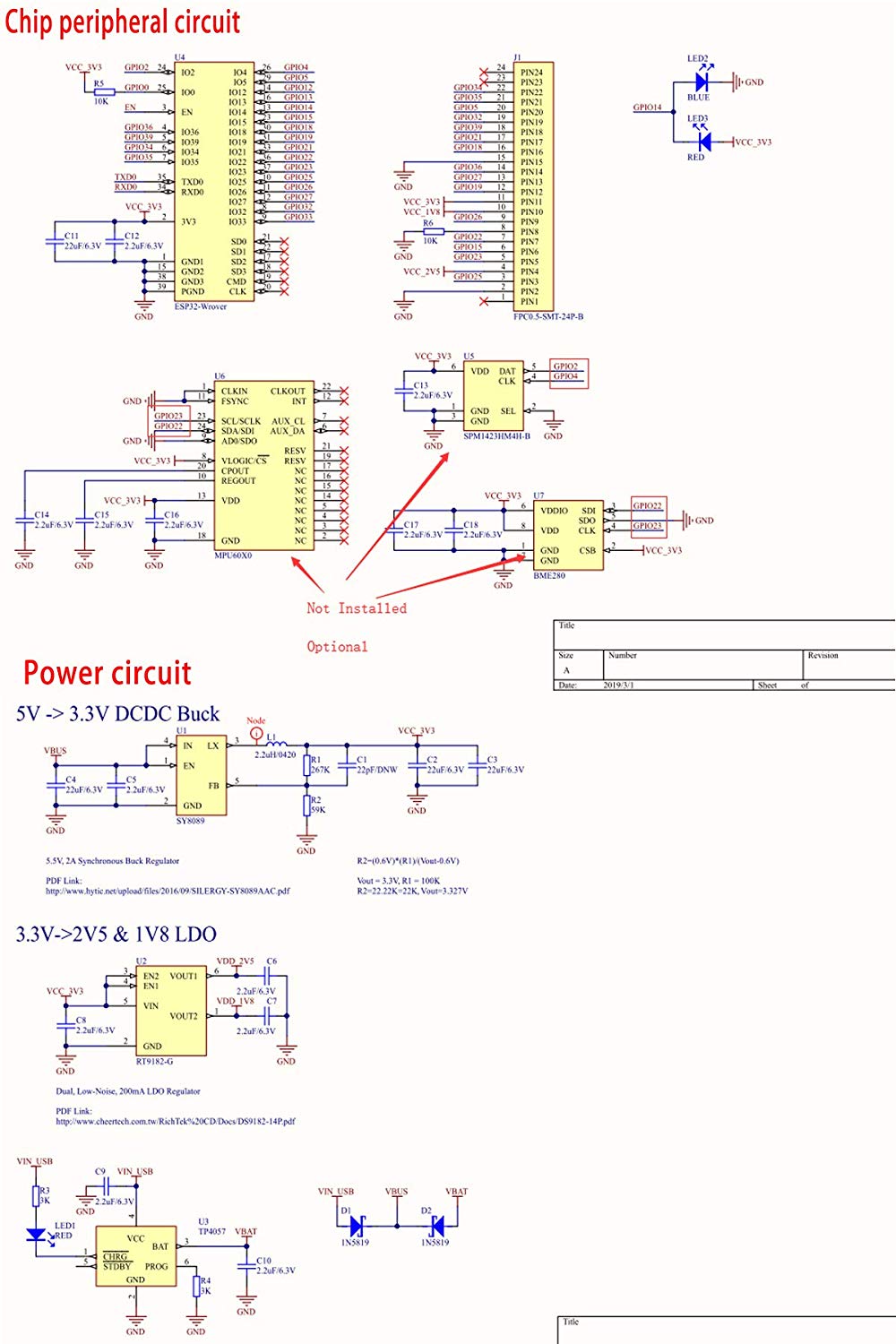

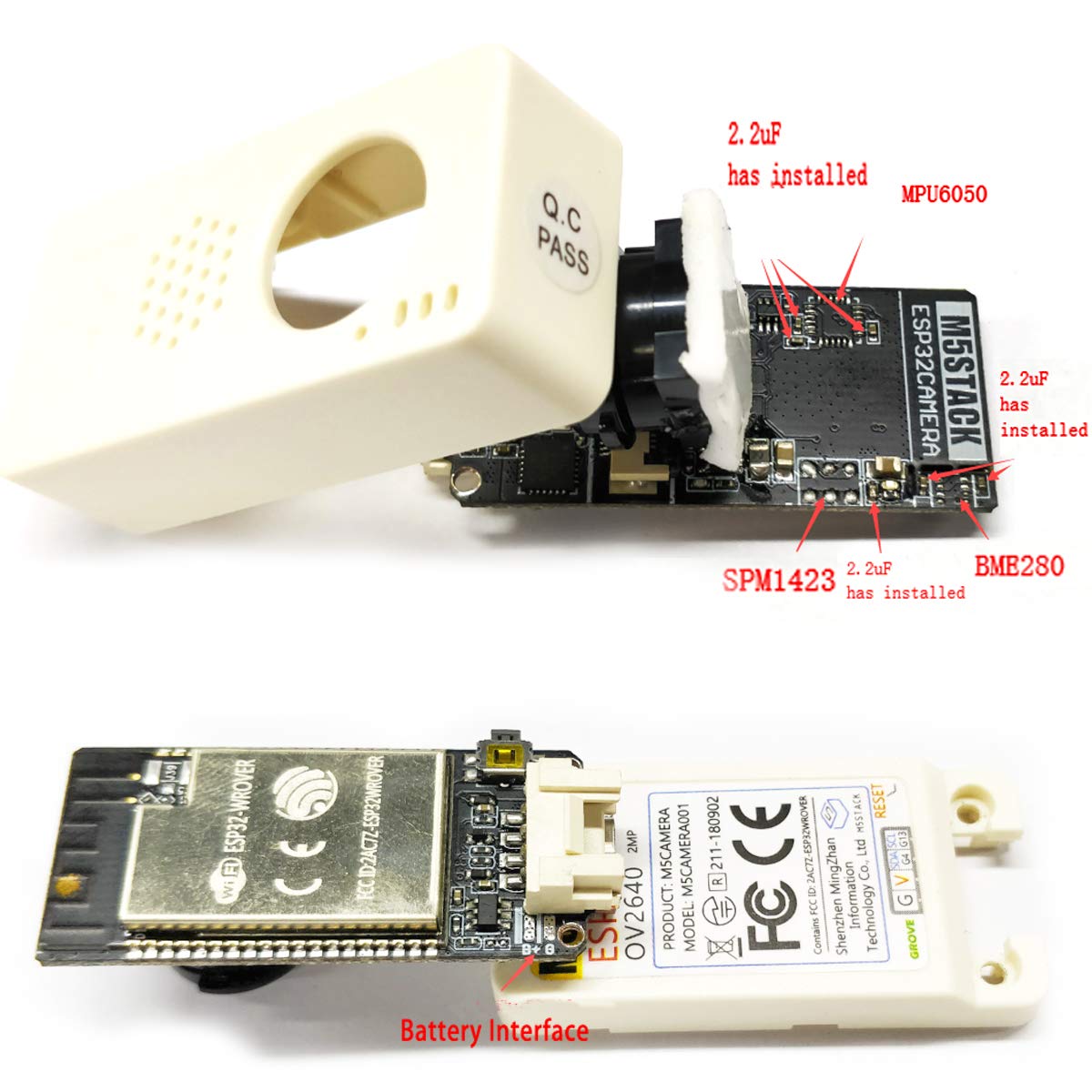

The hardware also comes with some reserved weld pad, just in case you want put these chips back on board:
9-axis gyroscope (MPU6050)
pressure sensor (BME280)
Digital silicon microphone (SPM1423)
Battery Interface

Features:

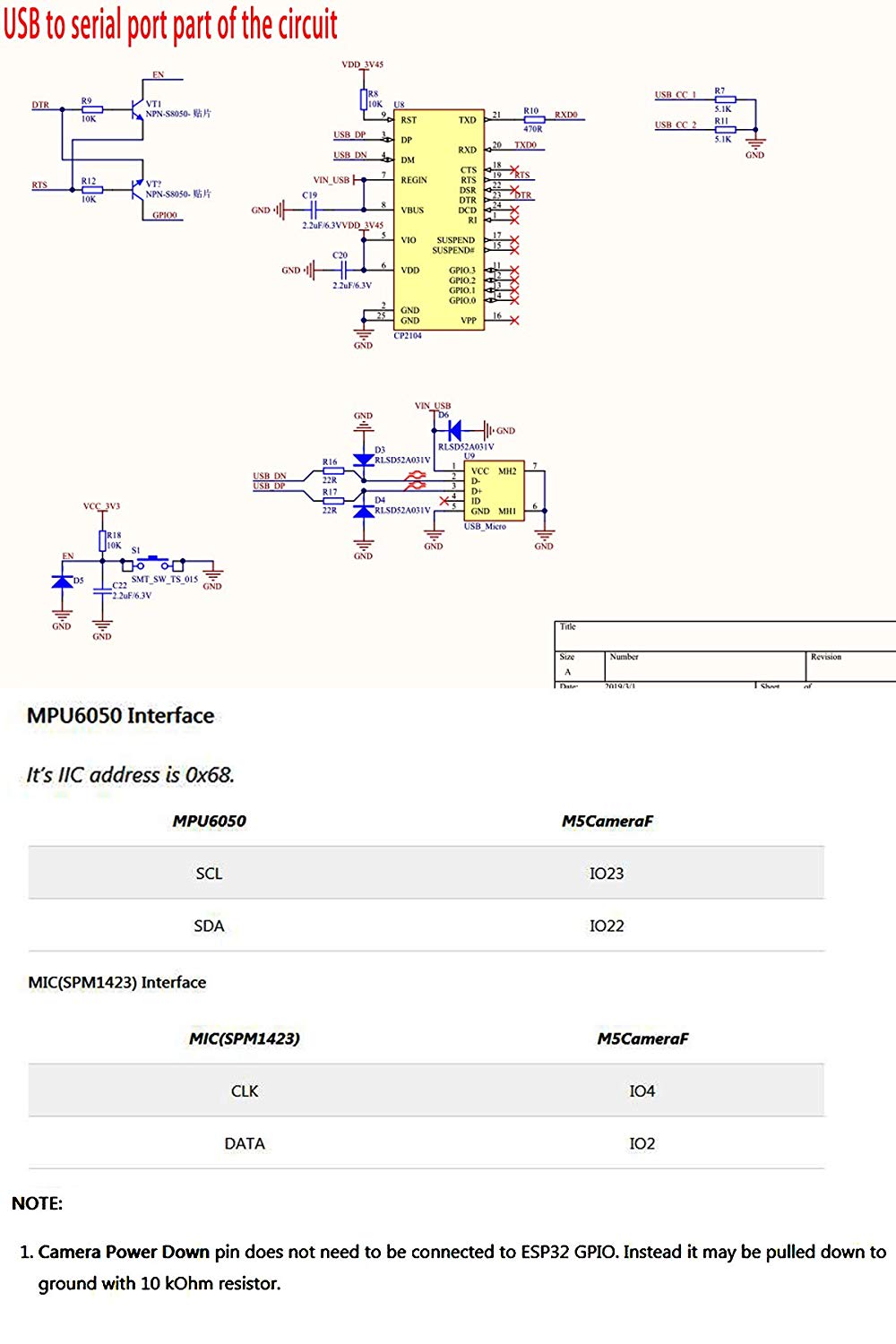

CP2104 USB-to-TTL converter

ESP32:
Dual-core Tensilica LX6 microprocessor
Up to 240MHz clock frequency

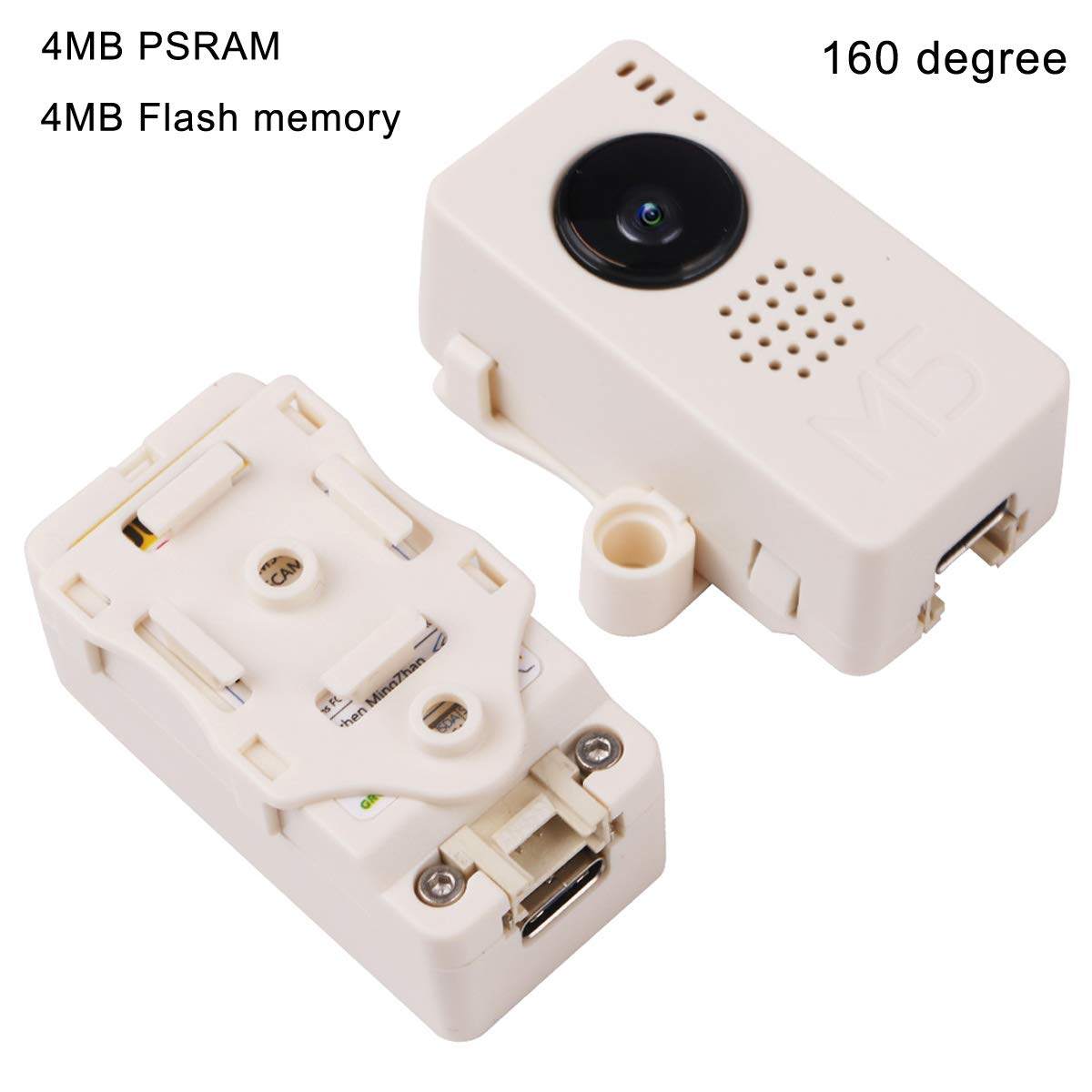

4MB PSRAM
4MB Flash memory
Integrated 802.11 BGN WiFi transceiver
Integrated dual-mode Bluetooth (classic and BLE)
Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)

OV2640 Sensor:
Output Formats(8-bit):
YUV(422/420)/YCbCr422
RGB565/555
8-bit compressed data
8-/10-bit Raw RGB data
Maximum Image Transfer Rate according to specific format
UXGA/SXGA: 15fps
SVGA: 30fps
CIF: 60fps
Scan Mode: Progressive

Camera Specifications:
Field of View : 160 degree
Maxmium Pixel: 2M
Sensor best resolution: 1600 * 1200
Size: 23.5 × 48 × 23.5mm

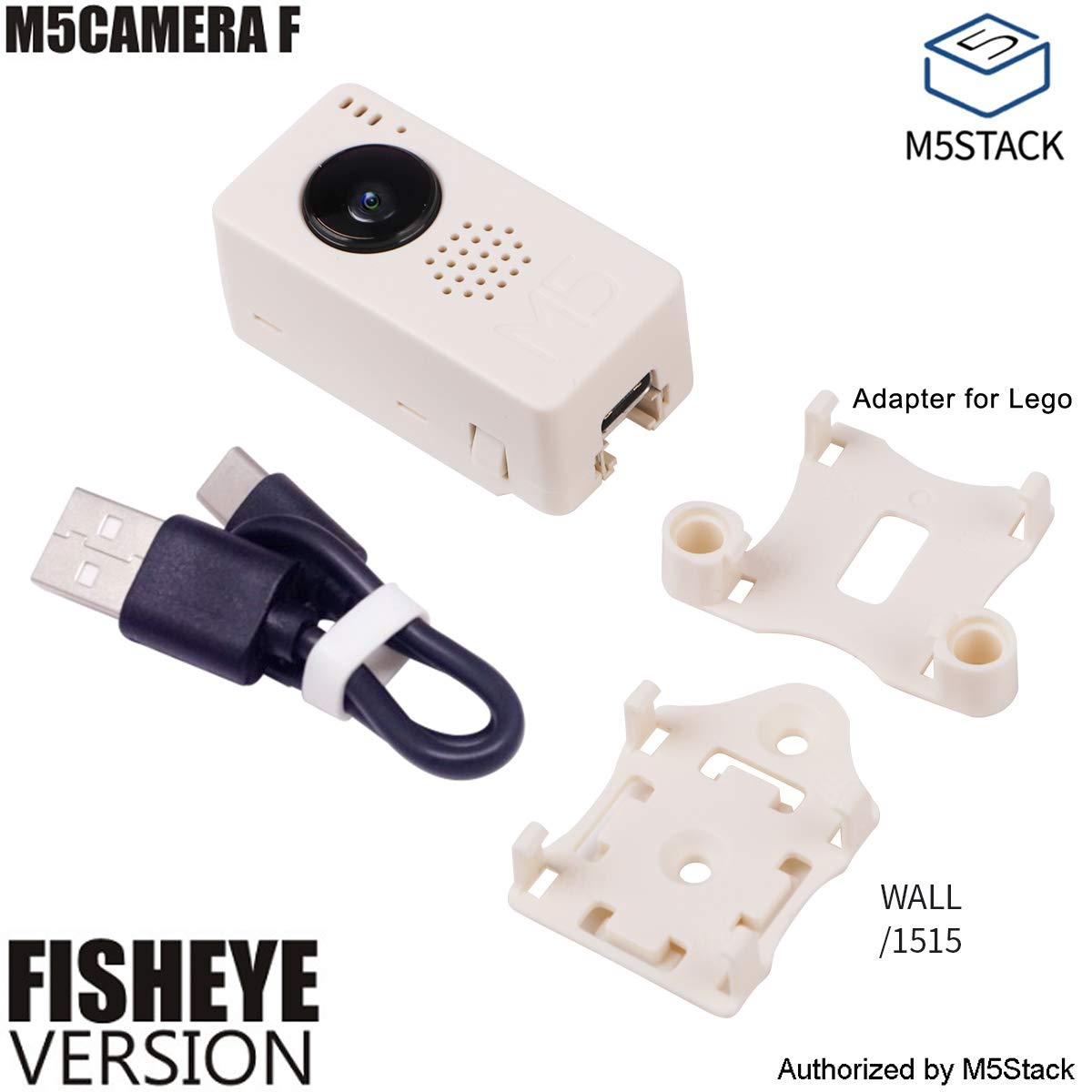

Package Including:
1 * M5Stack ESP32 Fisheye Camera Module
1 * LE-GO Adapter
1 * Wall/1515
1 * Type-C USB Cable
