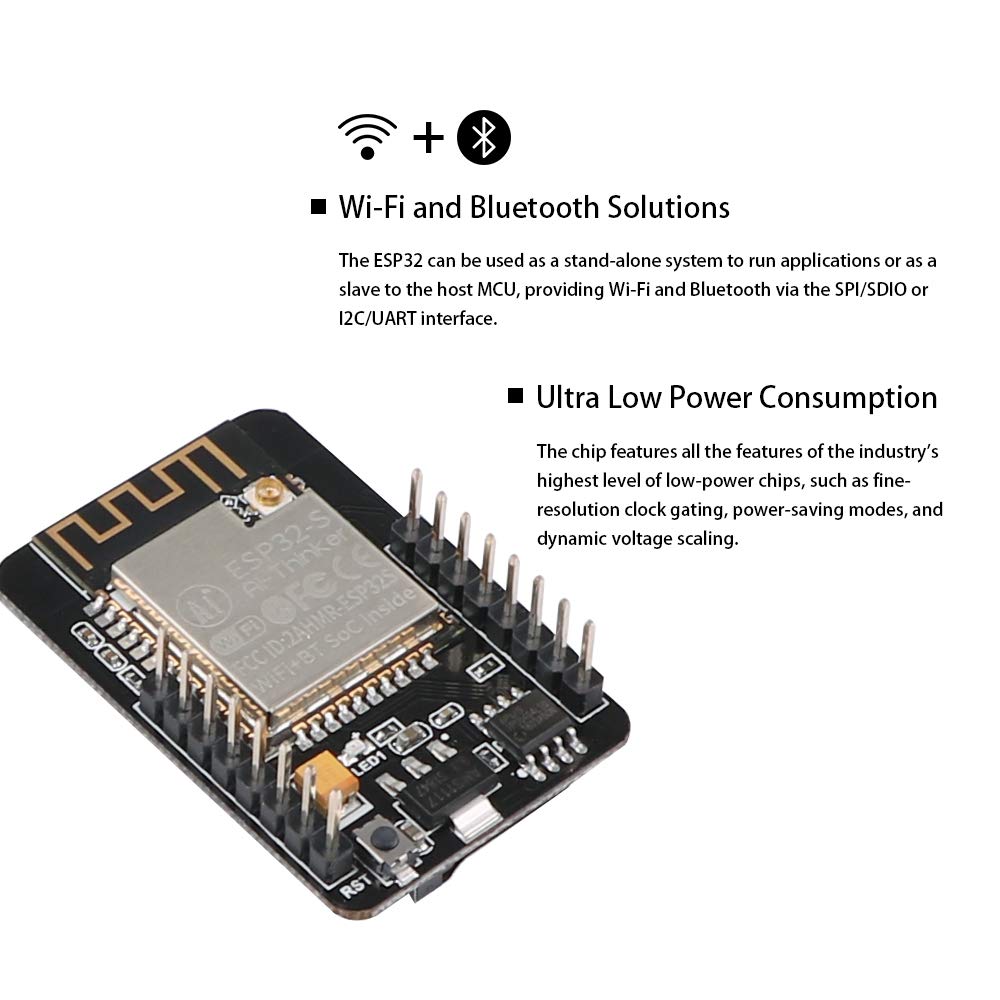

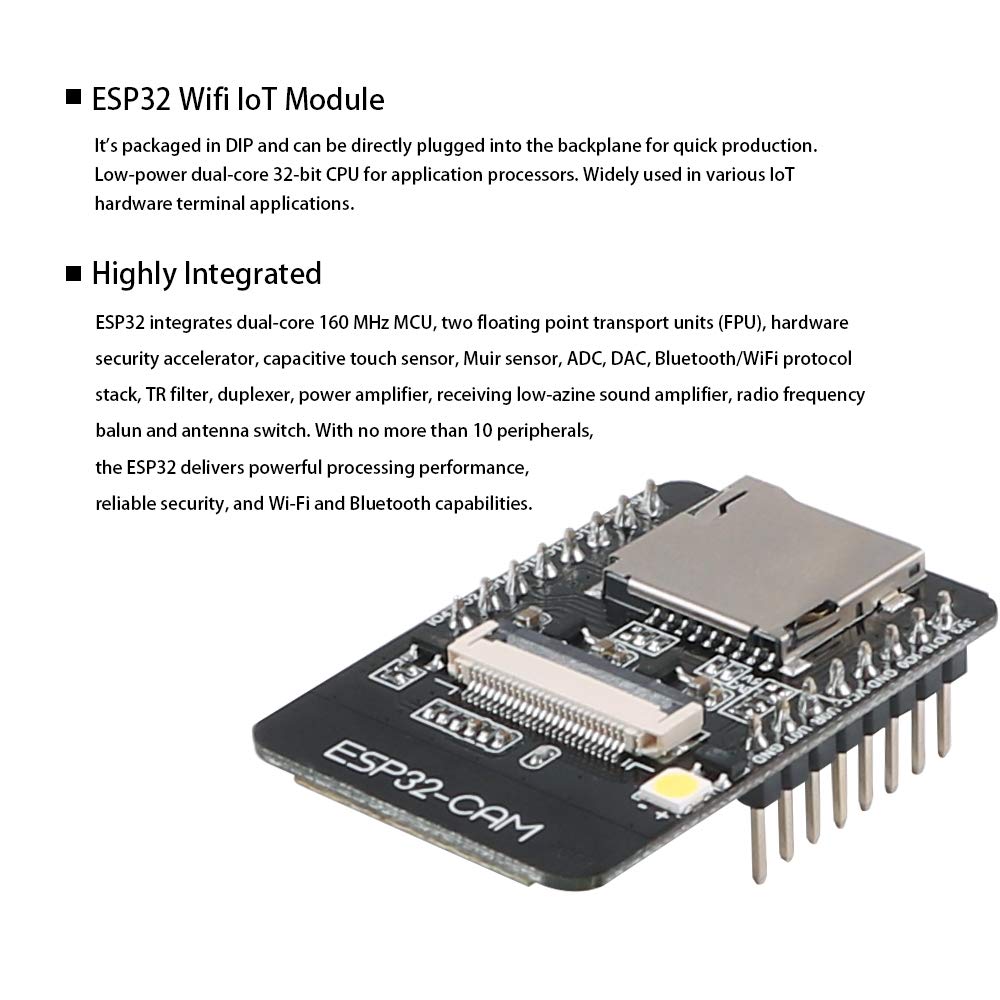

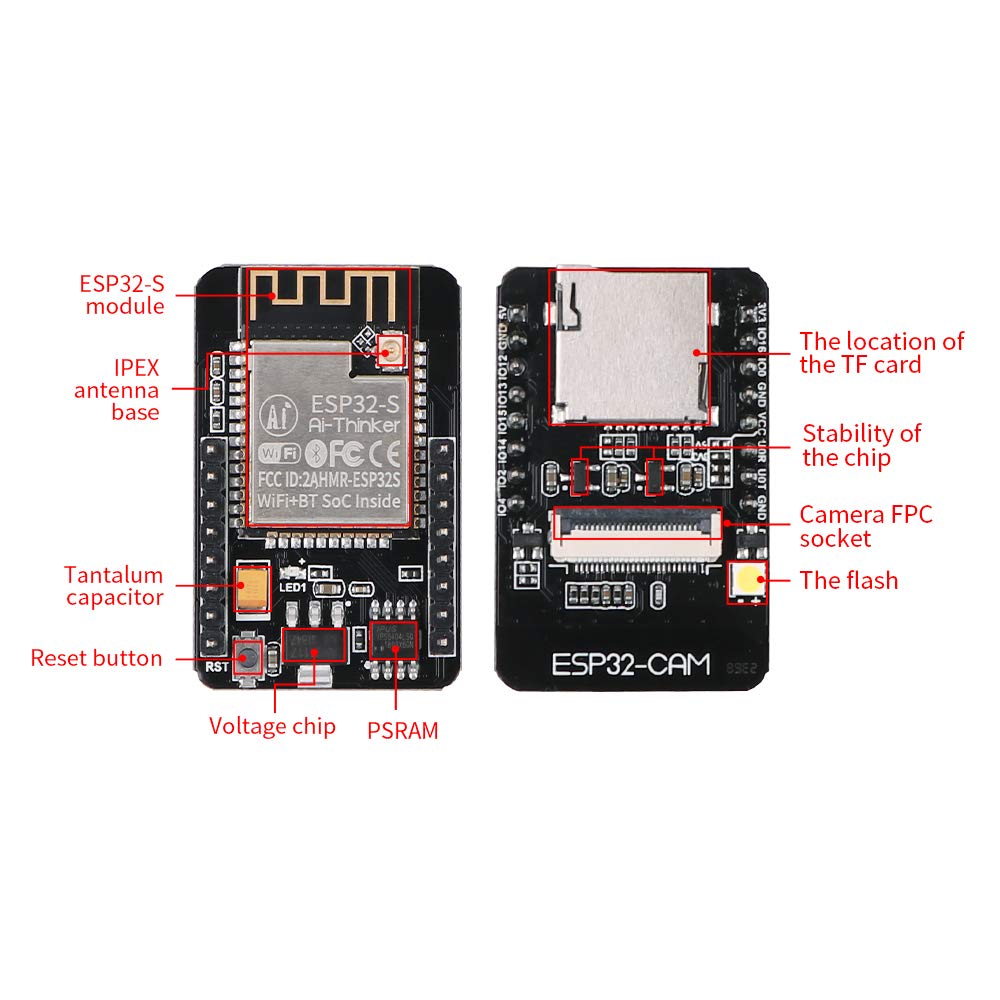

ESP32 Camera WiFi+Bluetooth Module 4M PSRAM ESP32 5V Low-Power Dual-core 32-bit CPU with OV2640 2 Million Pixels Camera for Home Smart Device Map Wireless Monitoring and QR Wireless Identification
Features:
Low-power dual-core 32-bit CPU for application processors
Main frequency up to 240MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
Support OV2640 and OV7670 cameras, built-in flash
Support image WiFI upload
Support TF card, maximum support 4G
Support multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss One-click distribution network
Support secondary development
Specification:
Serial port rate: default 115200 bps
Image output format: JPEG (only supported by OV2640), BMP, GRAYSCALE
Spectrum range: 2412-2484MHZ
WiFi802.11: b/g/n/d/e/i/k/r (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU aggregation, support a4; MS guard interval 2.4 ~ 2.5 GHz.
Bluetooth: V4.2 BR/EDR and BLE standards, NZIF receiver with -98 dBm sensitivity, Class-1, Class-2 and Class-3 transmitters, support for AFH (Frequency Modulation), support for CVSD and SBC audio formats
Supply voltage: 5V 2A

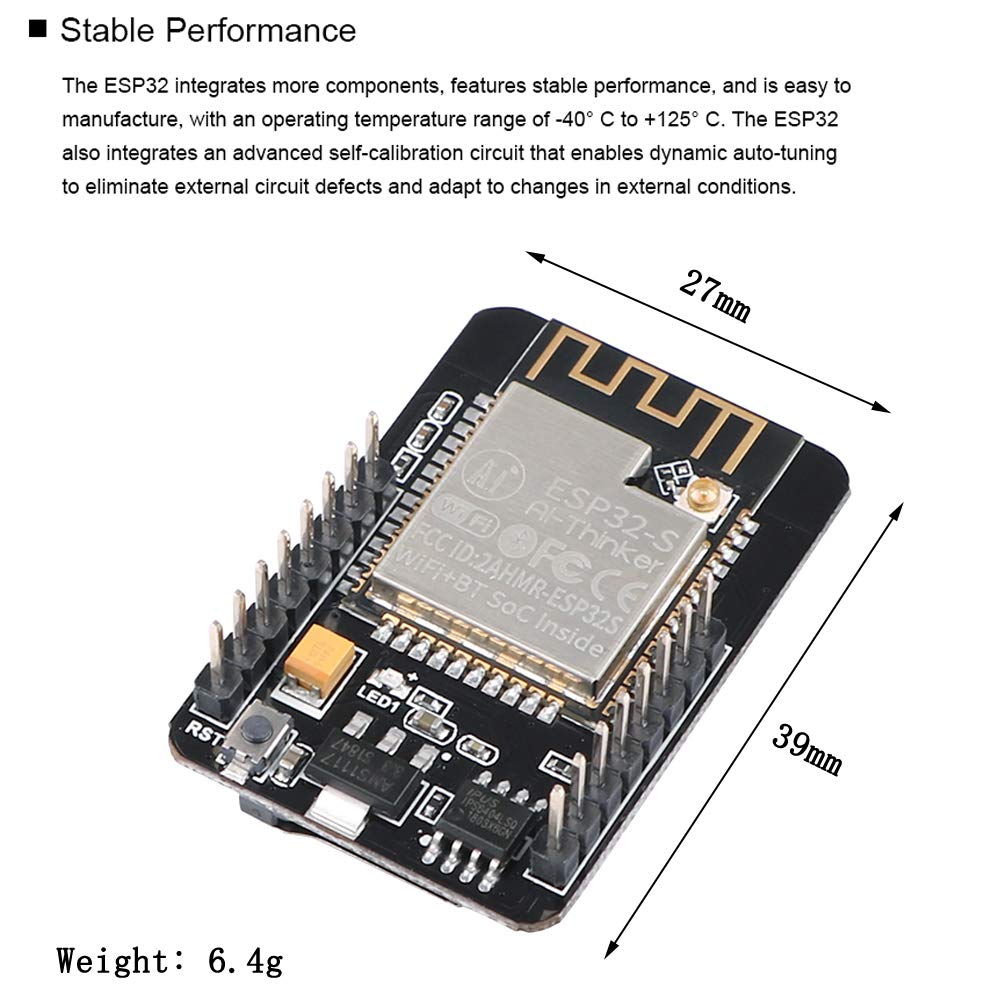

Size: 27*40.5*45(±0^)mm
Application Scenario:
Home smart device map
Wireless monitoring
Smart agriculture
QR wireless identification
Packing List:

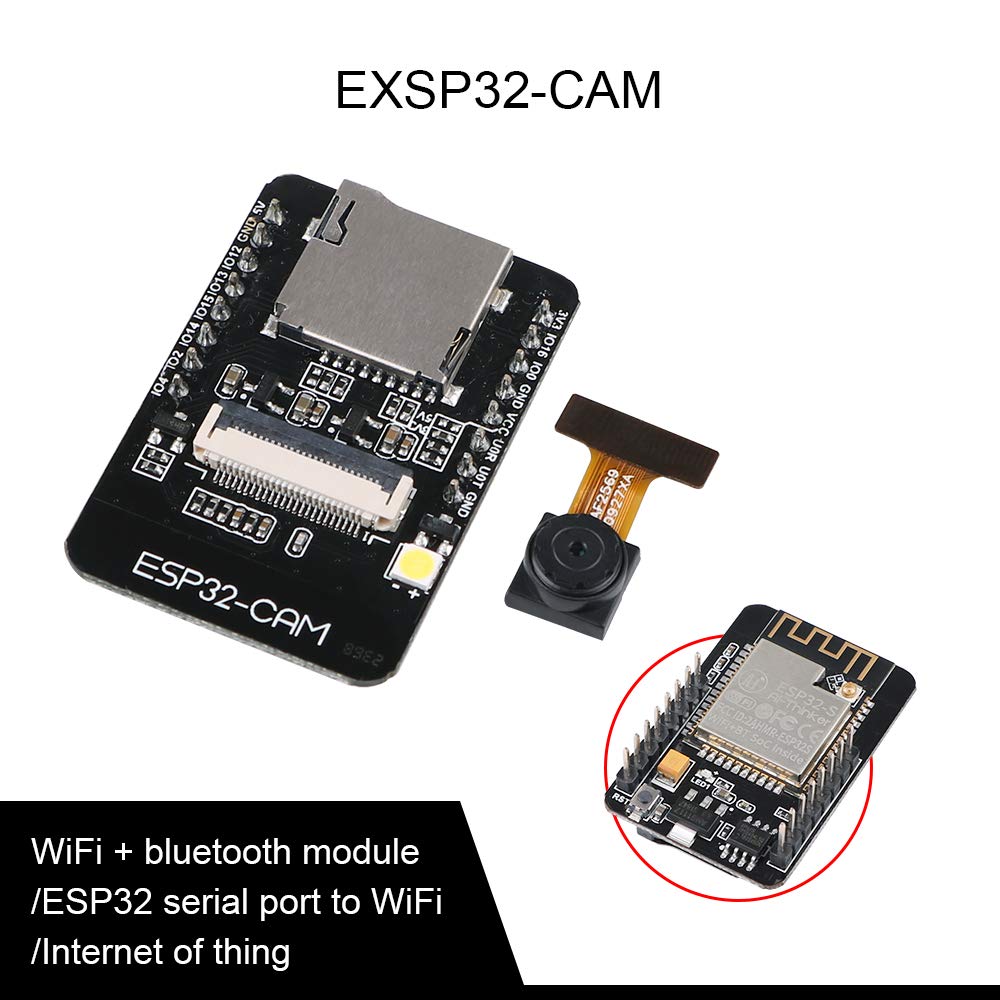

1 * Mini ESP32 WiFi+Bluetooth module
1 * OV2640 2 million pixels camera
2 * 2.54mm * 8 pin
