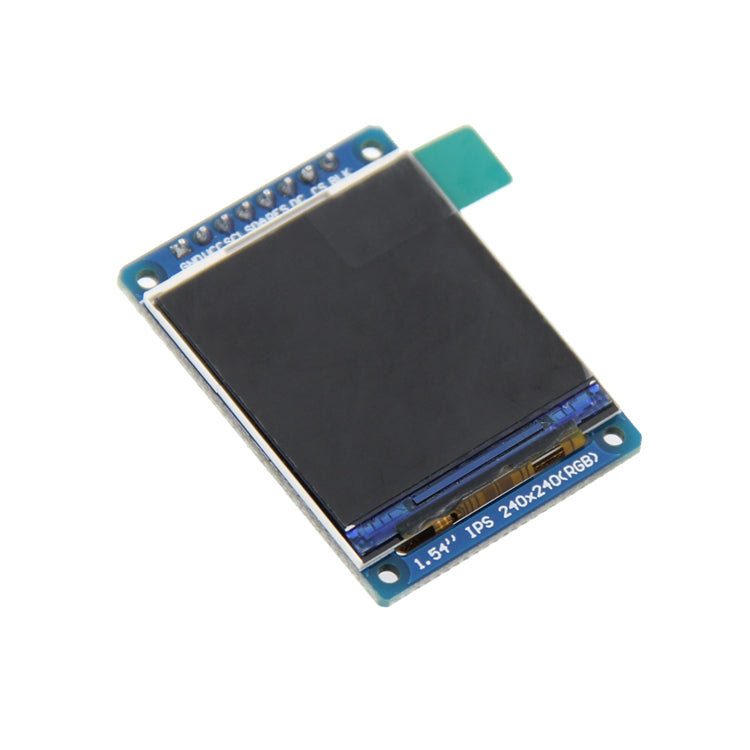

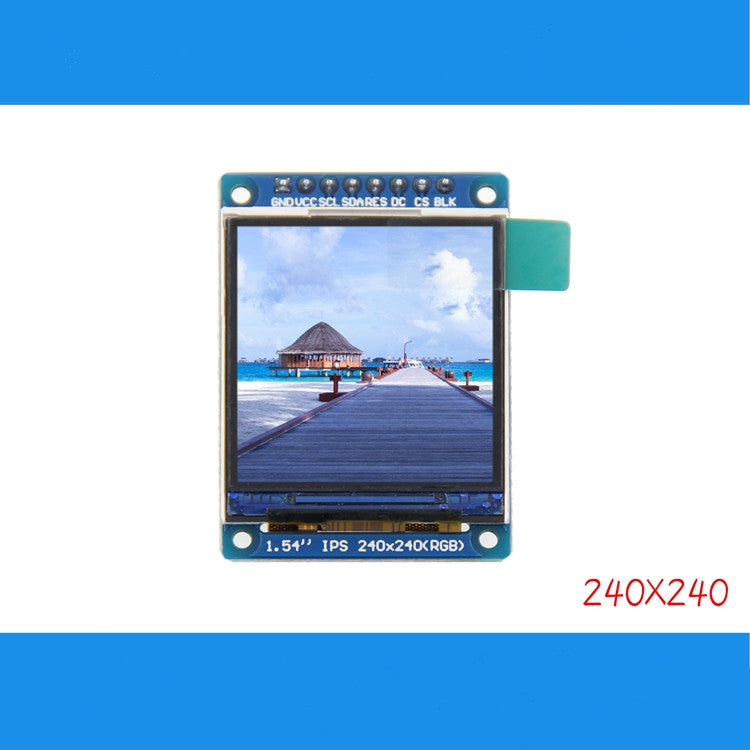

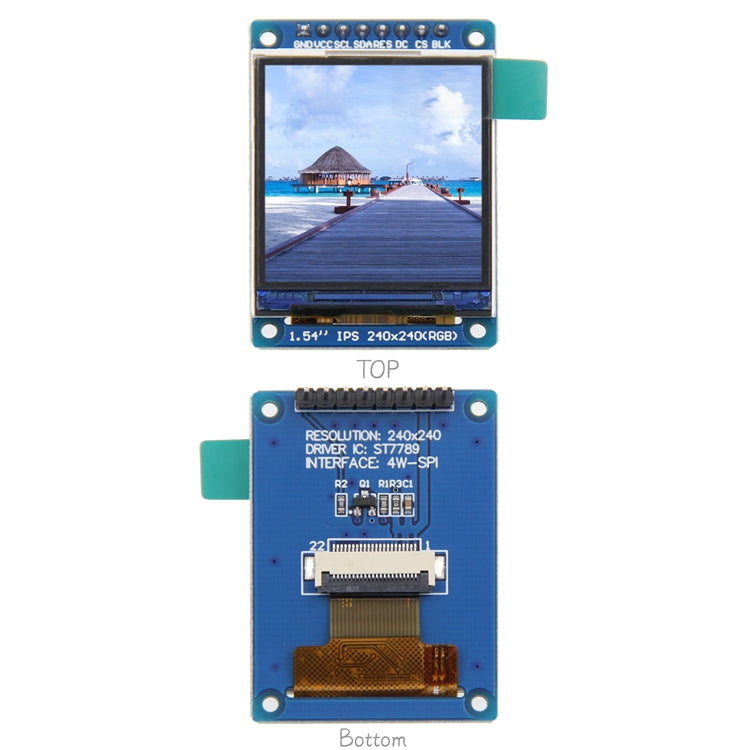

1.54inch SPI 240x240 RGB TFT LCD Display Module ST7789 Full Viewing 3.3V IPS

  • $16.89
    Unit price per
  • Save $3.10


1.Description:
It is a high-definition 1.54 inch IPS LCD liquid crystal display module.Its driver chip is ST7789 and SPI output.

http://www.lcdwiki.com/1.54inch_IPS_Module

2.Feature:
1>.IPS LCD display
2>.High Definition
3>.SPI output
4>.Adjust display direction
5>.Full view

3.Parameter:
1>.Product Name:1.54 Inch IPS LCD Liquid Crystal Display Module
2>.Work Voltage:3.3V
3>.Display Size:1.54inch
4>.Resolution:240*240
5>.Interface Type:SPI output
6>.Driver Chip:ST7789
7>.Number of Pins:8
8>.Operating Temperature:-20℃~70℃
9>.Operating Humidity:5%~95%RH

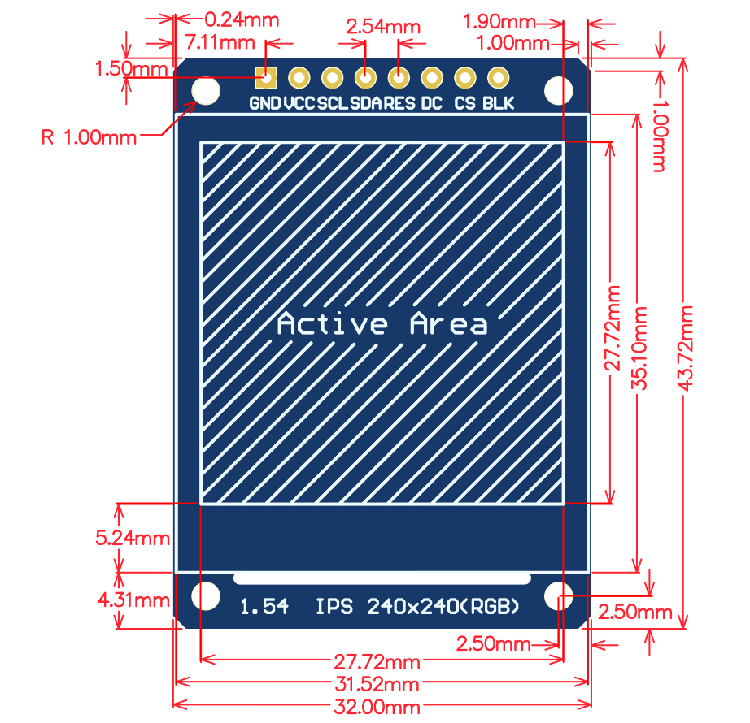

10>.Model Size:44*32*4mm

4.Common Pin:
1>.GND:Power negative
2>.VCC:Input power supply positive 3.3V
3>.SCL:SPI clock terminal
4>.SDA:SPI data terminal
5>.RES:OLED screen reset terminal (need to reset once after power on)
6>.DC:Data/command selection terminal
7>.CS:Enable signal(Low Level Available)
8>.BLK:Blacklight Control(Low Level Available)

5.Package:
1>.1pcs 1.54 Inch IPS LCD Liquid Crystal Display Module


We Also Recommend

Raspberry Pi 7 inch touch screen

MakerFocus Raspberry Pi 7 Inch Capacitive Touch Screen TFT LCD Display for RPI 4B/3B+ Drive-free

Sale price $41.79 Regular price $43.99
Save $2.20
 I2C OLED 0.96 Inch Display Module with Du-pont cable

4pcs I2C OLED 0.96 Inch OLED Display Module IIC SSD1306 128 64 LCD White for Arduino UNO R3 STM

Sale price $18.05 Regular price $18.99
Save $0.94

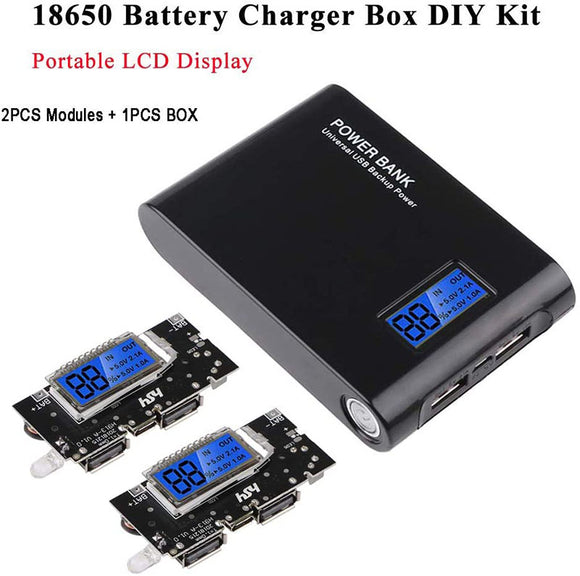

18650 Battery Charger Box DIY Kit Portable LCD Display Charger Board PCB Module Board
