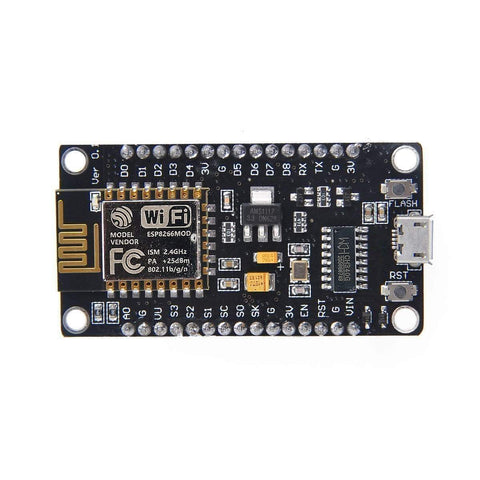

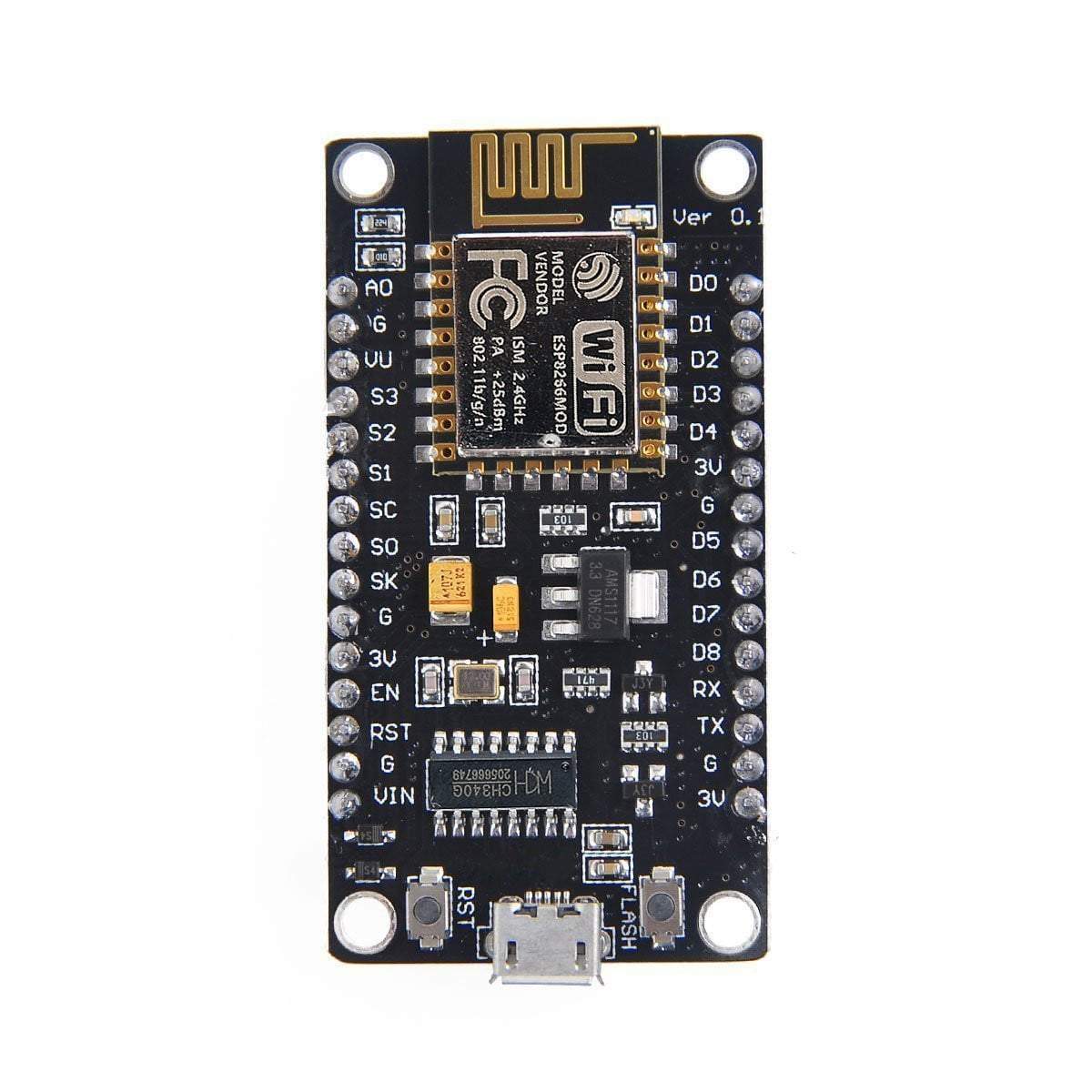

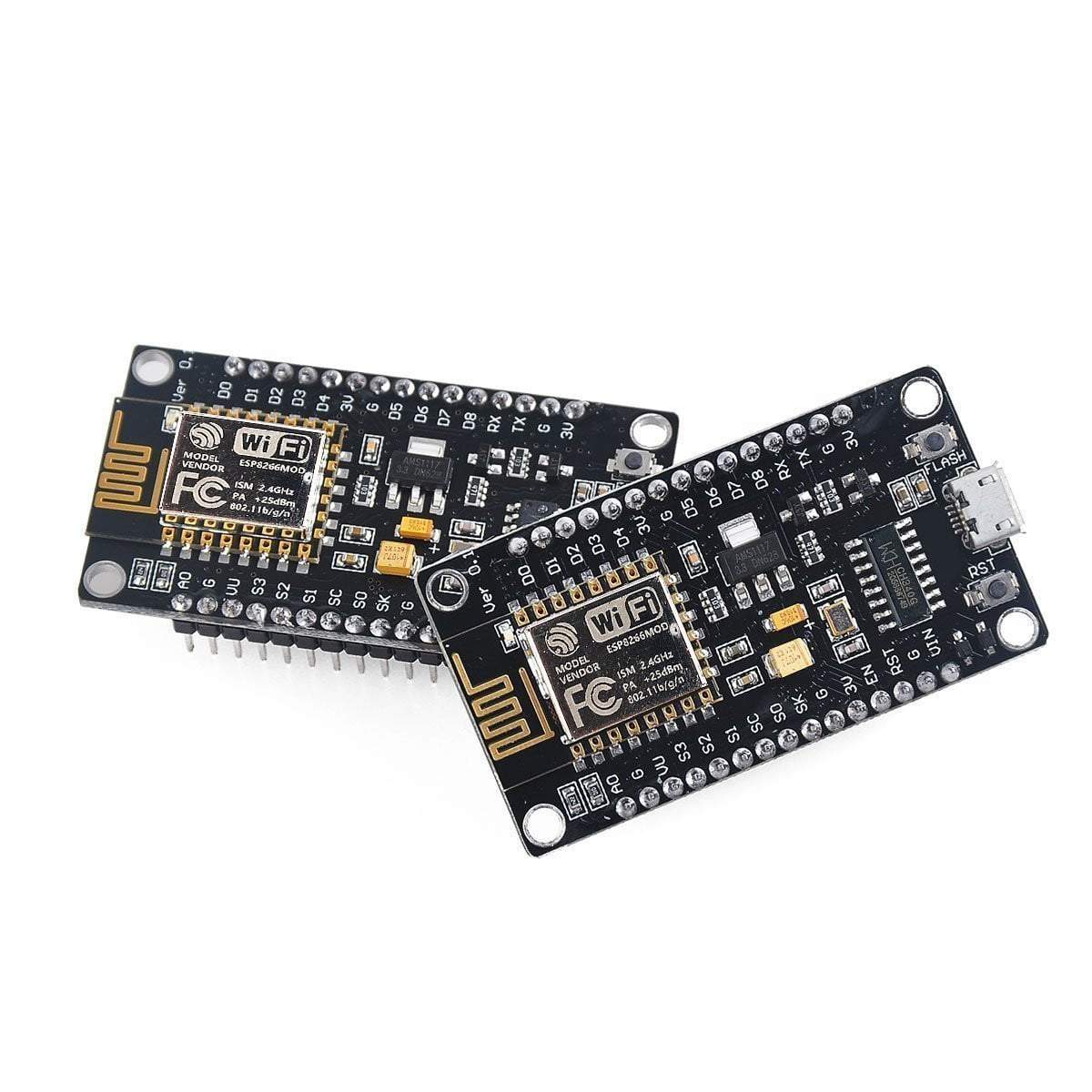

MakerFocus 2pcs ESP8266 NodeMCU LUA CH340 ESP-12E Internet WiFi Development Board for Arduino

  • $13.99
    Unit price per


Features:

-Operate File: ★Youtube Video:https://www.youtube.com/watch?v=NEo1WsT5T7s; ★CH340 Esp8266 NodeMcu Arduino Wifi Module's detail: http://nodemcu.readthedocs.io/en/master. ★Schematic: https://drive.google.com/open?id=1AR6M2L_tX63DrD942vcevLtX6LiF0kG6


-Powerful Esp8266 Wifi Module: Nodemcu v3, Upgraded to CH340 chip; Power your development in the fastest way combinating with NodeMcu Firmware; It's a IOT unit with all available resources on board, support smart link and smart networking.


-Usage: Available install NodeMCU 1.0 library in the Arduino IDE. This ESP8266 NodeMcu development board can be use for small temperature and humidity monitor in home automation project and works very well with the arduino development platform.



Specifications:

A great set of tools to develop ESP8266.
NodeMCU is built based on the mature ESP8266 technology to take advantage the abundant resources available on the web.

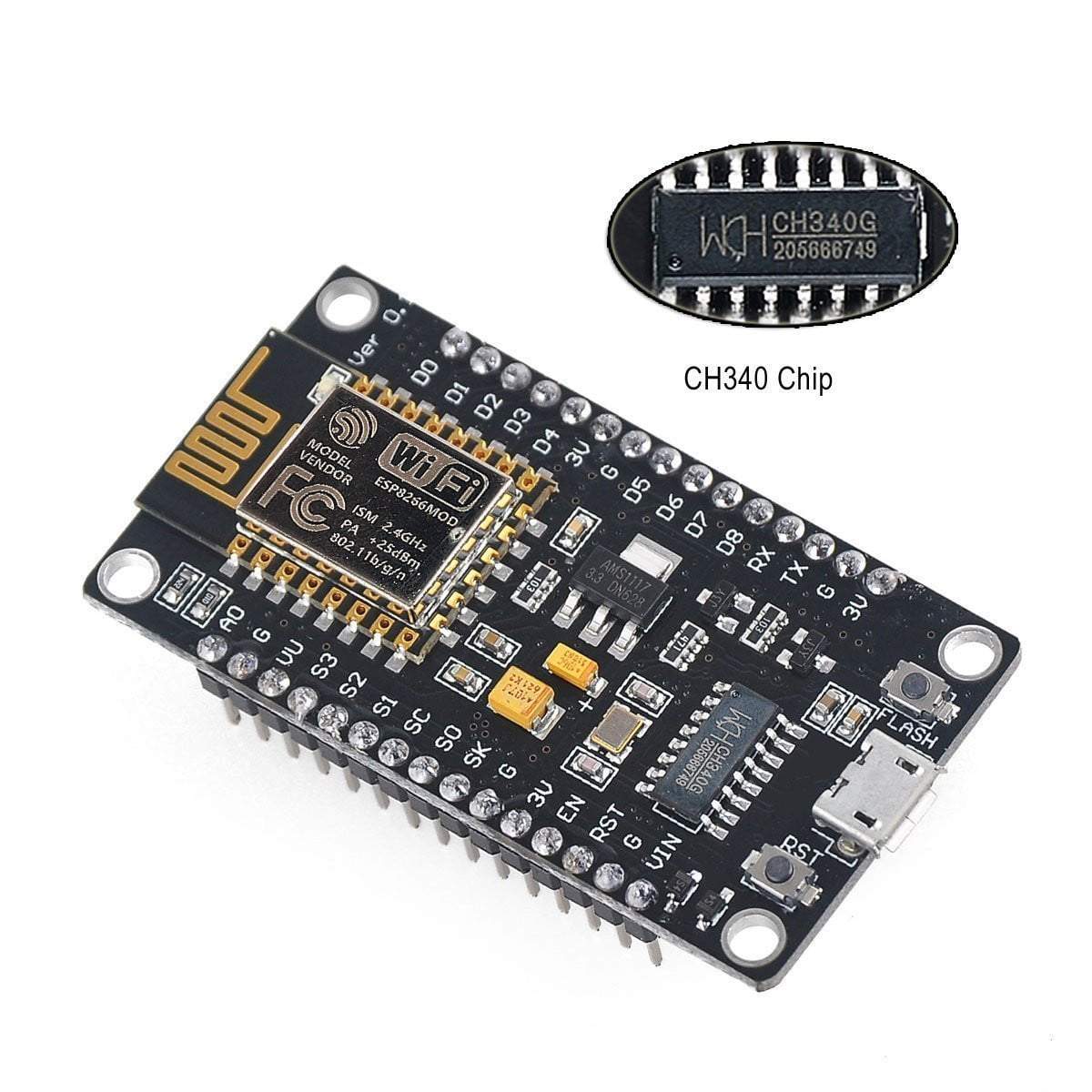

NodeMCU has ESP-12 based serial WiFi integrated on board to provide GPIO, PWM, ADC, I2C and 1-WIRE resources at your finger tips, built-in USB-TTL serial with super reliable industrial strength CH340 for superior stability on all supported platforms.
ESP8266 is a highly integrated chip designed for the needs of a new connected world.
It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.
ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during run-time.
Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.



Packing List:

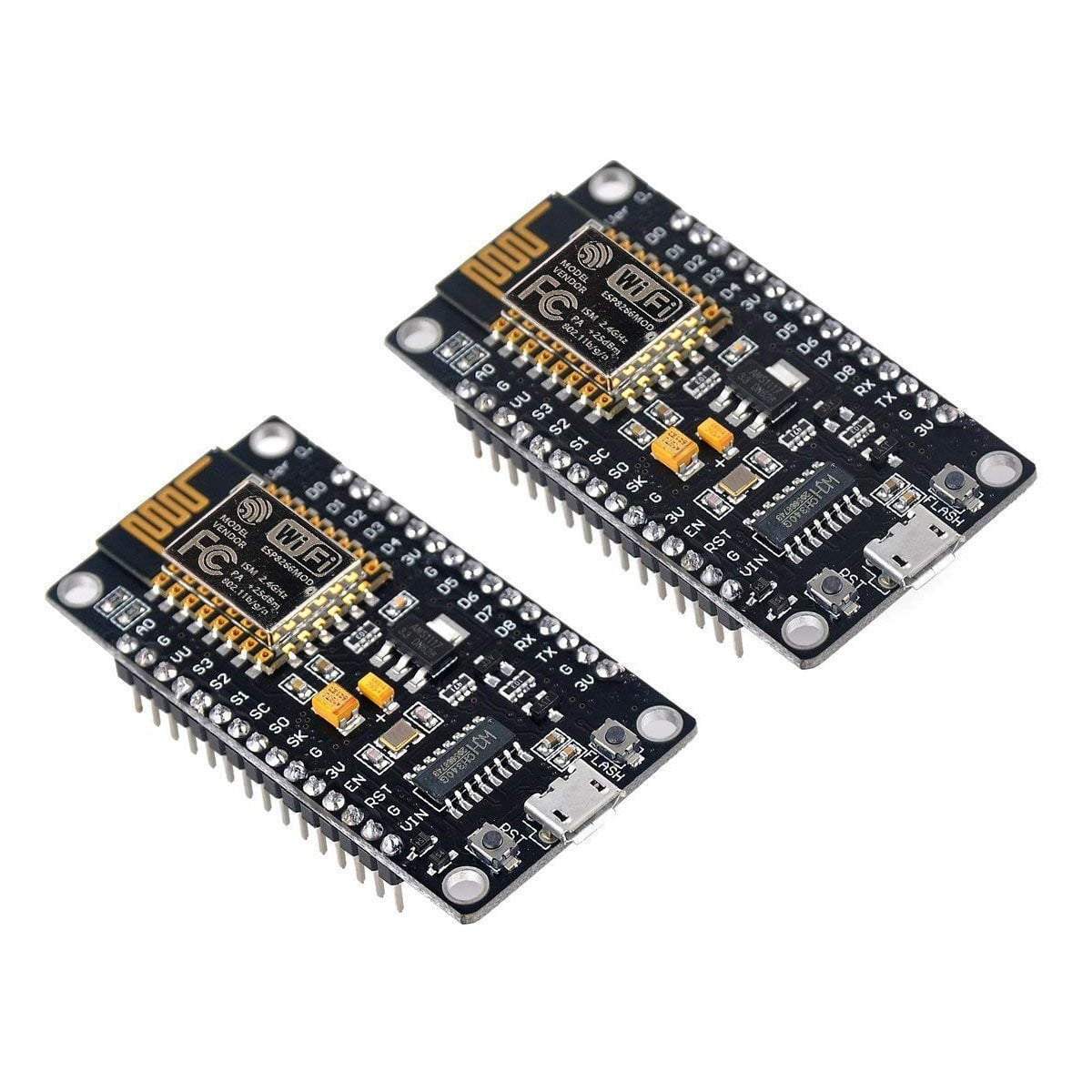

2 * NodeMcu Lua ESP-12E WIFI Development Board
