MakerFocus A7 GSM GPRS GPS Module 3 in 1 Quad Band for Arduino STM32 51 Microcontroller MCU
This 3 in 1 small module with various functions that sending voice and short message, browsing webpages and collecting GPS.
IPEX interface active antenna; Two-stage amplification, high gain, strong signal.
Support voice SMS GPRS, support GPS positioning.
Insert the SIM card and Arduino board, you can send voice and short message to other SIM cards.
User can browse webpage via GPRS after connecting to the LCD and get the GPS info of the module
Support Quad Band: 850MHz / 900MHz / 1800MHz / 1900MHZ

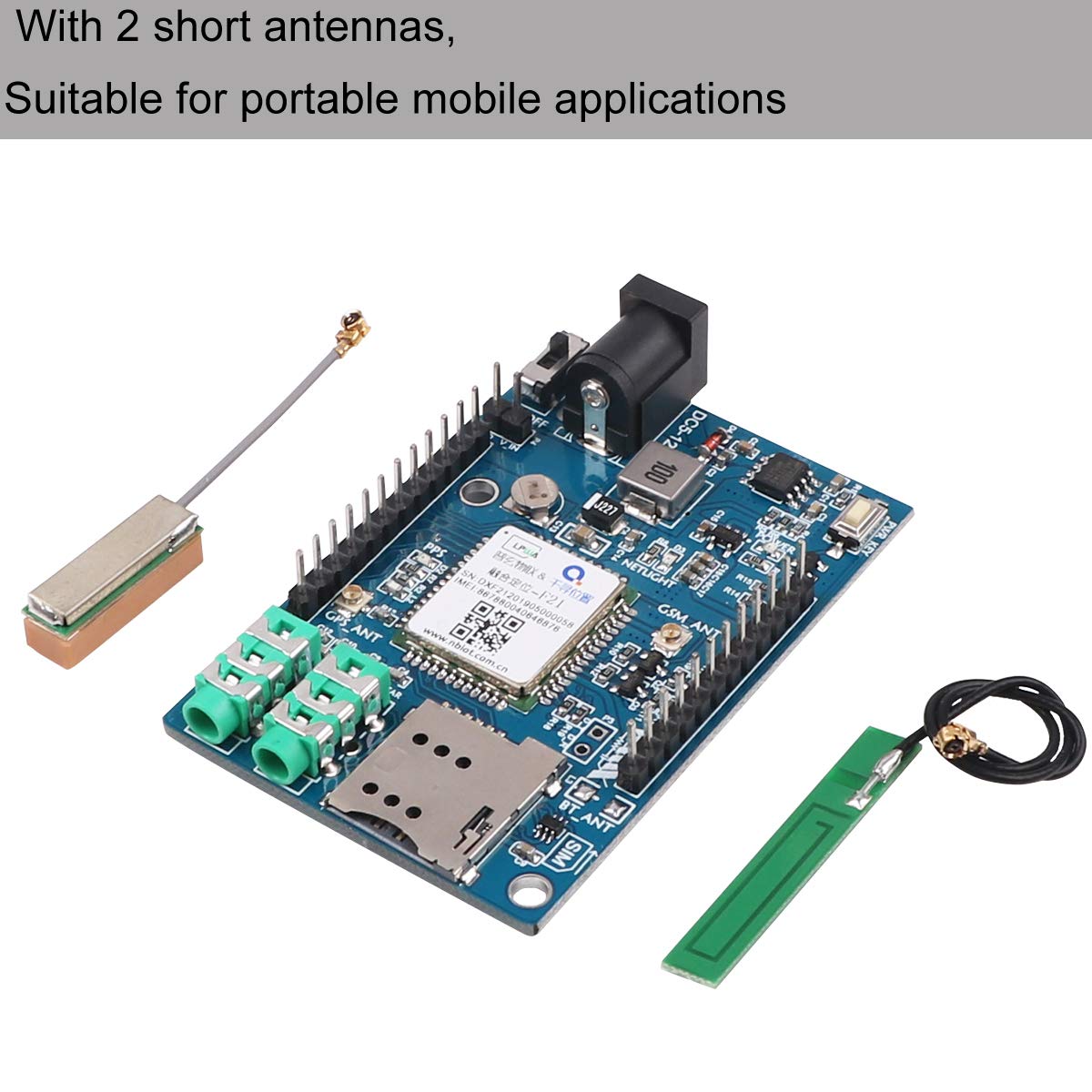

With 1pcs of 3m GPS antenna and 1pcs of 2m GSM/GPRS antenna which support more stronger and stable signal

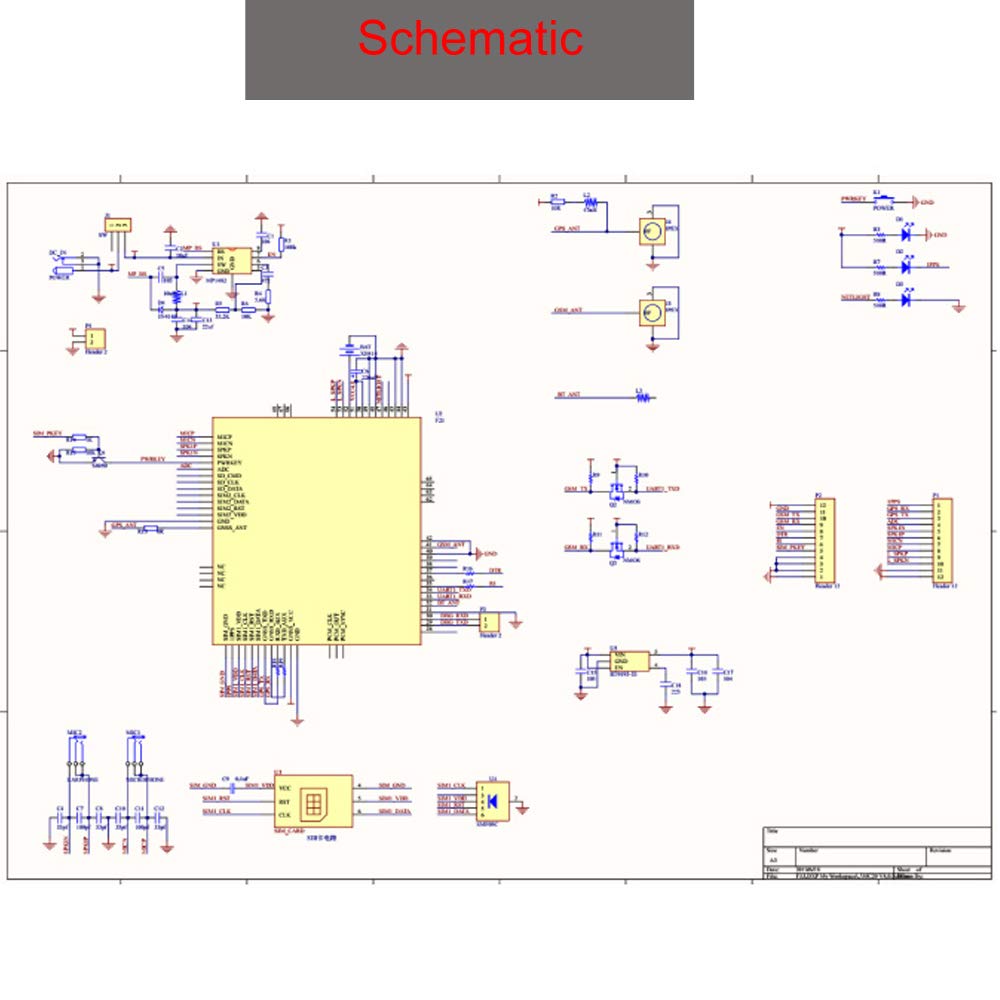

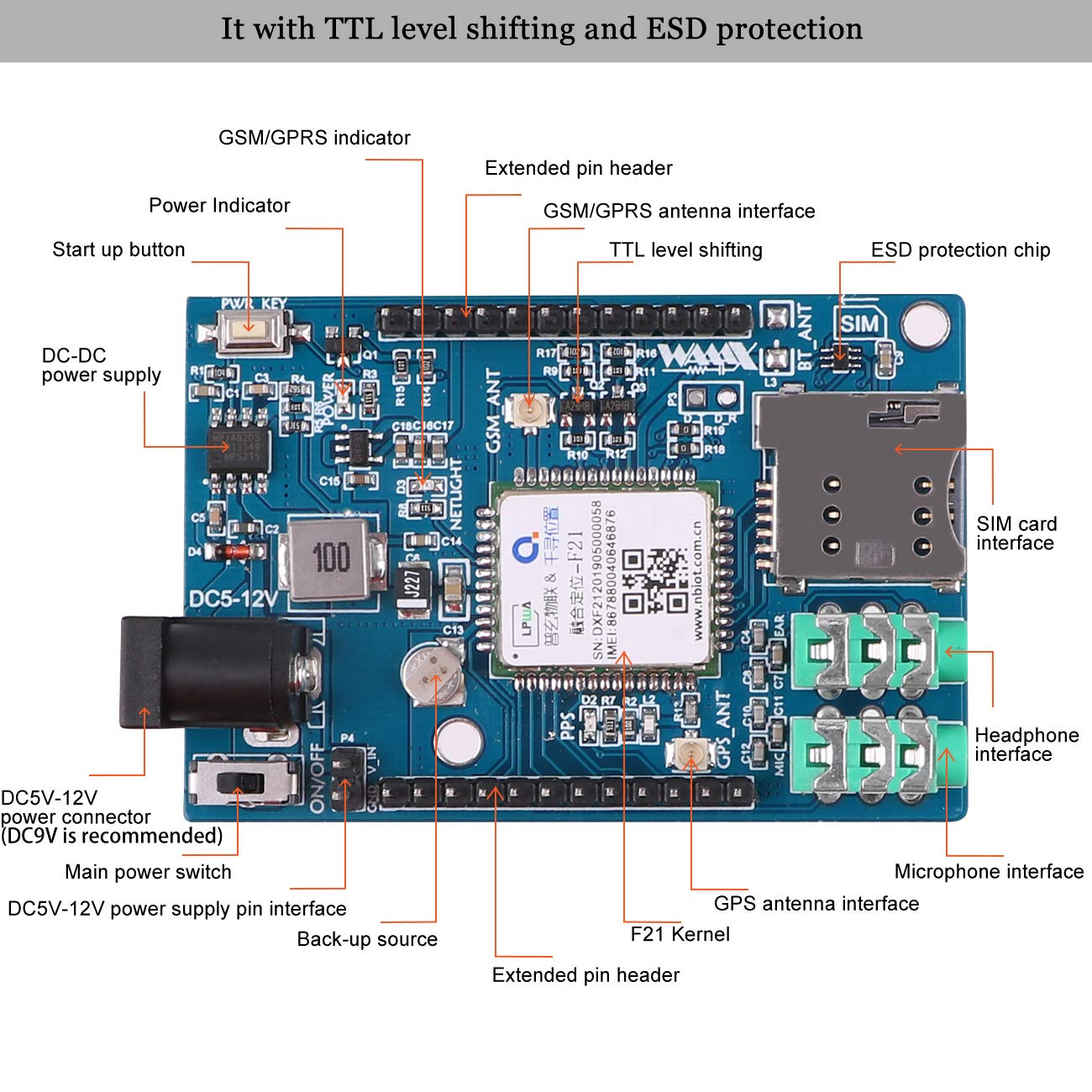

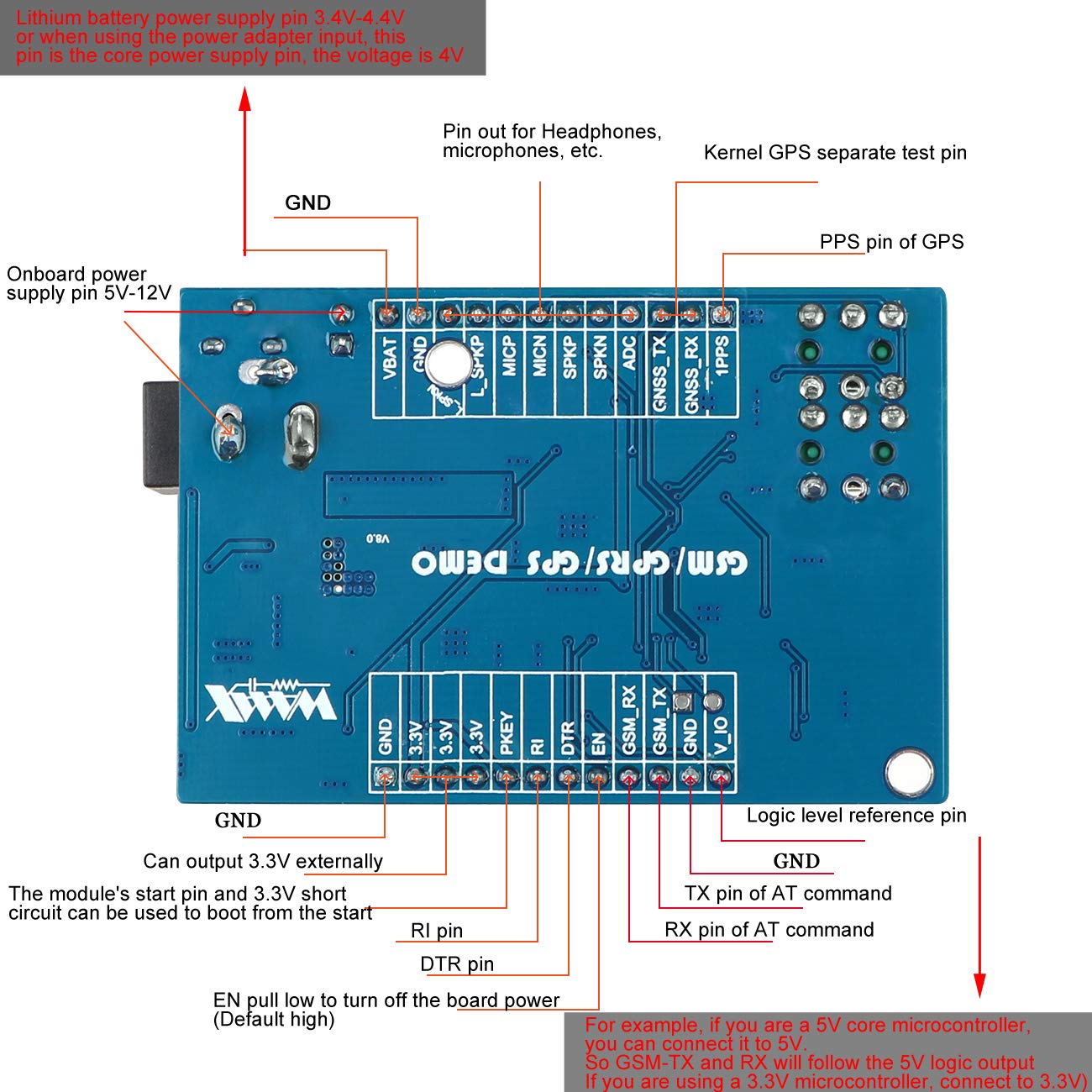

Detailed connection info has been provided as the picture shown. Download the code from drive:google.com/open?id=0ByLlBkJVmxooZmM2UjAyWmdlbW8.
1 * A7 GSM GPRS GPS Module
1 * IPEX GPS antenna
1 * IPEX GSM antenna
